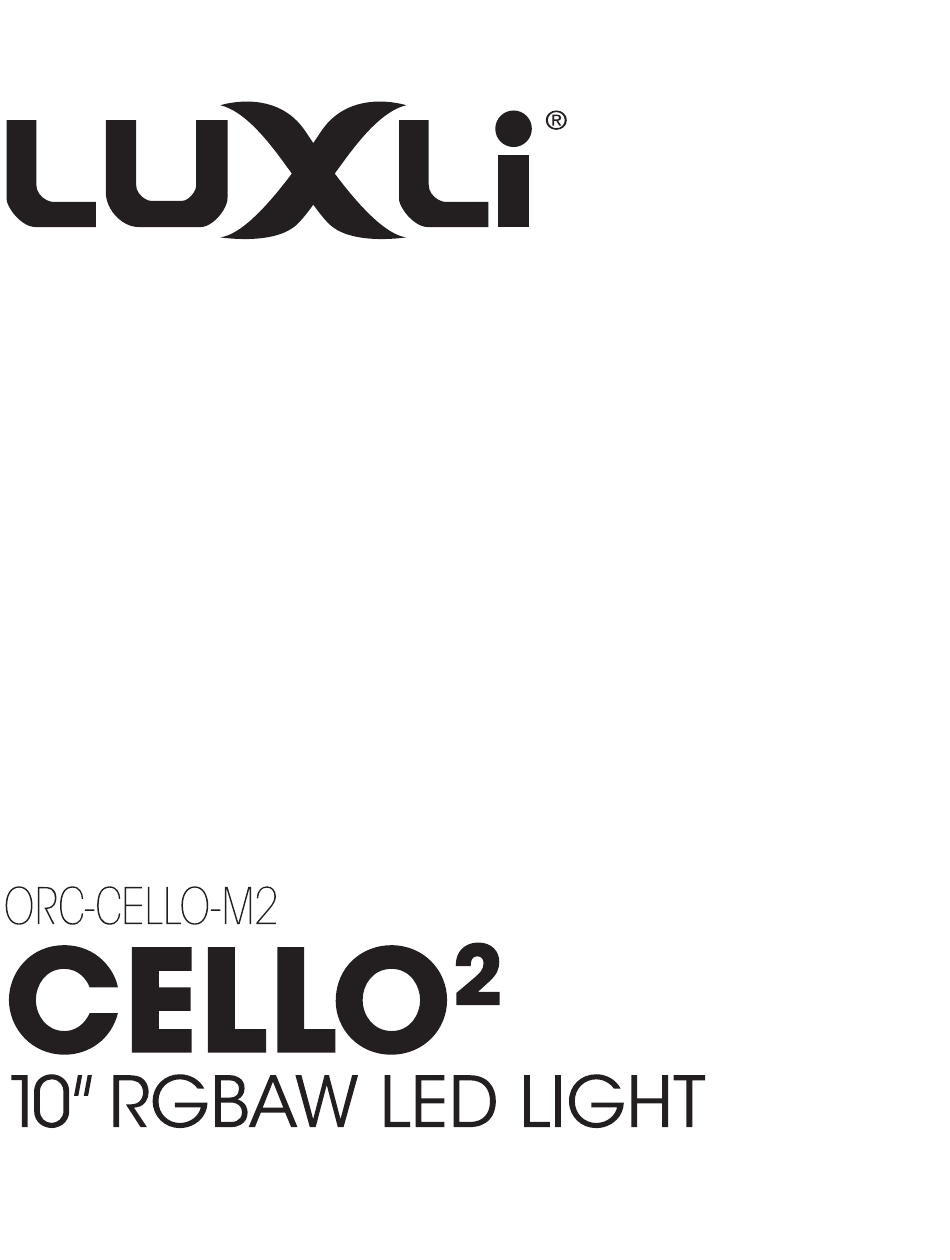

- Page 1 USER MANUAL...
- Page 2 The Cello² 10-inch multicolor LED light features a highly accurate and remarkably versatile RGBAW LED panel. The light is equipped with Bluetooth 5, which pairs with Luxli’s Composer mobile app from up to 100 feet away. Whether controlled via the app or the intuitive interface on the unit itself, the Cello²...
- Page 3 Overview Back: 1. Battery slot 4. Brightness dial 2. Battery release button 5. LCD screen 3. Adjustment dial CELLO PD 3.0 30W 7-15 V 12V, 15V Bottom: 6. Mode selector button 9. DC power input 7. Power button 10. USB Type-C™ port 8.
-
Page 4: Recharging The Battery
Powering the Cello² The Cello² runs on either DC power, a Sony NP-F battery, or via the USB Type-C port. DC Power Connect a power cord with a 2.1 × 5.5 mm DC barrel (available separately) to the DC input and an external power source such as a battery or AC adapter. -
Page 5: Operation Modes
Operation Modes CCT Mode Correlated Color Temperature (CCT) mode allows you to accurately adjust the color temperature from 2800 to 10,000 K. The ±Green feature allows you to set the green/magenta saturation level in 1% increments from 100% (full plus green) to -100% (full minus green). Adjustment dial •... - Page 6 HSL Mode Hue Saturation Level (HSL) mode lets you scroll through the entire color wheel and adjust the saturation level. Every color of the visible spectrum is available. In HSL mode, you can create accent lighting as well as dramatic lighting effects for photography and video. The LCD panel displays the position on the color wheel in degrees, along with a color bar indicator.
- Page 7 Filter Mode The Cello² is loaded with 150 digital gel filters. Filter mode allows you to adjust the color temperature setting in 50 K increments and apply any of the colored gels. This mode allows you to match the color temperature of your other lights, and then add a gel for a touch of color to a background or an accent light.
-
Page 8: Light Effects
Effects Mode The Cello² is loaded with 10 animated effects. Each effect has multiple settings and parameters that can be adjusted in the Edit menu. Press the top dial to enter or exit submenus. Rotate the top dial to scroll through submenus. Use bottom dial to adjust the value of theselected submenu. - Page 9 Description of the Effects CCT Chase A continuous look that changes between two preset color temperatures. Good for simulating a sunrise, sunset, or a change from cloudy to sunny weather in real time. Since the sequence loops, you can shoot multiple takes without reprogramming the light. Color Chase A continuous loop that moves through the color wheel between two selected colors.
-
Page 10: Warnings And Indicators
• Battery Empty: The LEDs will shut off. • Overheat: The LEDs will shut off, and brightness adjustment is disabled until the unit has cooled to a safe temperature. Important! If the unit frequently overheats, contact Luxli customer support. • Insufficient Voltage ∙... - Page 11 Using the Cello² with the Composer App The Luxli Composer app lets you unlock the potential of the Cello². Control Luxli lights individually or globally by forming groups. Save and recall custom presets, edit effects parameters, and create a timeline for your effects, like a DMX controller.
- Page 12 Updating the Firmware Firmware updates are now available through the Composer app. To update the firmware, follow these steps: 1. Open the Composer app, and tap the Look for lights icon. Select how you would like your device to connect to the Cello².
- Page 13 4. The firmware update screen will list available firmware versions. Tap on the version number of the newest update to select it. 5. Tap the Load firmware button to begin loading the new firmware version. 6. The Cello²’s power will shut off, and the LCD screen will indicate an update is in progress. The Composer app will show a status bar of the update in progress.
-
Page 14: Specifications
Specifications Light Fixture LED Type 5-Die RGBAW Beam Angle 72° Color Temperature 2800 to 10,000 K Color Accuracy Average CRI: 96, TLCI: 97 Cooling System Passive Dimming 0% to 100% (continuous) Display LED Count Housing Material Plastic Light Intensity @ 3 ft. 1500 lx Expected Lamp Life 50,000 hr. - Page 15 Remote Operation Remote Connection Type Bluetooth 5 Wireless Range 100 ft. (30.5 m) Power DC Input Power 7–15 V USB PD Input 12 V ⎓ 2.5 A, 15 V ⎓ 2 A Power Source AC adapter, external battery, USB Type-C wall charger Max Wattage 30 W...
-
Page 16: Troubleshooting
Troubleshooting If you encounter any problems, first try turning the device off and then on. If the problem persists, remove the battery for 15 seconds, and then restart. FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. -
Page 17: One-Year Limited Warranty
One-Year Limited Warranty This Luxli product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s discretion, of any product that fails during normal use of this product in its... - Page 18 luxlilight.com...
