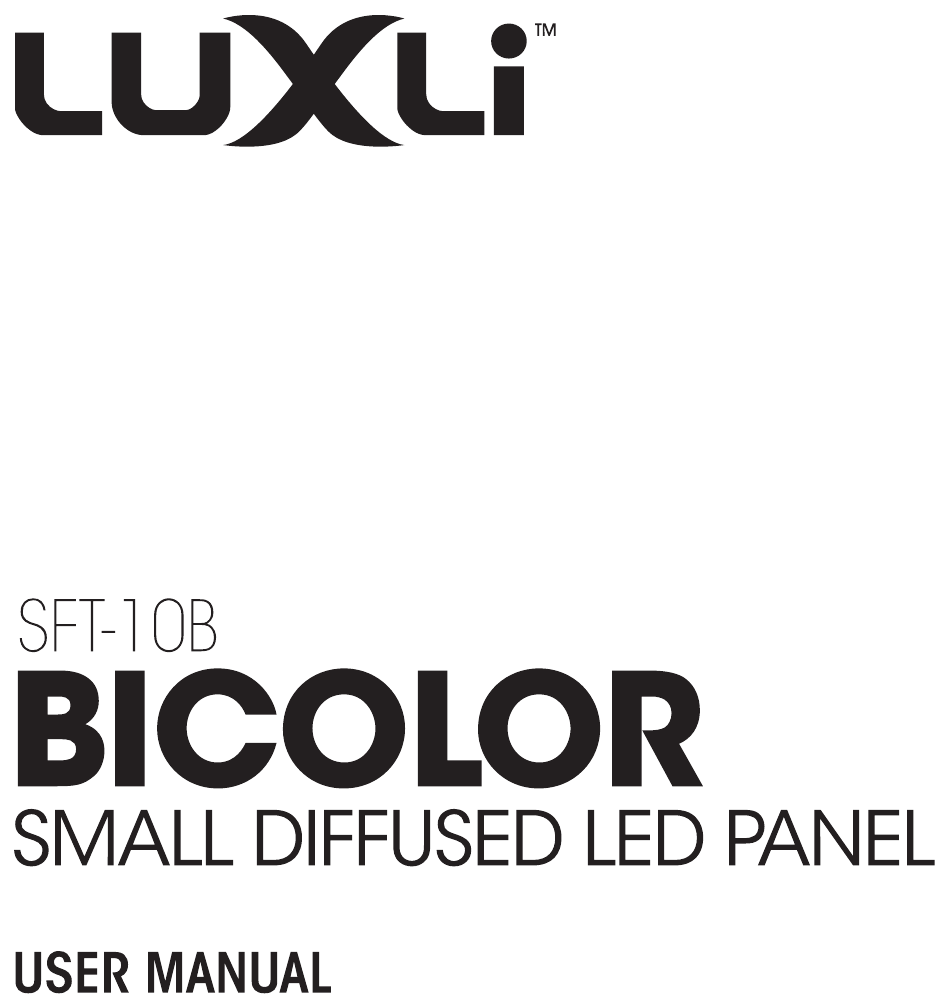

Luxli BICOLOR SFT-10B User Manual

Small diffused led panel

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the BICOLOR SFT-10B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Luxli BICOLOR SFT-10B

  • Page 2 Light as soft as a cloud. As part of Luxli’s Softi series, the 7" Bicolor LED Light provides soft, luminous light in a compact and lightweight package for flattering portraits. The integrated white diffusion panel results in clean, seamless illumination. With smooth adjustment knobs for brightness and color temperature adjustment between 3200–5600 K, the 7"...
  • Page 3: Specifications

    Specifications Light source 104 LEDs (52 × 3200 K and 52 × 5600 K) Power source Sony L-Series battery Dimensions (W × D × H) 4.7” × 0.8” × 6.8” (11.9 × 2 × 17.4 cm) Weight 7.8 oz. (222 g)
  • Page 4 Precautions • Do not attempt to disassemble, repair, or perform any unauthorized modifications on this device. • Do not handle with wet hands, immerse in liquids, or expose to water and rain. Electric shock or fire may result. • This device contains small parts which may pose a choking hazard. Keep out of reach of children.
  • Page 5 • Batteries are prone to leakage when fully discharged. To avoid damaging this product, be sure to remove batteries when leaving the product unattended. • Do not gaze at the LED panel for prolonged periods while the device is on. •...
  • Page 6 Overview Back 1. Color temperature dial 4. Mounting slot 2. Brightness dial 5. Power switch 3. Battery mount (Use Sony 6. Battery indicator L-Series battery type) 3200K 5600K...
  • Page 7 Detachable shoe mount Also included 1. Cold-shoe mounts • NP-F550 battery 2. Locking rings • Battery charger 3. Locking knob • User manual 4. 1/4"-20 female thread...
  • Page 8 Mounting the shoe 1. Loosen one locking ring on the cold shoe mount, and slide it into the slot at the bottom of the light unit. Tighten the locking ring firmly to secure the shoe in place. 2. Use the other end of the cold-shoe mount to secure the unit on a camera or light stand.
  • Page 9: Powering The Device

    Powering the device Mounting batteries Place the battery in the battery mount, aligning the conductor 3200K contacts of the battery with the 5600K metal prongs of the light unit. Lock it into place by sliding it leftward until it clicks. Checking the battery power While the device is powered on, hold the battery indicator button...
  • Page 10: One-Year Limited Warranty

    One-Year Limited Warranty This LUXLI product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be...
  • Page 11 To obtain warranty coverage, contact the Luxli Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Luxli along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
  • Page 12 www.luxlilight.com...
