Summary of Contents for Luxli ORC-CELLO-10-DK
- Page 1 USER MANUAL...

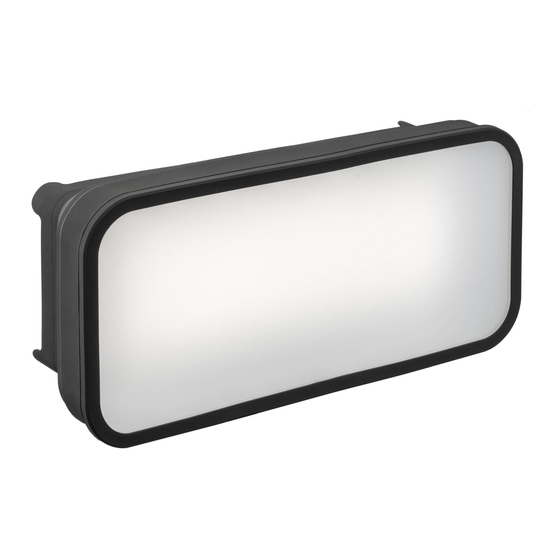

- Page 2 Thank you for choosing Luxli. The Luxli CELLO-10-DK diffuser is made specifically for Luxli’s Cello 10- inch RGBAW LED Light. It softens the harsh shadows from the Cello’s undiffused light, and it also eliminates the multiple shadows that are common in LED lighting.
- Page 3 Precautions • Please read and follow these instructions, and keep this manual in a safe place. • Keep this product away from water and flammable gases or liquids. • Clean this product with only a soft, dry cloth. • All images are for illustrative purposes only.
- Page 4 Overview 1. Diffuser frame 3. Heat dissipation vents 2. Diffusion filter 4. Corner tabs...
- Page 5 Using the Diffuser as a Snoot To use the diffuser as a snoot, remove the diffusion filter from the rubber frame. The resulting beam will not be as wide and will have a more defined edge. Note: When reinstalling the diffusion filter into the frame, make sure the filter’s textured side is facing in toward the light.
- Page 6 Attaching the Diffuser to the Cello 1. Extend the sides of the diffuser, and place it facedown on a flat surface.
- Page 7 2. Place the Cello down onto the frame. Make sure to position the Cello so the bottom of the unit matches the cutout side of the diffuser.
- Page 8 3. Lift each corner so each of the Cello’s corners are securely covered by the frame’s corner tabs. Make sure the edges of the frame wrap around the Cello to ensure a secure fit. Note: For best results, use the diffuser in the extended position.
-
Page 9: Specifications
Specifications Dimensions (H × W) 5.25 × 10.9 in. (13.3 × 27.7 cm) Filter Depth Extended: 2.2 in. (5.6 cm) Collapsed: 1.25 in. (3.2 cm) Weight 7.2 oz. (206 g) -
Page 10: One-Year Limited Warranty
One-Year Limited Warranty This LUXLI product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be... - Page 11 To obtain warranty coverage, contact the Luxli Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Luxli along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
- Page 12 luxlilight.com...
