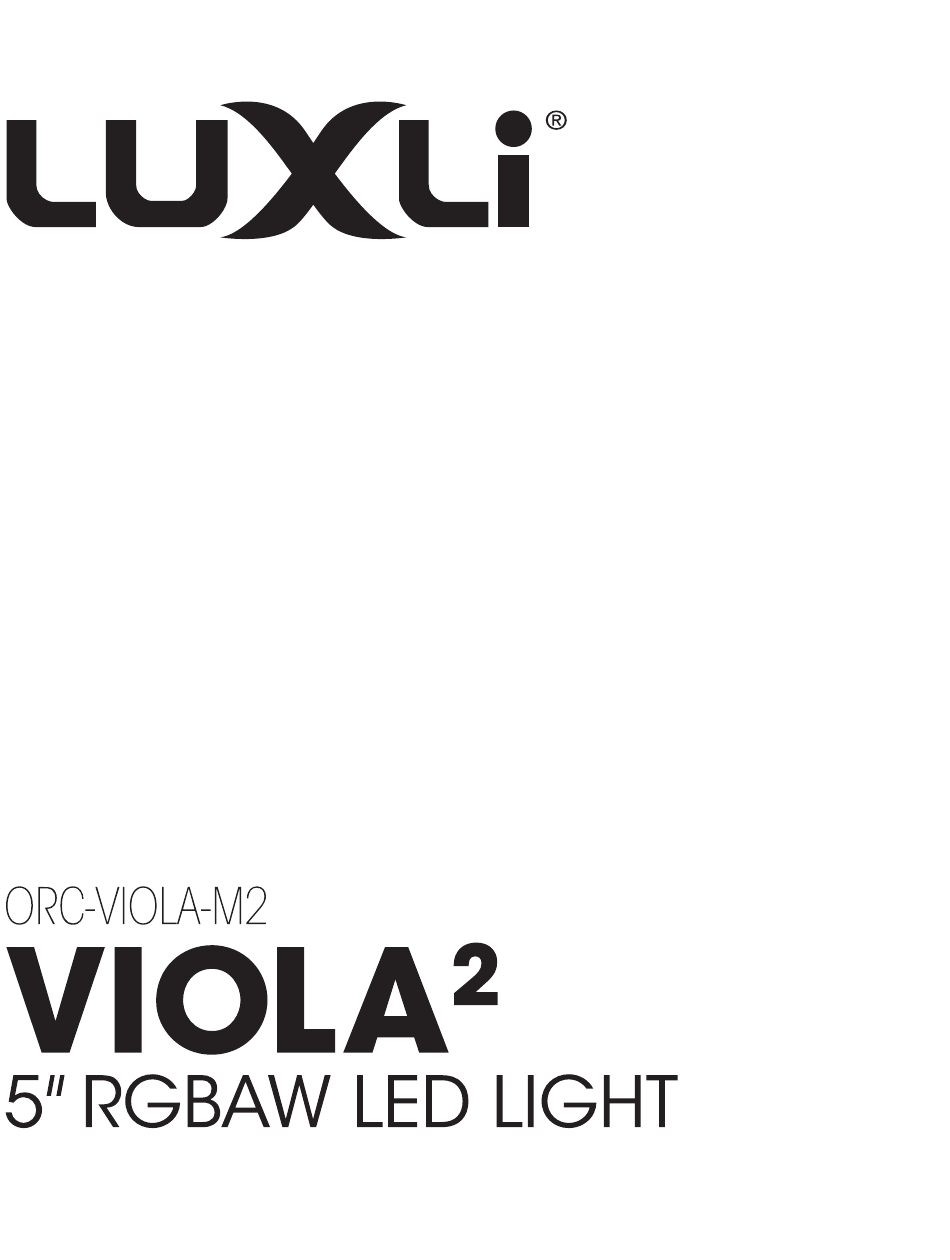

- Page 1 USER MANUAL...
- Page 2 Conduct an orchestra of lights. The Luxli Orchestra series can produce a dazzling symphony of light. Synchronize LED light units of all sizes, choose from millions of possible colors, apply lighting effects from four selectable modes, and control them instantly with the powerful Conductor mobile app.
- Page 3 Overview 1. 2.1 mm DC input 6. LCD panel 2. Micro-USB port for firmware updates 7. Power button (visit luxlilight.com for details) 8. Mode button 3. Battery slot Brightness dial 4. Battery release 10. Adjustment dial 5. 1/4-20 socket Also Included •...
-
Page 4: User Interface
User Interface Bluetooth indicator Battery indicator Brightness percentage Brightness dial • Scroll: Adjusts the brightness from 100% to 0%. • Press: Turns off the LED panel without powering down. - Page 5 CCT Mode Correlated color temperature (CCT) mode allows you to accurately adjust the color temperature from 3000 to 10,000K. CCT mode is effective for color matching the Viola to almost any light source. The color temperature and brightness can also be adjusted from the Controller app. Color temperature preset Color temperature Brightness dial...
- Page 6 Color Wheel Mode Color wheel mode lets you dial up every color of the visible spectrum by scrolling through the entire color wheel. In color wheel mode, you can create accent lighting as well as dramatic lighting effects for photography and video. Color wheel mode is also available on the Conductor app.
-
Page 7: Filter Mode
Filter Mode Filter mode allows you to apply colored gels to your current CCT setting. This mode allows you to match the color temperature of your other lights and then add a gel for a touch of color to the light. The Viola uses the setting from CCT mode to calculate the precise color temperature of the gel as it would appear on the actual light. - Page 8 Setting the White-Balance Color Temperature If you need a white-balance color temperature other than the presets, the Viola can be adjusted to a specific color temperature for filter mode. A specific white-balance color temperature can also be set with the Conductor app. To adjust the color temperature setting of filter mode, follow these steps: 1.
-
Page 9: Effects Mode
Effects Mode The Viola is preset with 10 animated special effects. Each effect can be edited in the Conductor app so you can control the variable settings of the selected effect. Play/stop indicator Brightness percentage Effect number and name 1. CCT chase Play Brightness dial •... - Page 10 +/- Green: Sets the green/magenta (tint) saturation level in 1% increments from +100% (green) to -100% (magenta). Time Unit: Select seconds or minutes for the time loop. Time/Loop: Select how many seconds or minutes the loop will last (1 to 160). Color Chase A continuous loop that moves through the color wheel between two selected colors.
- Page 11 Fire Simulates the light of a candle, camp fire, or bonfire in various wind conditions. Fire Type: Select candle, campfire, or bonfire. Wind Type: Select no wind, breeze, windy, or storm. Fireworks Simulates the light from fireworks. Colors and timing of each flash are random. Explosions/Minute: Sets how many flashes will occur per minute (1 to 50).
- Page 12 Pulse Offers a steady pulse at a programmable rate. Similar to the Strobe special effect (below), but the light fades on and off. Hue: Selects the light color (0° to 360°). Saturation: Determines the color intensity from 100% (full color) to 0% (white light). Pulses/Minute: Sets how many times the light will pulse each minute (1 to 200).
-
Page 13: Updating The Firmware
Bluetooth Status Indicators Bluetooth Status Indicators Disabled Searching Connected The Viola² starts up in Bluetooth search mode until it is paired with a Bluetooth device. Once the device is disconnected, the Viola² returns to search mode. To disable Bluetooth, press and hold the mode select button for 3 seconds until you see the Bluetooth disabled icon. -
Page 14: Specifications
Specifications Light Fixture Beam Angle 72° Color Temperature 3000 to 10,000K Color Accuracy Standard CRI 97 at 3200K CRI 96 at 4300K CRI 96 at 5600K CRI 96 at 6400K CRI 95 at 7200K CRI 94 at 10,000K Cooling System Passive Dimming Yes, 0% to 100% (continuous) -
Page 15: Troubleshooting
Mounting Fixture Mount 1/4-20 socket Remote Operation Remote Control Type Bluetooth 4.0 LE Wireless Range 30 ft. (9.1 m) Power DC Input Power 7–15 V, 2 A Power Source AC adapter, external battery Max Power Consumption 17 W Troubleshooting • If you encounter any problems, first try turning the device off and then on. •... -
Page 16: Fcc Compliance Statement
FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 17: One-Year Limited Warranty
One-Year Limited Warranty This Luxli product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s discretion, of any product that fails during normal use of this product in its... - Page 18 www.luxlilight.com...
