Summary of Contents for Luxli Timpan-1x1

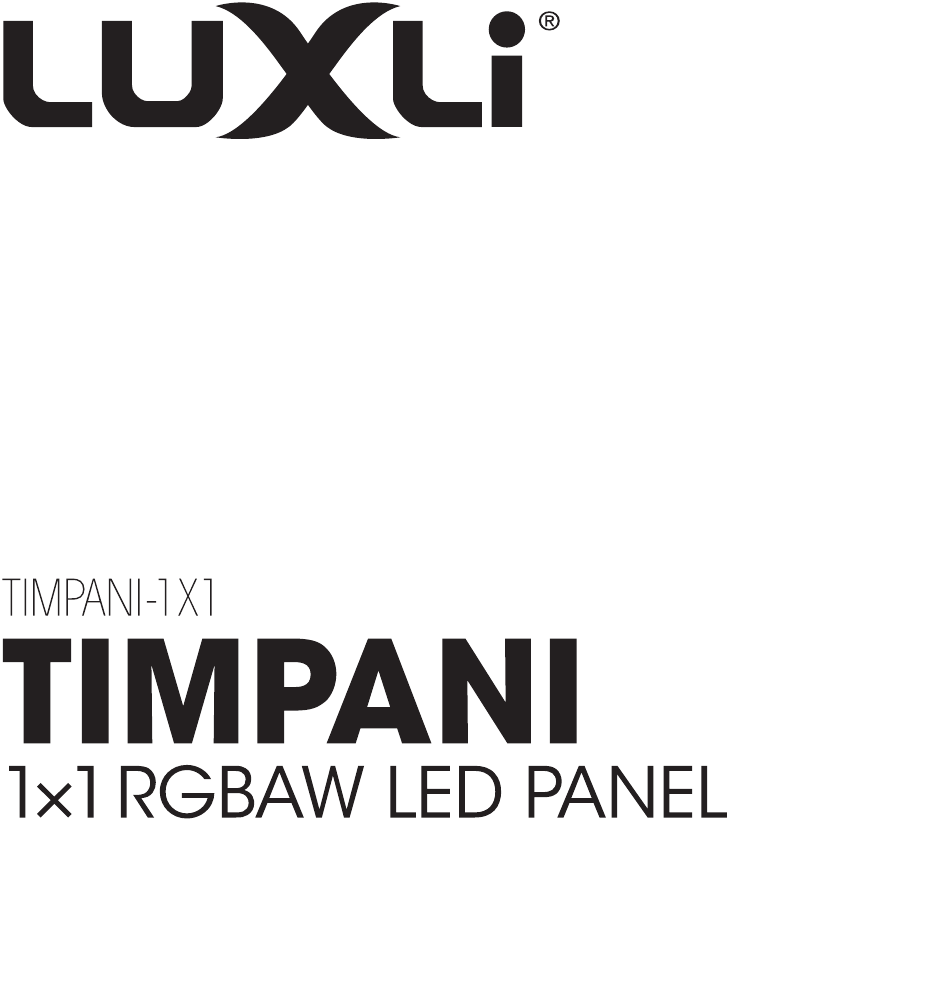

  • Page 1 QUICKSTART GUIDE...
  • Page 2 Conduct an orchestra of lights. The Luxli Orchestra series can produce a dazzling symphony of light. Synchronize LED light units of all sizes, choose from millions of possible colors, apply lighting effects from four selectable modes, and control them instantly with the powerful Conductor mobile app.

  • Page 3: Fcc Compliance Statement

    FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 Overview...
  • Page 5 Back: 1. Barndoor hook 9. Mode selector 2. Battery slot (use V-mount batteries) 10. 5/8 in. receiver 3. Battery release button 11. LCD screen 4. XLR power cable 12. Function buttons 5. Power input 13. Adjustment dial 6. Dimmer 14. DMX out 7.

  • Page 6: User Interface

    User Interface Mode Selector Press the mode selector to cycle through the four operating modes: CCT, RGB, Filter, and Special Effects. Brightness dial In all operation modes, the brightness dial adjusts the brightness from 100% to 0% in 1% increments. Function Buttons The function buttons access the screen functions that are indicated next to the button.
  • Page 7 CCT Mode CCT Screen Adjusts the color temperature in 50K increments from 2800 to 10,000 K. TINT 3900K Tint (±Green) Screen Sets the green/magenta saturation level in 1% 3900K increments from 100% (full plus green) to -100% (full minus green). + - GREEN Press the CCT button to exit the ±Green submenu and return to CCT mode.
  • Page 8 RGB Mode Hue Screen Adjusts the hue from 0° to 360° of the color wheel. The crosshair icon moves horizontally to represent the location of the hue on the color wheel. Saturation Screen Controls the saturation of the hue from 100% to 0% in 1% increments.

  • Page 9: Filter Mode

    Filter Mode Filter Screen Scrolls through the 150 Lee filters. 3900K Rose Purple Medium Purple Mauve Bright Pink Rose Pink Smokey Pink Scarlet S. Rose Pink CCT Screen Adjusts the white-balance color temperature 3900K without leaving filter mode. The LCD displays the Rose Purple current filter number.
  • Page 10 Special Effect Mode The Timpani is preset with 10 animated special effects. Special Effects mode allows you to control all the variable parameters of each effect. Special Effect Screen Select one of ten preprogrammed effects by scrolling down the list and pressing the play button . Strobe Pressing the stop button stops the effect.
  • Page 11 Main Menu Press the function button for the main menu. MAIN MENU The main menu can be accessed in all operating Presets modes. Bluetooth Use the adjustment dial to choose a menu, and About SELECT press the select button to enter the menu. BACK The Presets Menu To save settings to a preset, do the following:...
  • Page 12 The DMX Menu The Timpani offers 512 addresses. To set the DMX address: 1. Scroll to the DMX Address menu with the DMX Settings adjustment dial, and press the select button. DMX Address DMX Mode CCT 16 bit 2. Use the adjustment dial to select an address DMX Endian Little endian from 0 to 511, and press Save.
  • Page 13 The Bluetooth Menu Access the Bluetooth menu to turn Bluetooth on Bluetooth state or off. CONFIRM BACK The About Menu The About menu displays the Timpani’s serial About number and firmware version. Serial number 12FFB0006 Firmware version 1.0.0 BACK...

  • Page 14: Upgrade Firmware

    Upgrade Firmware Information about firmware updates and version history is available at luxlilight.com. To update the Timpani’s firmware, follow these steps: 1. With the Timpani powered off, press and hold the top function button and then press the power button. The Timpani will open the Bootloader running screen. 2.

  • Page 15: One-Year Limited Warranty

    One-Year Limited Warranty This LUXLI product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s...
  • Page 16 luxlilight.com...
