Luxli ORC-TAIKO-2x1 Quick Start Manual

Taiko 2x1 rgbaw led light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Firmware Version 1.0.0
QUICKSTART GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ORC-TAIKO-2x1 and is the answer not in the manual?

Questions and answers

Related Manuals for Luxli ORC-TAIKO-2x1

Summary of Contents for Luxli ORC-TAIKO-2x1

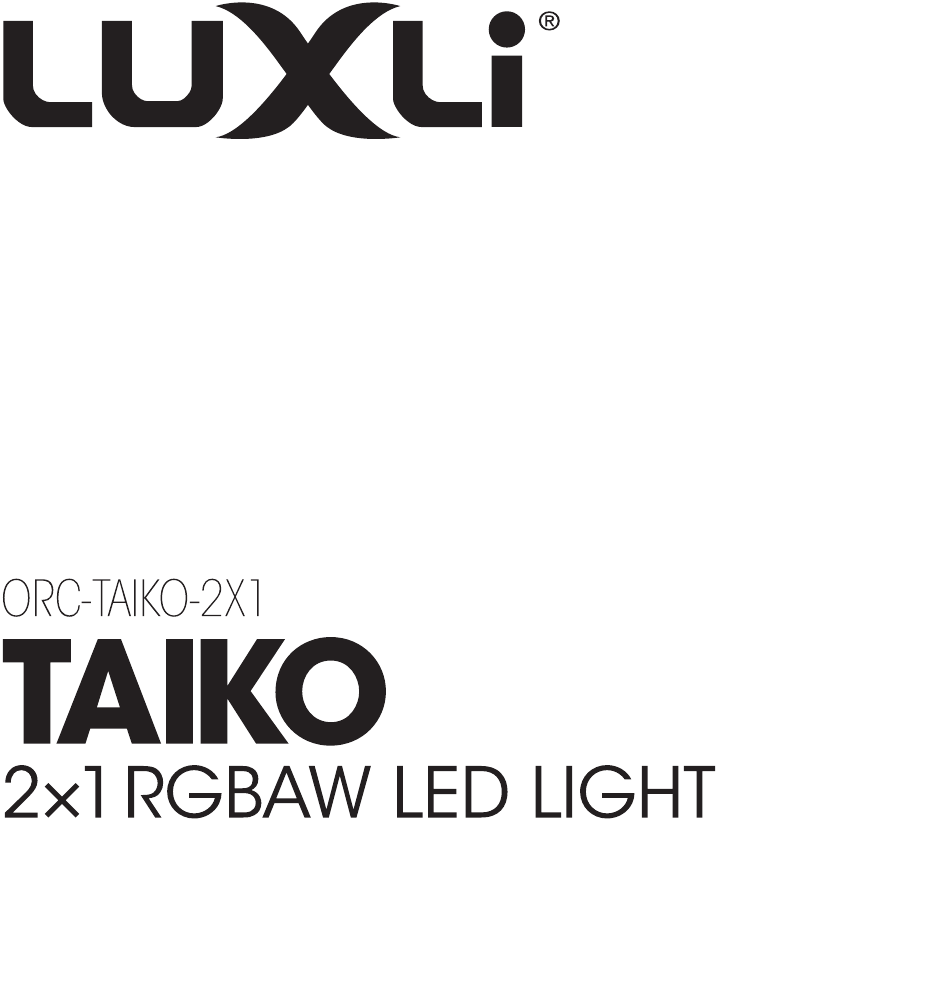

  • Page 1 Firmware Version 1.0.0 QUICKSTART GUIDE...
  • Page 2 Conduct an orchestra of lights. The Luxli Orchestra series can produce a dazzling symphony of light. Synchronize LED light units of all sizes, choose from millions of possible colors, apply lighting effects from four selectable modes, and control them instantly with the powerful Composer mobile app.
  • Page 3 Precautions • Please read and follow these instructions, and keep this manual in a safe place. • Keep this product away from water and flammable gases or liquids. • Use only the correct, recommended voltage. • Do not attempt to disassemble or repair this product. •...
  • Page 4 Overview Back: 1. V-Mount battery plate 4. 5/8 in. receiver 2. Power input 5. Locking handle 3. Micro-USB port for firmware updates 6. 5-pin DMX In/Out (visit luxlilight.com for details) 7. Tilt lock handle...
  • Page 5 +/- GREEN 3900K MODE Control Panel: 8. Brightness dial 11. LCD screen 9. Power button 12. Function buttons 10. Mode selector 13. Adjustment dial Top: 14. Diffuser flap 15. Thumb tab 16. Barndoor slot 17. Diffuser slot...
  • Page 6 Setting Up the Taiko Attaching the Tilt Lock Handle The tilt lock handle can be attached to either side of the Taiko. To attach the handle, follow these steps: 1. Place the Taiko and yoke down on a flat surface. 2.
  • Page 7 Reversing the Receiver’s Locking Handle For mounting and handling convenience, you can change the side the locking handle is on: 1. Remove the Taiko from the light stand, and place it down on a flat surface. 2. Use a hex key to unscrew the center and outer mounting screws.

  • Page 8: User Interface

    User Interface Mode Selector Press the mode selector to cycle through the four operating modes: CCT, RGB, Filter, and Special Effects. Brightness Dial In all operation modes, the Brightness dial adjusts the brightness from 100% to 0% in 1% increments. In all operation modes, press the Brightness dial to toggle between the set brightness and 0%.
  • Page 9 CCT Mode CCT Adjustment screen Use the Adjustment dial to set a color temperature between 2800 and 10,000 K in 50 K increments. +/- GREEN 3900K Tint (+/− Green) Screen Tap the Function button next to “+/− Green” to 3900K access the Tint adjustment screen.
  • Page 10 RGB Mode Hue Adjustment Use the adjustment dial to set the hue from 0° to 360° on the color wheel. The crosshair icon moves horizontally to represent the location of the hue on the color wheel. Saturation Adjustment Tap the function button next to “SAT” to adjust saturation levels.

  • Page 11: Filter Mode

    Filter Mode Filter Screen Use the adjustment dial to scroll through the 150 3900 digital gel filters. Medium Purple Mauve Important! The selected filter is active only in Filter Bright Pink mode. FolliesPink Rose Pink Smokey Pink Scarlet S. Rose Pink Bright Rose CCT Adjustment Adjusts the base color temperature without...
  • Page 12 Special Effect Mode The Taiko is loaded with 10 animated special effects. Each effect has multiple parameters that can be adjusted in the edit menu. Special Effect Screen Use the adjustment dial to select one of ten preprogrammed effects by scrolling down the list CCT chase and pressing the Play button .
  • Page 13 Main Menu Press the function button for the main menu. Main menu The main menu can be accessed in all operating Presets modes. Bluetooth About SELECT BACK The Presets Menu To save settings to a preset, do the following: Presets Save Preset A 1.
  • Page 14 The DMX Menu The Taiko offers 512 addresses. To set the DMX DMX settings address: DMX Master DMX Address 1. Scroll to the DMX Address menu with the DMX Mode CCT 8 bit Adjustment dial, and press the Select button. SELECT 2.
  • Page 15 The Bluetooth Menu Access the Bluetooth menu to turn Bluetooth on Bluetooth state or off. CONFIRM BACK The About Menu The About menu displays the Taiko’s serial number About and firmware version. Serial number 12FFB0006 Firmware version 1.0.0 BACK...

  • Page 16: Specifications

    Specifications Light panel RGBAW LED Beam angle 76° (without diffuser) Bluetooth version 4.2 LE Battery mount V-mount (×2) Battery requirements 14.4–14.8 V, 10 A minimum per battery DC power input 4-pin XLR 24–36 V, 10 A Max power consumption 250 W Dimensions (W ×...

  • Page 17: Troubleshooting

    Troubleshooting • If you encounter any problems, first try turning the device off and then on. • If the problem persists, remove the batteries or power supply for 15 seconds, and then restart. • Go to luxlilight.com to make sure you have the most recent firmware update. If a new firmware version is available, follow the instructions on how to download it to your light.

  • Page 18: Fcc Compliance Statement

    FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference received, including interference that may cause undesired operation.

  • Page 19: One-Year Limited Warranty

    One-Year Limited Warranty This LUXLI product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s...
  • Page 20 luxlilight.com...
