gofanco Matrix44HD2-BSC User Manual

4x4 hdmi matrix 4k60hz bsc

Advertisement

Quick Links

4x4 HDMI Matrix
4K60Hz BSC
User's Guide
P/N:Matrix44HD2-BSC
G4-0150A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Matrix44HD2-BSC and is the answer not in the manual?

Questions and answers

Summary of Contents for gofanco Matrix44HD2-BSC

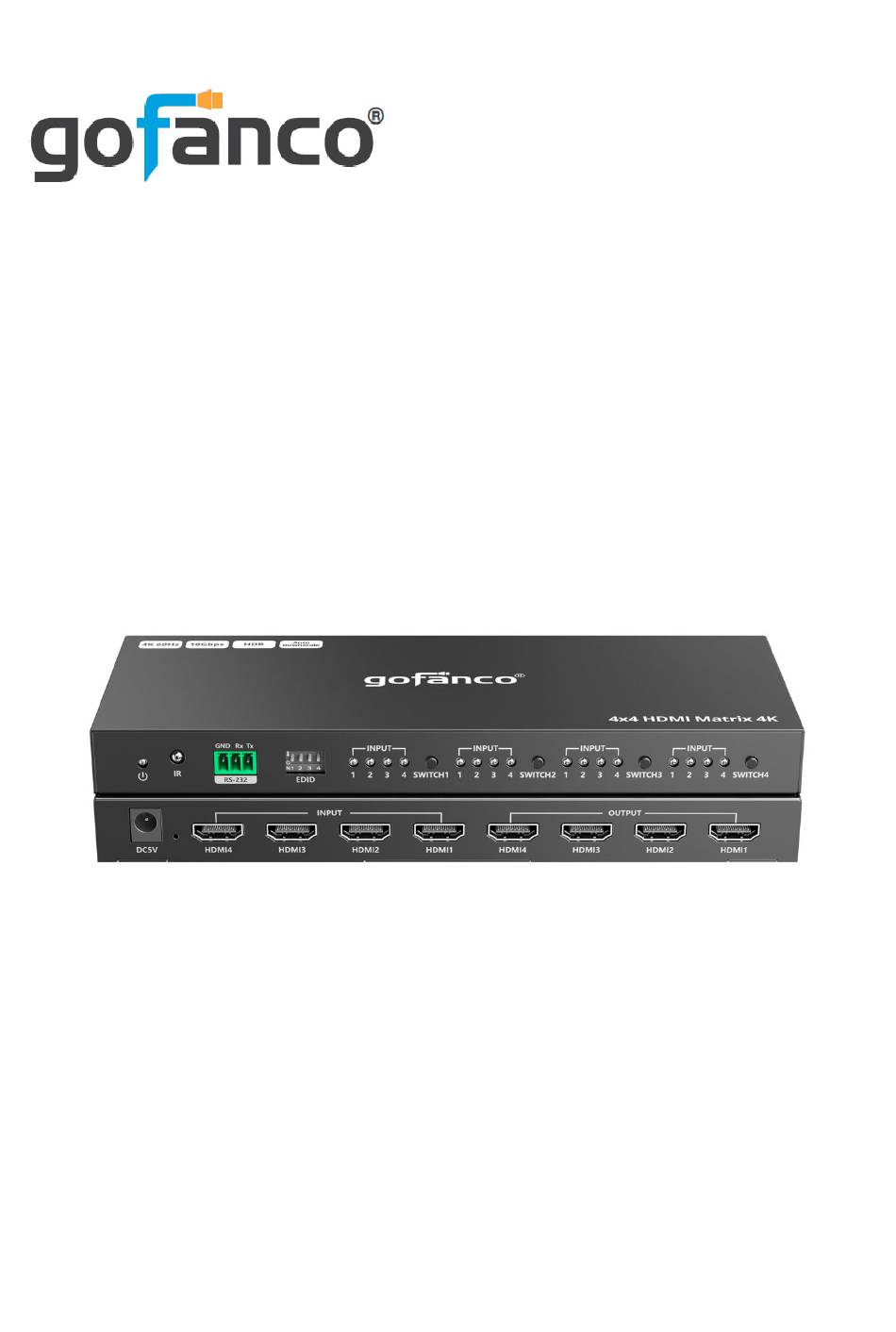

  • Page 1 4x4 HDMI Matrix 4K60Hz BSC User's Guide P/N:Matrix44HD2-BSC G4-0150A...
  • Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
  • Page 3 Introduction The 4x4 HDMI Matrix 4K60Hz BSC allows you to connect up to four HDMI source devices and independently switch any source to any of the four HDMI displays. Features • Supports up to 4K@60Hz YUV 4:4:4 8-bit, HDR, HDCP 2.2/1.4, 18Gbps •...
  • Page 4 Product Layout Figure 1: Product Layout Power LED: On when the matrix is powered on IR Window: Receives IR signals from the included remote control RS232: For PC RS-232 control EDID Dip Switch: Selects display resolution Input LED 1-4: Displays the active HDMI input for the respective HDMI output port Input Selection Button 1-4: Press to select the HDMI input to display on the respective HDMI...
  • Page 5 Hardware Installation Power off all devices including your HDMI source(s) and HDMI display(s). Connect your HDMI source devices to the Matrix's HDMI In connectors with HDMI cables (HDMI cables not included). Connect your HDMI displays to the Matrix's HDMI Out connectors with HDMI cables (HDMI cables not included).
  • Page 6 Remote Control Users can control the Matrix 4K using the included IR remote control. Point the remote control towards the built-in IR receiver window located on the front panel. Back Button Next Button (Output 1-4) (Output 1-4) Output 1: Input Select Buttons (1-4) Output 2: Input Select Buttons (1-4) Output 3: Input Select Buttons (1-4) Output 4: Input Select Buttons (1-4)
  • Page 7 RS232 Control Connect the 4x4 Matrix to a PC using an RS232 cable (cable not included). COM Port Setting Baud Rate: 9600 bps Data Bits: 8 Stop Bits: 1 Parity: None RS232 Command List Use any RS232 terminal program of your choice, such as Hyperterminal for RS232 control.
  • Page 8 RS232 Command List Continued Application Diagram The application diagram shows the most typical input and output devices used with the 4x4 HDMI Matrix 4K60Hz BSC. Figure 2: Application Diagram...
  • Page 9 EDID Management Allows you to choose the output EDID. There are 16 built-in EDIDs. DIP Switch Position 0 = Down 1 = Up EDID Table • Note: 4K to 1080p auto downscaling on any two outputs to support mixed 4K & 1080p displays...
  • Page 10: Specifications

    Specifications...
  • Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products. We reserve the right to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
  • Page 12 Thank you for choosing gofanco www.gofanco.com...
