PRO-MatrixWall44
4x4 HDMI Matrix with Video Wall Function
User's Guide
Made in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-MatrixWall44 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for gofanco PRO-MatrixWall44

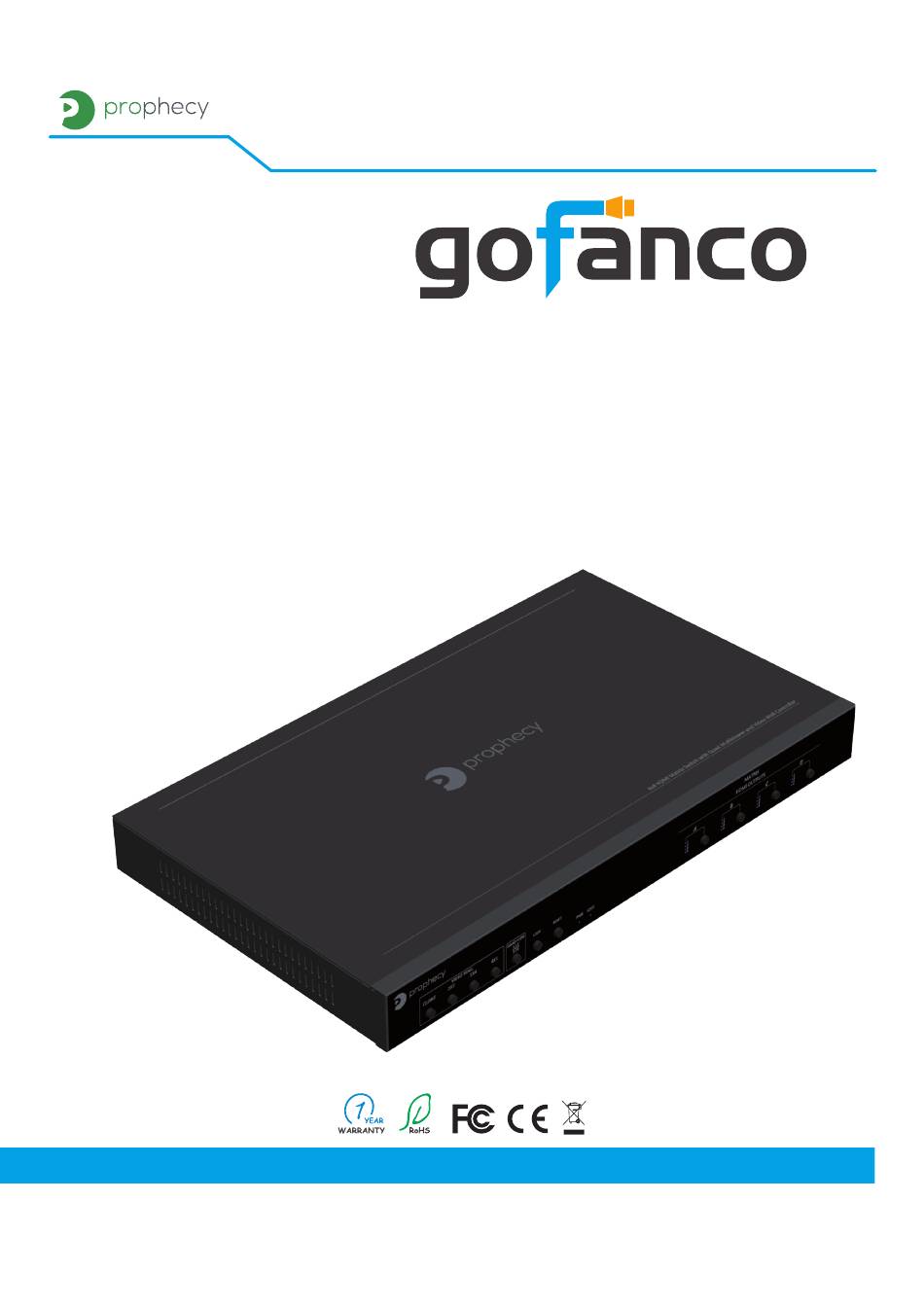

  • Page 1 ® PRO-MatrixWall44 4x4 HDMI Matrix with Video Wall Function User‘s Guide Made in Taiwan...
  • Page 2 ® PRO-MatrixWall44 Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
  • Page 3: Table Of Contents

    However, like all electronic equipments, the PRO-MatrixWall44 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 4: Introduction

    ® PRO-MatrixWall44 2. Introduction The PRO-MatrixWall44 4x4 HDMI Matrix with Video Wall Function provides the most flexible and cost effective solution in the market. The new PRO-Ma- trixWall44 can be used as a conventional matrix switch, routing up to 4 diffe- rent HDMI video sources to any monitor independently or be used as videowall processor, splitting a chosen image from any of the 4 sources to 4 displays.
  • Page 5: Specification

    15 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 5. Package Contents • 1x PRO-MatrixWall44 • 1x Rack-mounting ear set • 1x DC 12V 5A • 1x User Manual • 1x Installation software CD...
  • Page 6: Hardware Installation

    • Do not twist or pull the cable ends by force. Hardware Installation PRO-MatrixWall44 as master 1. Connect all sources to HDMI Inputs on the 4x4 HDMI Matrix PRO-MatrixWall44. 2. Connect all displays to HDMI Outputs on the 4x4 HDMI Matrix PRO-Mat- rixWall44.
  • Page 7: Panel Description

    ® PRO-MatrixWall44 8. Panel Description Front Panel 1. Control Buttons: Button 1 – Fast switch to 1x1 Button 2 – Fast switch to 2x2 Button 3 – Fast switch to 1x4 Button 4 – Fast switch to 4x1 Button 5 – Fast switch to Quad view mode Button 6 –...
  • Page 8: Operation Approach

    9. Operation Approach Software Operation System Requirement and Precautions 1. When powering off the PRO-MatrixWall44, please stay unpowered at least 5 to 10 seconds to allow power capacitors to discharge. 2. The PRO-MatrixWall44 provides software control program which runs under Microsoft Windows XP, 7, 8, 10 through RS-232 serial control.
  • Page 9 ® PRO-MatrixWall44 After the software control setting is accomplished, it will enter directly to the control interface...
  • Page 10 ® PRO-MatrixWall44 Control Interface 1. Connection Status: Show the connect information Show the connect information and status. If you use USB control Mode to connect device, the graph is . For IP control, the graph of Ethernet 2. Matrix You can assign arbitrary video source and switch quad view mode here.
  • Page 11 ® PRO-MatrixWall44 Step 2: output setting In here, it has three modes can set up the output TV resolution, positi- on, size and split screen. The details of different mode are description in step 2-1, 2-2 and 2-3. *Note that when you want to change another mode, you need to back to the step 2 to change.
  • Page 12 ® PRO-MatrixWall44 Step 2-3: custom define In Custom define mode, you can define how to cut in both directions and the part you want to show on output TV. If you want to understand or esti- mate which part you may select, you can select the Grid button to show grid on the graph.
  • Page 13 ® PRO-MatrixWall44 4. EDID (Extended Display Identification Data) Learn EDID from the default • Select Default EDID (1-6 default EDID). • Click button to learn default EDID.
  • Page 14 ® PRO-MatrixWall44 Learn EDID from Display • Select the output. • Select the input. • Click button to learn display EDID to input. Learn EDID from File • Select the input. • Click button to select the EDID file and write it into input.
  • Page 15 ® PRO-MatrixWall44 5. Advanced Setting Firmware Update Before you start to update, please make sure you have secured the connection between your computer COM port and the device • Control MCU Firmware Update 1. Click the button to select the file which you want to write into device 2.
  • Page 16 ® PRO-MatrixWall44 MISC You can change the default diagram (TV Wall diagram) on this software. *The file suffix of picture should be .bmp. • Click button to select the graph. • After loading the graph step, please click button to write this graph into device.
  • Page 17 ® PRO-MatrixWall44 7. Info Read the software and firmware version. 8. Refresh When you click this button, it can refresh the device status. If you want to use other mode to reconnect the device. You can click button to update the control connection. A “ReConnectForm” window will pop up for...
  • Page 18: Edid Learning

    ® PRO-MatrixWall44 10. EDID Learning The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI sources and displays may have various level of capability in...
  • Page 19 The SELLER will NOT be liable for direct, indi- rect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the PRO-MatrixWall44 fea- tures and specifications is subject to change without further notice. Disclaimer The product name and brand name may be registered trademarks of related manufacturers.
  • Page 20 ® Thank you for choosing gofanco www.gofanco.com Jun, 2019 Ver. A Copyright © by gofanco, LLC. All rights reserved.
