Summary of Contents for gofanco Matrix44

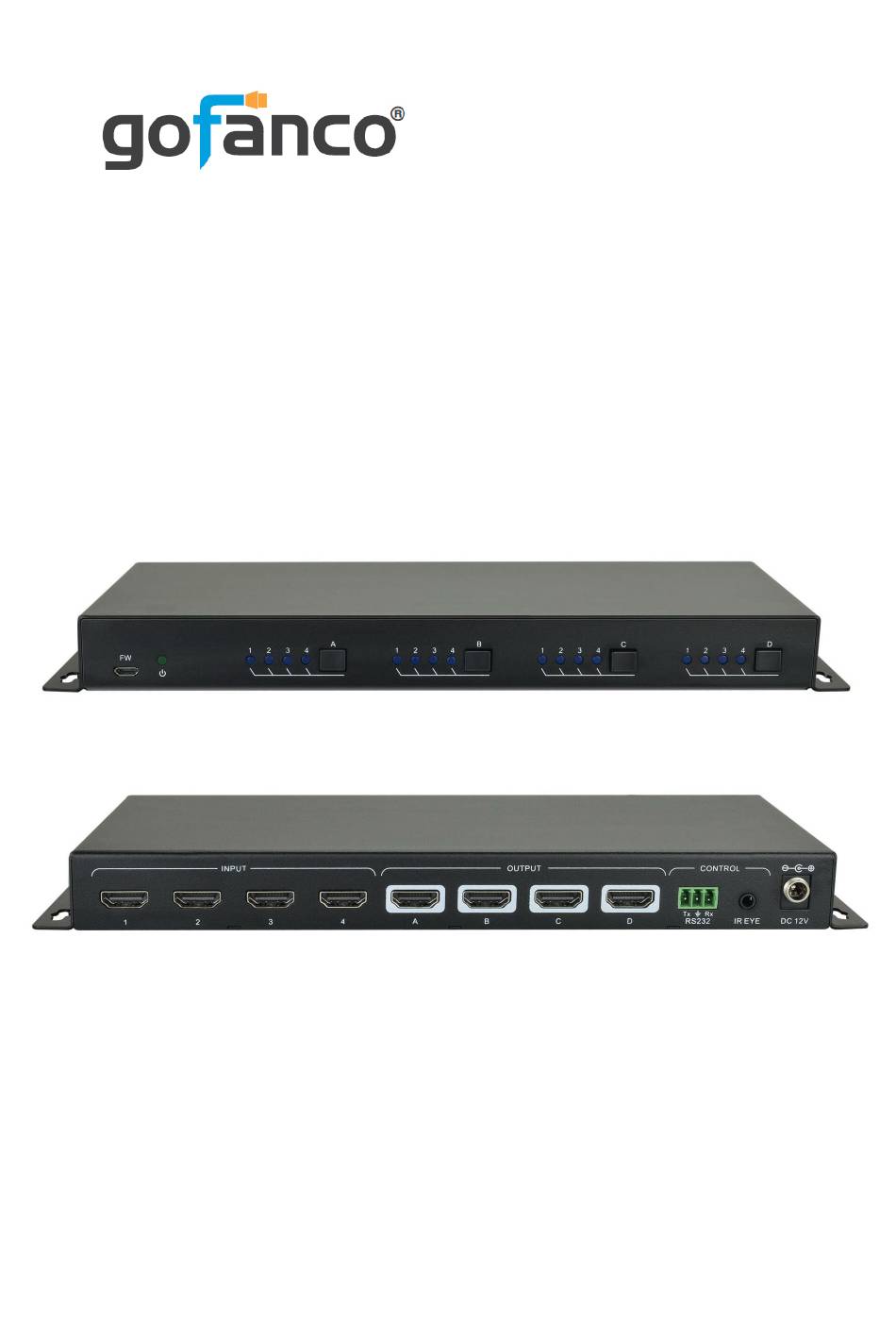

- Page 1 4x4 HDMI Matrix 4K User's Guide P/N: Matrix44 G4-0044A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Package Contents • 4x4 HDMI Matrix 4K • IR Receiver Extension Cable • IR Remote Control • Power Adapter • RS-232 Cable • Plastic Cushions (4x) • User's Guide Introduction The 4x4 HDMI Matrix 4K allows you to switch between any of the 4 source devices to up to any of the 4 display devices with support for up to 4K@60Hz resolution.
-
Page 4: Product Layout
Product Layout Name Description Micro USB port for performing Firmware firmware update The LED is illuminated when Power LED powered on One LED illuminates to indicate Input LEDs the selected input source Press the button to cycle through Input Select Button the four input sources No. - Page 5 Installation Requirements HDMI source device (computer, DVD player, XBOX, PS3, etc). HDMI display device (SDTV/Monitor, HDTV/ Monitor, projector, etc.). Hardware Installation Power off all devices including your HDMI source and HDMI display. Connect your HDMI source devices to the HDMI INPUT (1-4) connectors with HDMI cables (HDMI cables not included).
- Page 6 Application Figure 1: Hardware Connections Device Switching Front Panel Control Repeatedly press the Input Select Button to cycle through the various inputs. IR Remote Control • Press the Standby (1) button to enter or exit Standby mode • To switch an input to one or more outputs, first press the number corresponding to the desired INPUT, then...
- Page 7 Examples Send the source device on input 3 to the display on output 2 INPUTS: Press button 3 OUTPUTS: Press button 2 MENU: Press ENTER to execute the command Send the source device on input 1 to the displays on outputs 1 &...
- Page 8 RS232 Control The HDMI Matrix can be controlled from a Windows PC using an RS232 connection with a 3rd party RS232 control software such as CommWatch shown below. Please use the same configuration settings for the RS232 control software of your choosing. Select the COM port, baud rate, data bit, stop bit, and parity correctly.
- Page 9 RS232 Commands System Commands Signal Switching...
- Page 10 Preset Setting EDID Management HDCP Management...
- Page 11 Audio Setting Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the acutal products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
