gofanco Matrix44-HDBT User Manual

4x4 hdmi 2.0 matrix kit user's guide
Hide thumbs Also See for Matrix44-HDBT:

Advertisement

Quick Links

Download this manual

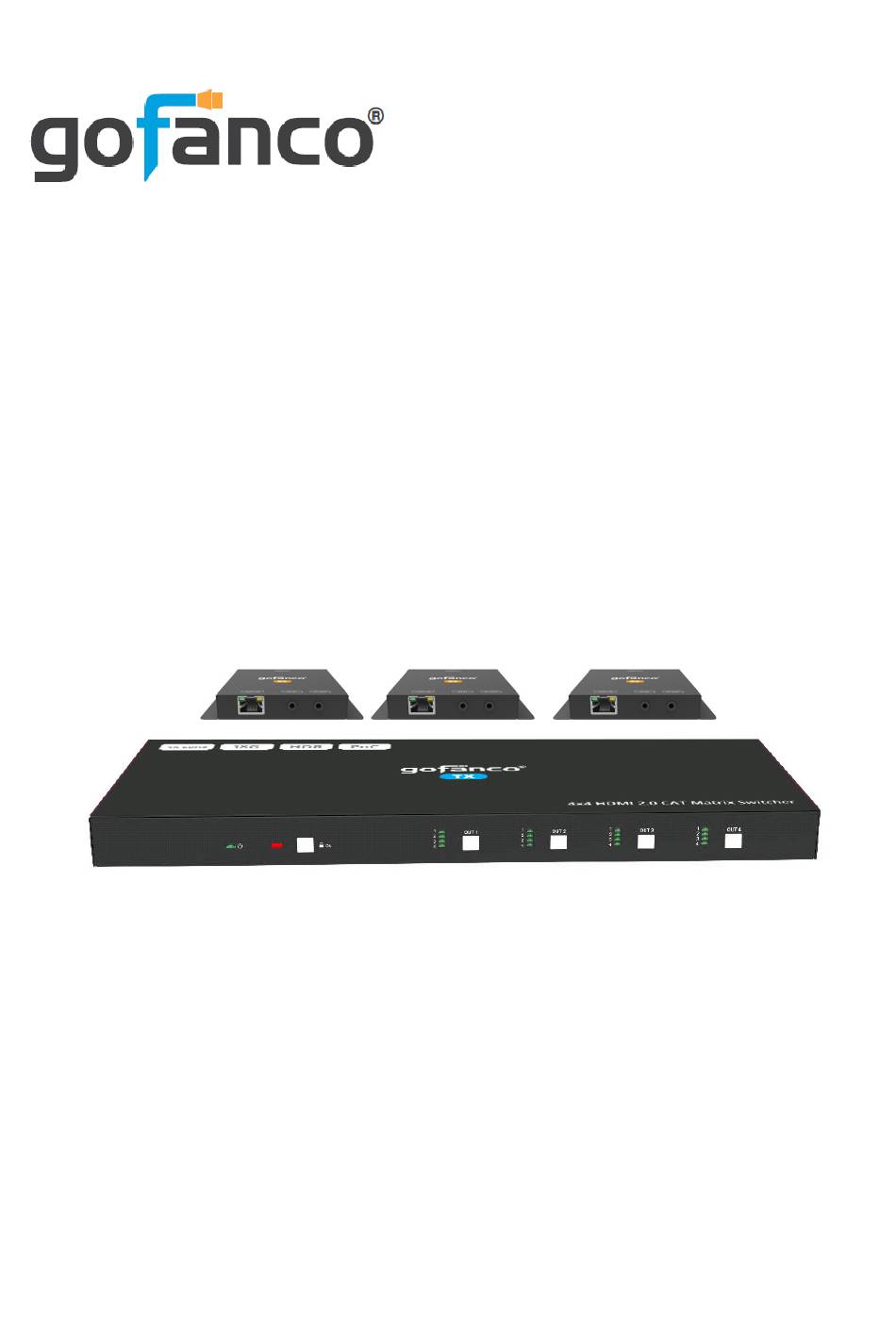

4x4 HDMI 2.0 Matrix Kit
User's Guide
P/N:Matrix44-HDBT
G4-0064B

Advertisement

loading
Need help?

Need help?

Do you have a question about the Matrix44-HDBT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for gofanco Matrix44-HDBT

Summary of Contents for gofanco Matrix44-HDBT

  • Page 1 4x4 HDMI 2.0 Matrix Kit User's Guide P/N:Matrix44-HDBT G4-0064B...
  • Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
  • Page 3 Introduction The 4x4 HMI 2.0 Matrix Kit allows you to select and switch between any of the 4 HDMI source devices to display on any of the 4 HDMI displays simultaneously. Features • Select and switch between any of the 4 HDMI source devices to any of the 4 HDMI displays simultaneously •...
  • Page 4 Package Contents 4x4 HDMI 2.0 Matrix Switcher 1x 4x4 HDMI 2.0 Matrix Switcher • Surface mount accessories • 4x Plastic pads • 1x IR remote control • 5x IR receiver cables • 5x IR emitter cables • 1x RS232 cable (Phoenix to 9-pin D-Sub) •...
  • Page 5 Figure 2: Matrix Switcher Rear Panel Layout...
  • Page 6 CAT 6/7 Receiver Figure 3: CAT 6/7 Receiver Front and Rear Panel Layout...
  • Page 7 Hardware Installation Power off all devices including your HDMI source(s) and HDMI display(s). Connect your HDMI source device(s) to the Matrix Switcher's HDMI Input connectors with HDMI cables (HDMI cables not included). Connect your CAT cables between the Matrix Switcher and CAT 6/7 Receivers. Optional: Connect an HDMI display to the HDMI output of the Matrix Switcher using an HDMI cable (HDMI cable not included).

  • Page 8: Application Diagram

    11. Plug the included power adapter into the Matrix Switcher's Power Jack, then plug the power adapter into a reliable power outlet. 12. Power on all connected devices. The 4x4 HDMI 2.0 Matrix Kit is ready for use. Application Diagram The application diagram shows the most typical input and output devices used with the 4x4 HDMI 2.0 Matrix Kit.
  • Page 9 IR Control Provides IR control of the connected devices. The IR feature is bidirectional so either the source device or the display device(s) can be remotely controlled. IR Remote Users can control the Matrix Switcher using the included remote. Connect an IR receiver cable to the IR Eye of the Matrix Switcher.
  • Page 10 Controlling the Matrix Switcher...
  • Page 11 Control the Matrix Switcher Locally Connect an IR Receiver cable to the IR Eye port of the Matrix Switcher. Point the included Remote Control at the IR Receiver Cable's IR eye to control the Matrix Switcher. Figure 6: Controlling the Matrix Switcher Locally Control the Matrix Switcher Remotely Connect an IR Receiver cable to the IR In port on each CAT 6/7 Receiver.
  • Page 12 Controlling the Display Device(s) Connect an IR Receiver cable to the IR In port of the Matrix Switcher. Connect an IR Emitter cable to the IR Out port on each CAT 6/7 Receiver. Point the IR Emitter cable's IR eye in line with the IR receiver on the display device.
  • Page 13 Controlling All Display Devices Simultaneously Connect an IR Receiver cable to the IR All In port of the Matrix Switcher. Connect an IR Emitter cable to the IR Out port on each CAT 6/7 Receiver. Point the IR Emitter cable's IR eye in line with the IR receiver on the display device.
  • Page 14 Controlling the Source Device Connect an IR Emitter cable to the IR Out port of the Matrix Switcher. Point the IR Emitter cable's IR eye in line with the IR receiver on the source device. Connect an IR Receiver cable to the IR In port on each CAT 6/7 Receiver.
  • Page 15 Multiple to Multiple Device IR Control (Matrix) Connect an IR Emitter cable to the IR All Out port of the Matrix Switcher. Point the IR Emitter cable's IR eye in line with the IR receiver on the source device. Connect an IR Receiver cable to the IR In port on each CAT 6/7 Receiver.
  • Page 16 GUI Control The Matrix Switcher can be controlled by web GUI via TCP/IP port. The default IP settings are: IP address: 192.168.0.178 Subnet Mask: 255.255.255.0 Connect your PC to the Matrix Swicher's PCP/IP Control Port. Set the PC's network segment to the same setting as the Matrix Switcher.
  • Page 17 Switching Tab Use the 4x4 button grid on the page to set which inputs are directed to which outputs. For example, clicking the button Input 1 row and Output 1 column directs the source device connected to Input 1 to the display device connected to Output 1.
  • Page 18 Audio Tab • Optical and Stereo audio output can be de-embedded from the 4 HDMI outputs. Configuration Tab 1) PoC • Turns On/Off PoC to the CAT 6/7 receiver units...
  • Page 19 2) HDCP • HDCP setting for the 4 outputs 3) EDID Copy • Copy the EDID of the selected display to one or more source devices...
  • Page 20 4) EDID Setting • Select the compatible embedded EDID for the selected source device • Upload user-defined EDID using the steps below: 1. Prepare the EDID file (.bin) on the control PC. 2. Select User-defined. 3. Click on the box, then select the ".bin" file. 4.
  • Page 21 CEC Tab 1) Input Device Control • Select one input device to be controlled, and then press function buttons. Note: Can not control two or more source devices simultaneously 2) Output Device Control • Select one output device to be controlled, and then press function buttons.
  • Page 22 RS232 Tab • ASCII or HEX command format can be selected • Baud Rate: Supports 2400, 4800, 9600, 19200, 38400, 57600, 115200 • Command Ending: Null, CR, LF, or CR+LF • Command: Type the command in this box to control the device that is connected to the RS232 port Interface Tab •...
  • Page 23 Network Tab • Select Static IP or DHCP • Modify the static IP address, Subnet Mask, and Gateway Access Tab • Modify the Login password • Upgrade the firmware • Lock or unlock the front panel buttons...
  • Page 24 RS232 Control Connect the control PC's RS232 serial port to the Matrix Switch's RS232 port using the included RS232 cable. RS232 Control Software Works with most serial command and monitoring software such as CommWatch. • Download CommWatch or the serial command software of your choice •...
  • Page 25 Control Software Interface Set the COM port, Baud rate, data bit, stop bit, and parity. Enter commands into the Command Sending Area.
  • Page 26 RS232 Commands • Default settings: Baud rate: 9600, Data bit: 8, Stop bit: 1, Parity bit: none • Commands are case sensitive • Command inside "[ ]" are for easy recognition only and not added to the real command. Other symbols including, ".", ",", "/", "%", "^", are parts of the command •...
  • Page 27 Control Managment Cont'd...
  • Page 28 Query Commands...
  • Page 29 Query Commands Cont'd...
  • Page 30 Lock/Unlock Commands Audio Commands HDCP Commands...
  • Page 31 HDCP Commands Cont'd EDID Management...
  • Page 32 EDID Management Cont'd...
  • Page 33 EDID Management Cont'd...
  • Page 34 CEC Control CEC enable source and display devices can be controlled by sending the following commands. • [I] represents the input port. [O] represents output port • [AA] represents port number. The HDMI input ports are 01-04. The HDMI ouput ports are 04-05, 05 standing for the HDMI loop-out of the 3rd HDMI output •...
  • Page 35 Display Device Commands...
  • Page 36 Resolution Downscaling...
  • Page 37 FAQ & Troubleshooting...

  • Page 38: Specifications

    Specifications...
  • Page 40 Blank Page...
  • Page 41 Blank Page...
  • Page 42 Blank Page...
  • Page 43 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
  • Page 44 Thank you for choosing gofanco www.gofanco.com...
