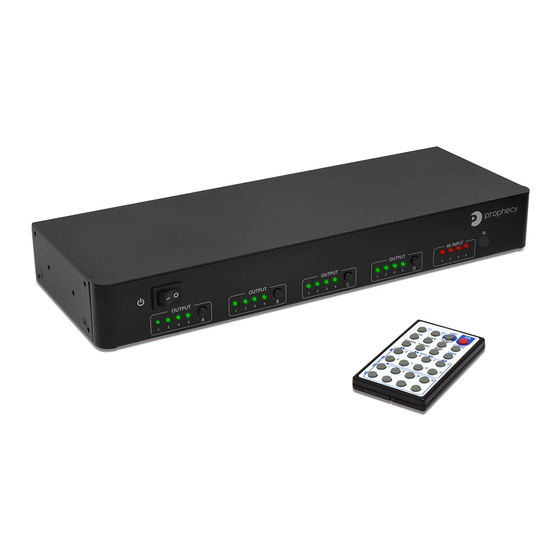

gofanco Prophecy PRO-Matrix44-SC User Manual

4k hdr 4x4 matrix with downscale support
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
PRO-Matrix44-SC
4K HDR 4x4 Matrix with Downscale Support
User's Guide
Made in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prophecy PRO-Matrix44-SC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for gofanco Prophecy PRO-Matrix44-SC

Summary of Contents for gofanco Prophecy PRO-Matrix44-SC

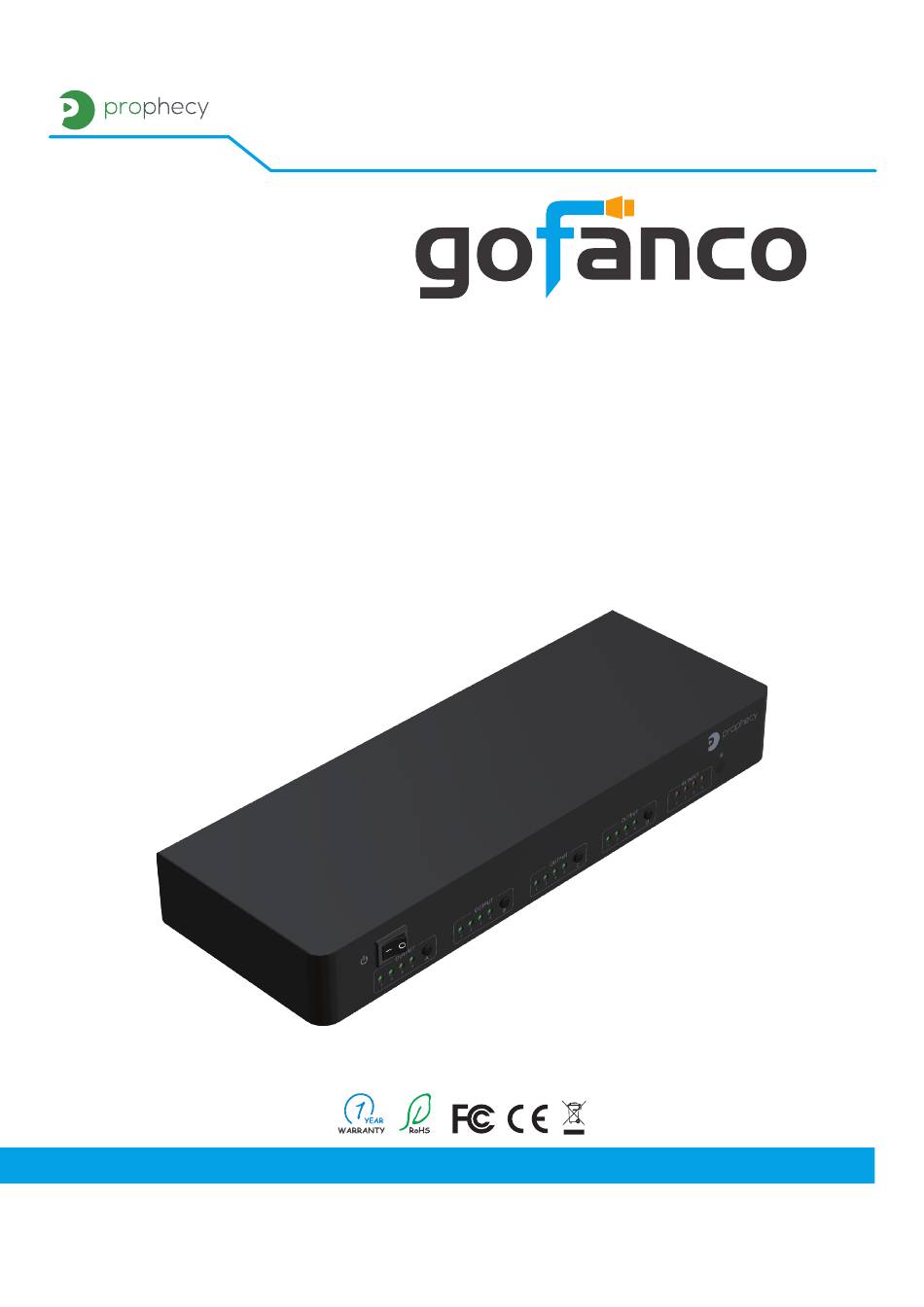

  • Page 1 ® PRO-Matrix44-SC 4K HDR 4x4 Matrix with Downscale Support User‘s Guide Made in Taiwan...
  • Page 2 ® PRO-Matrix44-SC Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.

  • Page 3: Table Of Contents

    ® PRO-Matrix44-SC Table of Contents 1. Safety and Notice ..............2.

  • Page 4: Introduction

    ® PRO-Matrix44-SC 2. Introduction The PRO-Matrix44-SC 4K HDR 4x4 Matrix with Downscale Support pro- vides the most flexible and cost effective solution in the market to route high definition video sources plus multi-channel (up to 7.1-channel) digi- tal audio from any of the four HDMI sources to the remote displays at the same time.

  • Page 5: Package Contents

    ® PRO-Matrix44-SC HDR = High Dynamic Range. The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384 MHz, and the 4K2K@60 4:4:4 8bits is 594MHz. NOT supports (1) Resolution downscaling from 4K2K@60 4:2:2 to 1080P (2) Frame rate conversion (3) 4K2K@60 4:2:2 to 4K2K@60 4:2:0 PRO-Matrix44-SC can bypass 4K HDR data content, but can NOT process it and make HDR content 100% fit into 1080p 4.

  • Page 6: Specification

    ® PRO-Matrix44-SC 5. Specifications Item Description Technical Role of usage True 4x4 matrix HDMI compliance HDMI 2.0a HDCP 1.4/ HDCP 2.2 HDCP compliance Video bandwidth Single-link 594MHz [18Gbps] Video support HDR 4K2K@60(4:2:0 10bits)/ 4K2K@60 (4:4:4 8bits) DTS-HD Master Audio, Dolby TrueHD Dolby Digital, Audio support DTS, DVD-Audio, LPCM, SACD, MPCM ESD protection...

  • Page 7: Panel Description

    ® PRO-Matrix44-SC 6. Panel Description Front Panel 1. Power Switch 2. Selected Source Status LED: When users use port channel push button, the indicator LED will show the selected source. 3. Port 1-4 Channel Push Button: Select input channel 4. Source Status: 4K Input source detection LED 5.

  • Page 8: Connection Diagram

    ® PRO-Matrix44-SC 7. Connection Diagram 8. Hardware Installation PRO-Matrix44-SC as master 1. Connect all sources to HDMI Inputs on the 4x4 HDMI Matrix PRO-Matrix44-SC. 2. Connect all displays to HDMI Outputs on the 4x4 HDMI Matrix PRO-Matrix44-SC. 3. Connect the +5V 4A DC power supply to the 4x4 HDMI MatrixPRO-Matrix44-SC.

  • Page 9: Operation Approach

    ® PRO-Matrix44-SC 9. Operation Approach Method A: Push-in Button IN/OUT MAP (1) Use Port 1-4 Channel Push Button to select the source (2) Input1~4 can be selected in order Method B: IR Remote Control Button Function Standby mode Power on the matrix switcher MUTE Turn off output’s video and audio STATUS...
  • Page 10 ® PRO-Matrix44-SC 2. Example of function key Operation Procedure Mute + A~D(Output 1~4) + Take Mute Output 1. Press “MUTE” button Ex: Mute Output 3 2. Press number key “C” to select Output 3 3.Press “TAKE” button Status + A~D(Output 1~4) + Clear Output Status 1.Press “STATUS”...
  • Page 11 ® PRO-Matrix44-SC Method C: Software Control through RS-232 port System Requirement (1) OS Information: MS WinXP/7/8.1/10 Power ON/ Standby mode (2) Baud rates: 115200 Control SW via RS-232 (3) Software size: 1 MB Control SW via Network (4) Minimum RAM requirement: 256 MB COM Port Selection I/O Routing Button EDID Button...
  • Page 12 ® PRO-Matrix44-SC 2. EDID Button Learn EDID from Default to Input (1) Select Default EDID(1-17 Default EDID) (2) Select designated Input (3) Click “Apply” button to learn from default EDID Learn EDID from Display to Input (1) Select output (2) Select designated Input (3) Click “Apply”...
  • Page 13 ® PRO-Matrix44-SC 3. Rename I/O Button Rename I/O: (1) Rename the Inputs (2) Rename the Outputs Rename Mapping: (1) Rename the Mappings...
  • Page 14 ® PRO-Matrix44-SC 4. System Button Network-DHCP mode Select DHCP and click “Read” button to automatically get the IP address Information Network-Static mode Click Static and then key in the “IP”, “MASK”, “GATEWAY” information. After setting IP address, please click “Save” button to save IP address Information “Read”...
  • Page 15 ® PRO-Matrix44-SC Read the device’s MAC address information System-Factory Reset To do factory default reset Firmware Version To get the F/W version information 5. Firmware Update Button Before you start to update, please make sure you have secured the connection between your computer COM port and the device.
  • Page 16 ® PRO-Matrix44-SC Main Board *Using RS-232 to USB cable connect the device and your PC/laptop. (1) Click the “Open Dialog” button to do firmware update, the firmware update window of main board shows up as below (2) Click the “File” button to select the file which you want to write into device (3) Click the “Start”...
  • Page 17 ® PRO-Matrix44-SC Output *Using RS-232 to USB cable connect the device and your PC/laptop. (1) Click the “Open Dialog” button to open the FW Updated window. (2) Click the “File” button to select the file which you want to write into device (3) Click the “Upgrade”...
  • Page 18 ® PRO-Matrix44-SC...
  • Page 19 3. Run the application “Matrix_Serial from the included CD-ROM and the appli- cation pictured below will open. *Note: if your system doesn’t have a CD- ROM, go to www.gofanco.com/download, search for this product by its part# PRO-Matrix44-SC, and click on “Control Programs” to download the software.
  • Page 20 ® PRO-Matrix44-SC 1. In Cloud setting, click on Read to obtain an Association Code. Write down this code, you’ll need it to configure your intriCloud account later. 2. Access your intriCloud account and log in to your account. On the upper right corner, click “Add Device”.
  • Page 21 ® PRO-Matrix44-SC 1. After adding the device, the device name will show on the upper right corner. You can click the button to switch to device control. 2. The intriCloud is ready for use. 3. Drag and drop any Input to any Output to change viewing options...
  • Page 22 ® PRO-Matrix44-SC Method E: Amazon Echo (Alexa) control Connecting your intriCloud to Alexa. Make sure your Echo device is linked to your Amazon account before continuing. 1. Go to alexa.amazon.com. Create an account or login using an existing amazon account.
  • Page 23 ® PRO-Matrix44-SC 2. Install intriCloud for Echo. Search using keyword “Intri Cloud” in Skills page and click “Enable”. Then go to Settings (next to “Disable Skills”) to link it. 3. Click “Link Account“ and the “IntriCloud” sign in box will pop up. Type in your Intri Cloud account and password, to successfully link Intri Cloud and Amazon Alexa.
  • Page 24 ® PRO-Matrix44-SC Voice Control Step 1. Alexa, open la la land (into IntriCloud) “ “ Step 2. list device (What device connected to your IntriCloud ) “ “ Step 3. select device (Select the device which you want to control) “...
  • Page 25 ® PRO-Matrix44-SC Method F: Web Interface Control The default IP address: 192.168.1.70 I/O Routing Tab Rename I/O, mapping Tab EDID Tab Power ON/Standby mode Refresh I/O status 1. I/O Routing Tab I/O: Switch the input for each output Save Mapping (1) Select Mapping 1~8 (2) Click “Save”...
  • Page 26 ® PRO-Matrix44-SC 2. Rename I/O, Mapping Tab Rename I/O: (1) Rename the Inputs (2) Rename the Outputs Rename Mapping Rename the Mappings 3. EDID Tab Learn EDID from Default (1) Select Default EDID (1-17 default EDID) (2) Select input (3) Click “Send” button to learn 　...

  • Page 27: Edid Learning

    ® PRO-Matrix44-SC 10. EDID Learning The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lo- west standards in audio format and video resolutions to be commonly acceptable among all HDMI displays.
  • Page 28 ® PRO-Matrix44-SC 11. FAQ Q .Can every TV work with the HDMI matrix? Basically, the answer is YES. But if your TV can not support 1080p, please refer the EDID LEARNING section to learn EDID from your TV. Q What is EDID? Why do I need to learn EDID? EDID contains the whole information of the display such as the resolution and audio setting which this display can support.
  • Page 29 ® PRO-Matrix44-SC 12. Limited Warranty The SELLER warrants the PRO-Matrix44-SC 4K HDR 4x4 Matrix with Downscale Support free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static...
  • Page 30 ® PRO-Matrix44-SC...
  • Page 31 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products. We reserve the rights to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
  • Page 32 ® Thank you for choosing gofanco www.gofanco.com Dec, 2018 Ver. A Copyright © 2018 by gofanco, LLC. All rights reserved.
