gofanco Matrix44HD2-LCD User Manual

4x4 hdmi matrix 4k with lcd
Hide thumbs

Advertisement

Quick Links

Download this manual
4x4 HDMI Matrix 4K
with LCD
User's Guide
P/N:Matrix44HD2-LCD
G4-0138A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Matrix44HD2-LCD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for gofanco Matrix44HD2-LCD

Summary of Contents for gofanco Matrix44HD2-LCD

  • Page 1 4x4 HDMI Matrix 4K with LCD User's Guide P/N:Matrix44HD2-LCD G4-0138A...
  • Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
  • Page 3 Introduction The 4x4 HDMI Matrix 4K-LCD allows you to select and switch between any of the 4 HDMI source devices to display on any of the 4 HDMI outputs. Features • Connect up to four HDMI source devices and independently distribute any source to any of the four HDMI displays •...
  • Page 4 Package Contents • 4x4 HDMI Matrix 4K • IR remote control • IR Receiver cable • Software CD • Phoenix plugs (5pcs) • Power adapter (12VDC/2A) • User's guide...

  • Page 5: Product Layout

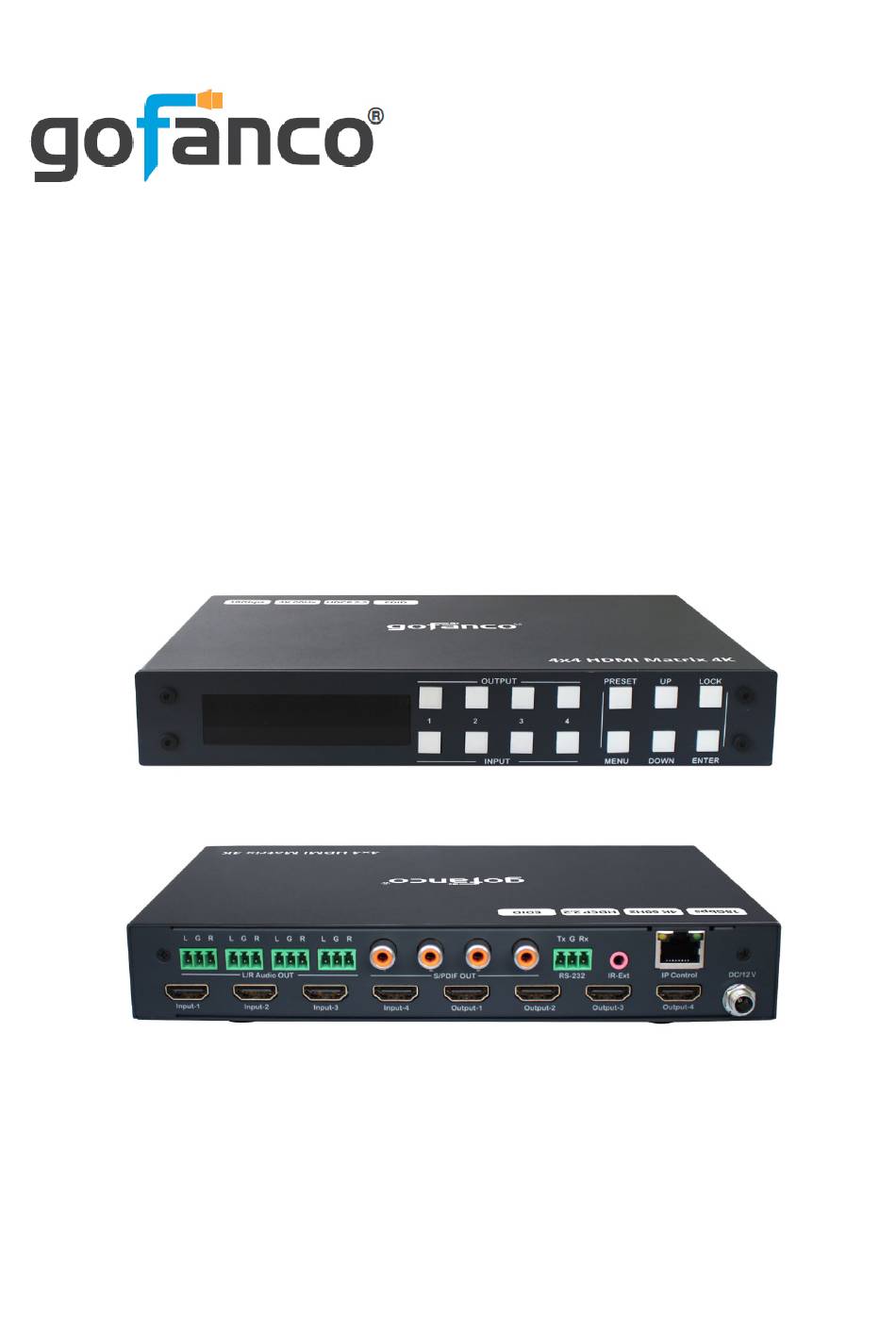

    Product Layout Figure 1: Front Panel Layout IR receiver window: Receives IR signal from the remote control Output selection buttons (1-4): Press to select an output port Input selection buttons (1-4): Press to select an input source Preset: Press to add/select a preset configuration Up: Press to select the next menu item Lock: Long press to lock/unlock the Matrix Menu: Press to activate the LCD's the main menu...
  • Page 6 Figure 2: Rear Panel Layout Analog Out (1-4): Connect to your speakers or headphones S/PDIF Out (1-4): Connect to your S/PDIF audio device RS232: Connect to your control PC IR In: Connect to the IR receiver cable. This is required only if the front panel IR receiver window is blocked RJ45: Connect to your network router or switch Power Jack: Connect to the included power adapter...
  • Page 7 Hardware Installation Power off all devices including your HDMI source(s) and HDMI display(s). Connect your HDMI source devices to the Matrix 4K's HDMI Input connectors with HDMI cables (HDMI cables not included). Connect your HDMI displays to the Matrix 4K's HDMI Output connectors with HDMI cables (HDMI cables not included).

  • Page 8: Application Diagram

    Application Diagram The application diagram shows the most typical input and output devices used with the 4x4 HDMI Matrix 4K. Figure 3: Application Diagram...
  • Page 9 Matrix Device Control Input Selection and Output Selection Buttons Use the Input selection buttons (see #3 on page 5) and Output selections (see #2 on page 5) to select and switch between any of the 4 source devices to display on any of the 4 displays.
  • Page 10 Video Switching To select Input 1 source to display on Output 1 port - Press the Menu button (see #7 on page 5) select Video, then press Enter button (see #9 on page 5). Press the Up button (see #5 on page 5) or Down button (see #8 on page 5) to choose Switching.
  • Page 11 On/Off To turn off Output 1 port - Press the Menu button (see #7 on page 5) select Video, then press Enter button (see #9 on page 5). Press the Up button (see #5 on page 5) or Down button (see #8 on page 5) to choose On/Off. Press Enter button to select the next submenu, then the Up button or Down button to select Output 1.
  • Page 12 Audio There are two sub-menus, Line Out and De-Embed, both are set to open by default. Line out allows you to switch and mute the sound. De-Embed allows you to set the output audio...
  • Page 13 EDID There are four EDID modes, the Matrix is set to Default1. Example: Set Default1 to Input1- Select EDID from the main Menu, then press Enter button. Press Up button or Down button to select Input 1, then press Enter button. Press Up button or Down button to select Default 1, then press Enter button to save the changes.
  • Page 14 Presets Allows you to save, select, or delete video, audio, EDID system configurations. Supports up to 8 different presets.
  • Page 15 Setup Interface Allows you to set Baud rate, DHCP, reboot, and restore factory settings. Baud Rate Default setting: 115200 DHCP Default setting: Off...
  • Page 16 Reboot Default setting: No Factory Reset Default setting: No Common: Resets Video, Audio, EDID, Setup...
  • Page 17 All: Resets video, audio, EDID, Setup, Preset, Name System Information Displays system and IP information. System Displays company name, device name, and version.
  • Page 18 Displays IP address, Mac address, and DHCP status.
  • Page 19 Remote Control Users can control the 4x4 HDMI Matrix 4K using the included IR remote. Point the remote control towards the built-in IR receiver window located on the front panel. An optional IR receiver cable is included to improve IR function in space constrained installations. Figure 4: Remote Control Standby: Press to place the Matrix in standby mode.
  • Page 20 Lock: Press to lock the remote control. Press again to unlock the remote control Output select (1-4): Selects an input source to display on an output port. Example: To select Input 1 source to display on Output 1 port - Press Output 1 button (see #4), then press Input 1 button (see #8) All: Selects one input device to display on all outputs.
  • Page 21 RS232 Control Connect the 4x4 HDMI Matrix 4K to a PC using an RS232 cable. COM Port Setting Software Control Open the software on the included software CD and the control window appears as shown below. In COM Setting, select the PC's COM port and click Connect.
  • Page 22 RS232 Command List • All commands start with "#". • Do not omit the "_". • Add a space to Command head, Parameter and target...
  • Page 23 RS232 Command List Continued...
  • Page 24 RS232 Command List Continued...
  • Page 25 RS232 Command List Continued...
  • Page 26 RS232 Command List Continued...
  • Page 27 Web Control Default IP Address The default IP address of the Matrix 4K is 192.168.1.168. Change the IP address of your PC If the IP address of your PC is in the range from 192.168.1.2 to 192.168.1.254, except 192.168.1.168, then there is no need to change it.
  • Page 28 Click Properties. Select Use the following IP Address, and then enter the IP address. Note: You can use any IP address in the range: 192.168.1.2 to 192.168.1.254 (excluding 192.168.1.168). Click OK to save the changes. Click Close to exit.
  • Page 29 Web Browser Control Open your web browser and enter the Matrix 4K's IP address 192.168.1.168 into the address bar, and press Enter. Type in user name: admin and password: 123456, then click Login. Video Control Assign any of the input devices to any of the outputs. Modify Port Name Select an input or output port to rename.
  • Page 30 Audio Control Set the audio for the HDMI outputs. EDID Control Set EDID for the HDMI inputs.
  • Page 31 EDID Table Network Enter network settings, and enable DHCP. System Setting Change password, Reboot, Restore Factory Settings.
  • Page 32 Firmware Update In most cases, the Matrix comes with the latest available firmware version when we ship. If available, firmware updates for critical fixes will be posted to gofanco's website for download. MCU Update Connect the Matrix 4K to the PC using the RS232 port.
  • Page 33 Web Update Connect the Matrix 4K to the PC using the RS232 port. Open the update software on the CD. Choose the COM port of the PC, set BAUD rate to 115200, type F0 into Port. Load the firmware in PATH. Click UPDATA.

  • Page 34: Specifications

    Specifications...
  • Page 35 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
  • Page 36 Thank you for choosing gofanco www.gofanco.com...
