PRO-Matrix88-aud
8x8 HDMI 2.0a Matrix 4K HDR with audio extractor
User's Guide
Made in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-Matrix88-aud and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for gofanco PRO-Matrix88-aud

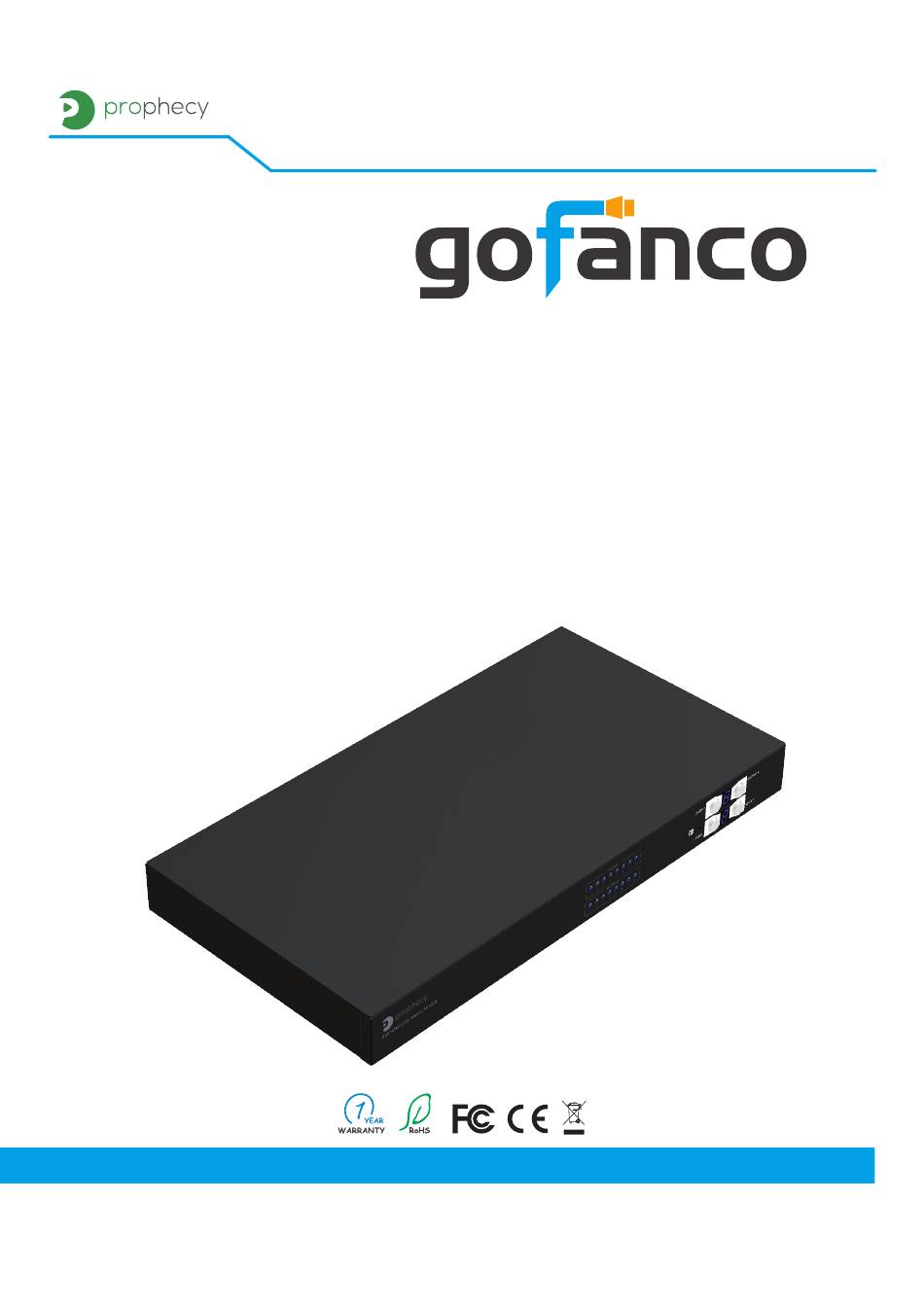

  • Page 1 ® PRO-Matrix88-aud 8x8 HDMI 2.0a Matrix 4K HDR with audio extractor User‘s Guide Made in Taiwan...
  • Page 2 ® PRO-Matrix88-aud Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
  • Page 3: Table Of Contents

    However, like all electronic equipments, the PRO-Matrix88-aud should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 4: Introduction

    (up to 7.1-channel) audio from any of the eight HDMI sources to the remote displays at the same time. PRO-Matrix88-aud supports HDR and the true 4K2K video! Besides, this device supports the separa-...
  • Page 5: Specification

    ® PRO-Matrix88-aud 4. Specifications Item Description Technical Role of usage True 8x8 matrix HDMI compliance HDMI 2.0a HDCP 1.4/ HDCP 2.2 HDCP compliance Video bandwidth Single-link 594MHz [18Gbps] Video support HDR 4K2K@60(4:2:0 10bits)/ 4K2K@60 (4:4:4 8bits) Audio support Surround sound (up to 7.1ch) or stereo digital audio ESD protection Human body model —...
  • Page 6: Panel Description

    ® PRO-Matrix88-aud 5. Panel Description Front Panel Source Status: Input source detection LED Display Status: Output display detection LED IR SENSOR: IR sensor for receiving the IR commands from IR remote Output Push Button & 7-segment LED: Front panel push buttons used to select the number of display channel &LED display for output ports...
  • Page 7: Package Contents

    1. Connect all sources to HDMI Inputs on the 8x8 HDMI Matrix PRO-Matrix88-aud. 2. Connect all displays to HDMI Outputs on the 8x8 HDMI Matrix PRO-Matrix88-aud. 3. Connect the +12V 7.5A DC power supply to the 8x8 HDMI Matrix PRO-Matrix88-aud.
  • Page 8: Operation Approach

    ® PRO-Matrix88-aud 9. Operation Approach Method A: Push-in Button IN/OUT MAP (1) Use the “+”or “-“ output push button to select the number of display (2) Use the “+”or “-“ input push button to select the number of input source “+”: change selected input/output port in ascending order...
  • Page 9 ® PRO-Matrix88-aud Method B: IR Remote Control Button Function Standby mode Power on the matrix switcher MUTE Turn off output’s video and audio STATUS Preset output status SAVE Save current mapping mode PRESET Preset mapping mode DEFAULT EDID Begin default EDID selection...
  • Page 10 ® PRO-Matrix88-aud 2. Example of function key 7-Segment Operation Procedure Status + Output Number (1~8) + Take Output Status 1.Press “STATUS” button Ex: Output 4 2.Press number key “4” to select Output 4 (Input 2) 3.Press “TAKE” button Save + Output Number (1-8 storage site) + Take Save Current Mapping 1.Press “SAVE”...
  • Page 11 ® PRO-Matrix88-aud Method C: Software Control through RS-232 port System Requirement (1) OS Information: MS WinXP/7 (2) Baud rates: 115200 (3) Software size: 2 MB (4) Minimum RAM requirement: 256 MB Power ON/ Standby mode Control SW via RS-232 Control SW via IP...
  • Page 12 ® PRO-Matrix88-aud 1. I/O Routing Button I/O Mapping: (1) Switch the input for each output (2) ARC: Enable/ Disable ARC Recall Mapping: (1) Select the stored Mapping(1-16) (2) Click “Recall” button to recall previous mapping which are saved Save Mapping: (1) Select Mapping(1-16) (2) Click “Save”...
  • Page 13 ® PRO-Matrix88-aud 2. EDID Button Learn EDID from Default to Input (1) Select Default EDID(1-17 Default EDID) (2) Select designated Input (3) Click “Apply” button to learn from default EDID Learn EDID from Display to Input (1) Select output (2) Select designated Input (3) Click “Apply”...
  • Page 14 ® PRO-Matrix88-aud 3. Rename I/O Button Rename I/O: (1) Rename the Inputs (2) Rename the Outputs Rename Mapping: (1) Rename the Mappings...
  • Page 15 ® PRO-Matrix88-aud 4. System Button Network-DHCP mode (1) After selecting DHCP, device will reboot automatically (2) Click “Read” button to automatically get the IP address Information Network-Static mode (1) After selecting static, device will reboot automatically (2) Key in the “IP”, “MASK”, “GATEWAY” information.
  • Page 16 ® PRO-Matrix88-aud Cloud setting-Reset Cloud To reset cloud after a successful pairing Cloud setting-MAC Read the device’s MAC address information Firmware Update-Main Board (1) Click “Main Board” button and another window will pop-up (2) Click “File” button to load firmware (3) Click “Start”...
  • Page 17 ® PRO-Matrix88-aud Firmware Update-Input (1) Click “Input” button and another window will pop-up (2) Click “File” button to load firmware (3) Click “Start” button to do firmware update (4) Please power cycle after firmware update complete Firmware Update-Output (1) Click “Output” button and another window will pop-up (2) Click “File”...
  • Page 18 ® PRO-Matrix88-aud...
  • Page 19 3. Run the application “Matrix_Serial from the included CD-ROM and the applica- tion pictured below will open. *Note: if your system doesn’t have a CD-ROM, go to www.gofanco.com/download, search for this product by its part# PRO-Mat- rix88-aud, and click on “Control Programs” to download the software.
  • Page 20 ® PRO-Matrix88-aud 1. In Cloud setting, click on Read to obtain an Association Code. Write down this code, you’ll need it to configure your intriCloud account later. 2. Access your intriCloud account and log in to your account. On the upper right corner, click “Add Device”.
  • Page 21 ® PRO-Matrix88-aud 1. After adding the device, the device name will show on the upper right corner. You can click the button to switch to device control. 2. The intriCloud is ready for use. 3. Drag and drop any Input to any Output to change viewing options...
  • Page 22 ® PRO-Matrix88-aud Method E: Amazon Echo (Alexa) control Connecting your intriCloud to Alexa. Make sure your Echo device is linked to your Amazon account before continuing. 1. Go to alexa.amazon.com. Create an account or login using an existing ama- zon account.
  • Page 23 ® PRO-Matrix88-aud 1. Install intriCloud for Echo. Search using keyword “Intri Cloud” in Skills page and click “Enable”. Then go to Settings (next to “Disable Skills”) to link it. 2. Click “Link Account“ and the “IntriCloud” sign in box will pop up. Type in your Intri Cloud account and password, to successfully link Intri Cloud and Amazon Alexa.
  • Page 24 ® PRO-Matrix88-aud Voice Control Step 1. Alexa, open la la land (into IntriCloud) “ “ Step 2. list device (What device connected to your IntriCloud ) “ “ Step 3. select device (Select the device which you want to control) “...
  • Page 25: Edid Learning

    ® PRO-Matrix88-aud 10. EDID Learning The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing...
  • Page 26 ® PRO-Matrix88-aud 11. FAQ Q .Can every TV work with the HDMI matrix? Basically, the answer is YES. But if your TV can not support 1080p, please refer the EDID LEARNING section to learn EDID from your TV. Q What is EDID? Why do I need to learn EDID? EDID contains the whole information of the display such as the resolution and audio setting which this display can support.
  • Page 27 Also, the technical information contained herein regarding the PRO-Matrix88-aud fea- tures and specifications is subject to change without further notice.
  • Page 28 ® Thank you for choosing gofanco www.gofanco.com Oct, 2019 Ver. A Copyright © by gofanco, LLC. All rights reserved.
