4x4 HDBaseT Matrix Kit 4K
User's Guide
P/N:Matrix44-HDBT
G4-0064A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Matrix44-HDBT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for gofanco Matrix44-HDBT

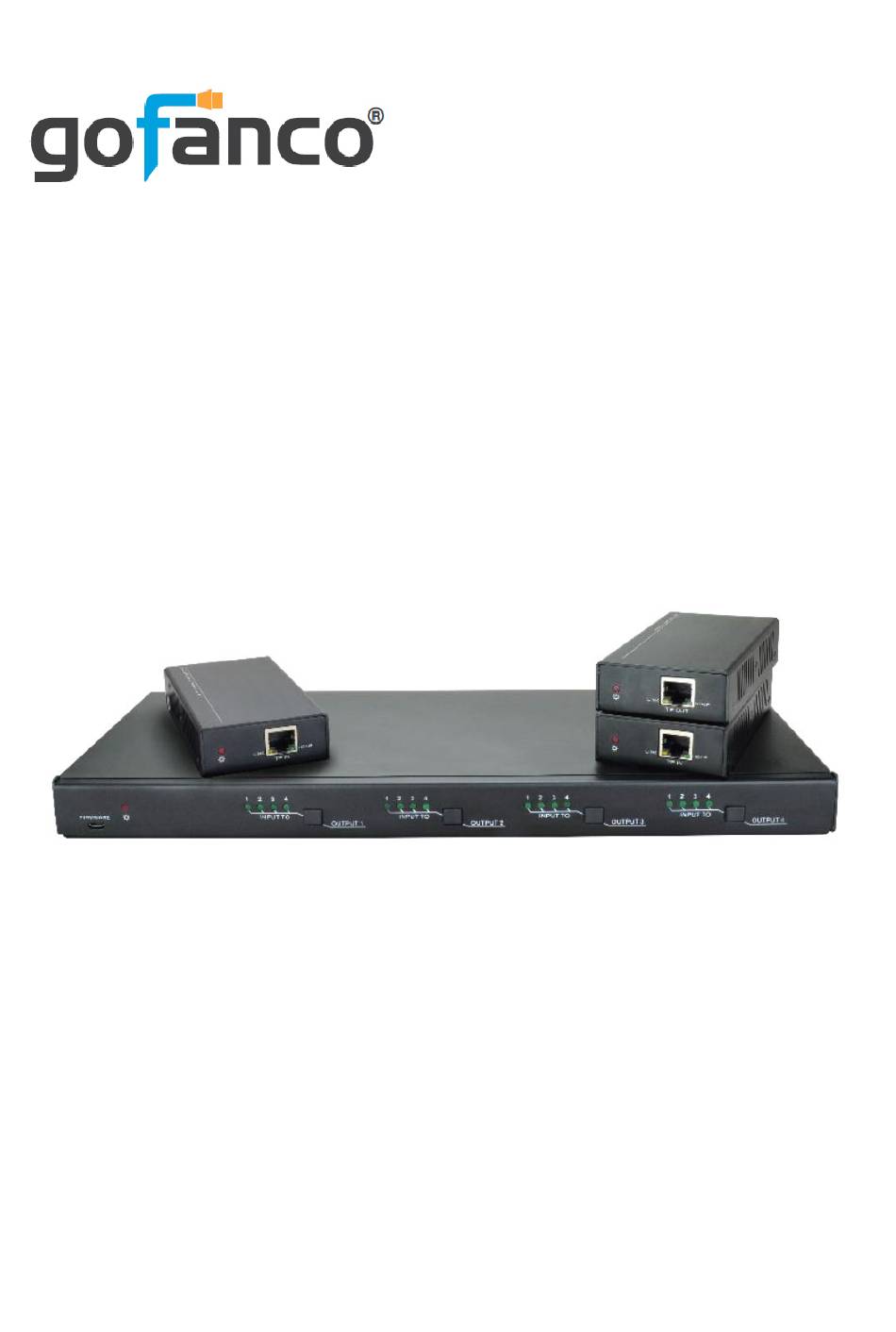

  • Page 1 4x4 HDBaseT Matrix Kit 4K User's Guide P/N:Matrix44-HDBT G4-0064A...
  • Page 2: Important Safety Notices

    Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
  • Page 3: Installation Requirements

    Introduction The 4x4 HDBaseT Matrix Kit 4K allows you to select and switch between any of the 4 HDMI source devices to display on any of the 3 HDBaseT outputs and one HDMI output. Features • Transmits HDMI signals in 1080p up to 70 meters and 4K signals up to 40 meters over high quality CAT cable via HDBaseT technology •...
  • Page 4: Product Layout

    Package Contents 4x4 HDBaseT Matrix Switcher 1x 4x4 HDBaseT Matrix Switcher • 2x Mounting ears with 6 screws • 4x Plastic pads • 1x IR remote control • 4x IR receiver cables • 4x IR emitter cables • 1x RS232 cable (Phoenix to 9-pin D-Sub) •...
  • Page 5 Figure 2: HDBaseT Matrix Switcher Rear Panel Layout...
  • Page 6 HDBaseT Receiver Figure 3: HDBaseT Receiver Front Panel Layout Figure 4: HDBaseT Receiver Rear Panel Layout...
  • Page 7: Hardware Installation

    Hardware Installation Power off all devices including your HDMI source(s) and HDMI display(s). Connect your HDMI source device(s) to the HDBaseT Matrix Switcher's HDMI Input connector with an HDMI cable (HDMI cable not included). Connect your CAT cable between the HDBaseT Matrix Switcher and HDBaseT Receivers.
  • Page 8: Application Diagram

    Application Diagram The application diagram shows the most typical input and output devices used with the 4x4 HDBaseT Matrix Kit 4K. Figure 5: Application Diagram...
  • Page 9 IR Control Provides IR control of the connected devices. The IR feature is bidirectional so either the source device or the display device(s) can be remotely controlled. IR Remote Users can control the Matrix Switcher using the included remote. Connect an IR receiver cable to the IR Eye of the Matrix Switcher.
  • Page 10 Controlling the Matrix Switcher...
  • Page 11 Controlling the Display Device(s) Connect an IR Receiver cable to the IR In port of the HDBaseT Splitter. Connect an IR Emitter cable to the IR Out port on each HDBaseT Receiver. Point the IR Emitter cable's IR eye in line with the IR receiver on the display device.
  • Page 12 Controlling the Source Device Connect an IR Emitter cable to the IR Out port of the Matrix Switcher. Point the IR Emitter cable's IR eye in line with the IR receiver on the source device. Connect an IR Receiver cable to the IR In port on each HDBaseT Receiver.
  • Page 13 RS232 Control Connect the control PC's RS232 serial port to the Matrix Switch's RS232 port using the included RS232 cable. Figure 10: RS232 Control RS232 Control Software Works with most serial command and monitoring software such as CommWatch. • Download CommWatch or the serial command software of your choice •...
  • Page 14 Control Software Interface Set the COM port, Baud rate, data bit, stop bit, and parity. Enter commands into the Command Sending Area.
  • Page 15 RS232 Commands Default settings: Baud rate: 9600, Data bit: 8, Stop bit: 1, Parity bit: none. RS232 Commands...
  • Page 16 RS232 Commands...
  • Page 17 RS232 Commands...
  • Page 18 RS232 Commands...
  • Page 19 RS232 Commands...
  • Page 20 RS232 Commands...
  • Page 21: Tcp/Ip Control

    TCP/IP Control The Matrix Switcher can be controlled by PC with or without a LAN connection. Both PC and Matrix Switcher need to be in the same network segment. Direct Control by PC Connect your PC's Ethernet port to the TCP/IP port of the Matrix Switcher using a network cable.
  • Page 22 PC Control via Router Figure 12: Router Connection Hardware Installation Connect the TCP/IP port of the Matrix Switcher to the Ethernet port of the PC with a network cable. Set the PC's network segment to the same as the Matrix Switcher. Please write down the PC's orignal network setting because you will be using them again later.
  • Page 23 GUI Control The Matrix Switcher comes with built-in GUI for convenient TCP/IP control. Open the GUI by typing 192.168.0.178 in your browser and the login interface, as shown below, will open.
  • Page 26 EDID Management The Matrix Switcher features EDID management to maintain compatibility between all devices. EDID can be controlled via EDID learning and setting embedded EDID. EDID Learning The included IR remote can be used to enable EDID learning. One input port learns the EDID of one output port: Example: Input 2 learns the EDID from output 4 - Press: EDID + INPUTS2 + OUTPUTS 4 + Enter All input ports learn EDID from one output port:...
  • Page 27: Faq And Troubleshooting

    FAQ & Troubleshooting...
  • Page 28 FAQ & Troubleshooting...
  • Page 29 Specifications Matrix Switcher...
  • Page 30 HDBaseT Receiver...
  • Page 31 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
  • Page 32 Thank you for choosing gofanco www.gofanco.com...
