Danfoss 176F4190 Installation Manual page 4

In-back/Out-back Cooling Kit for FK09c/FB09c and FK10c/FB10c
Installation Guide
1
2
3
4
5
6
7
8
9
10
11

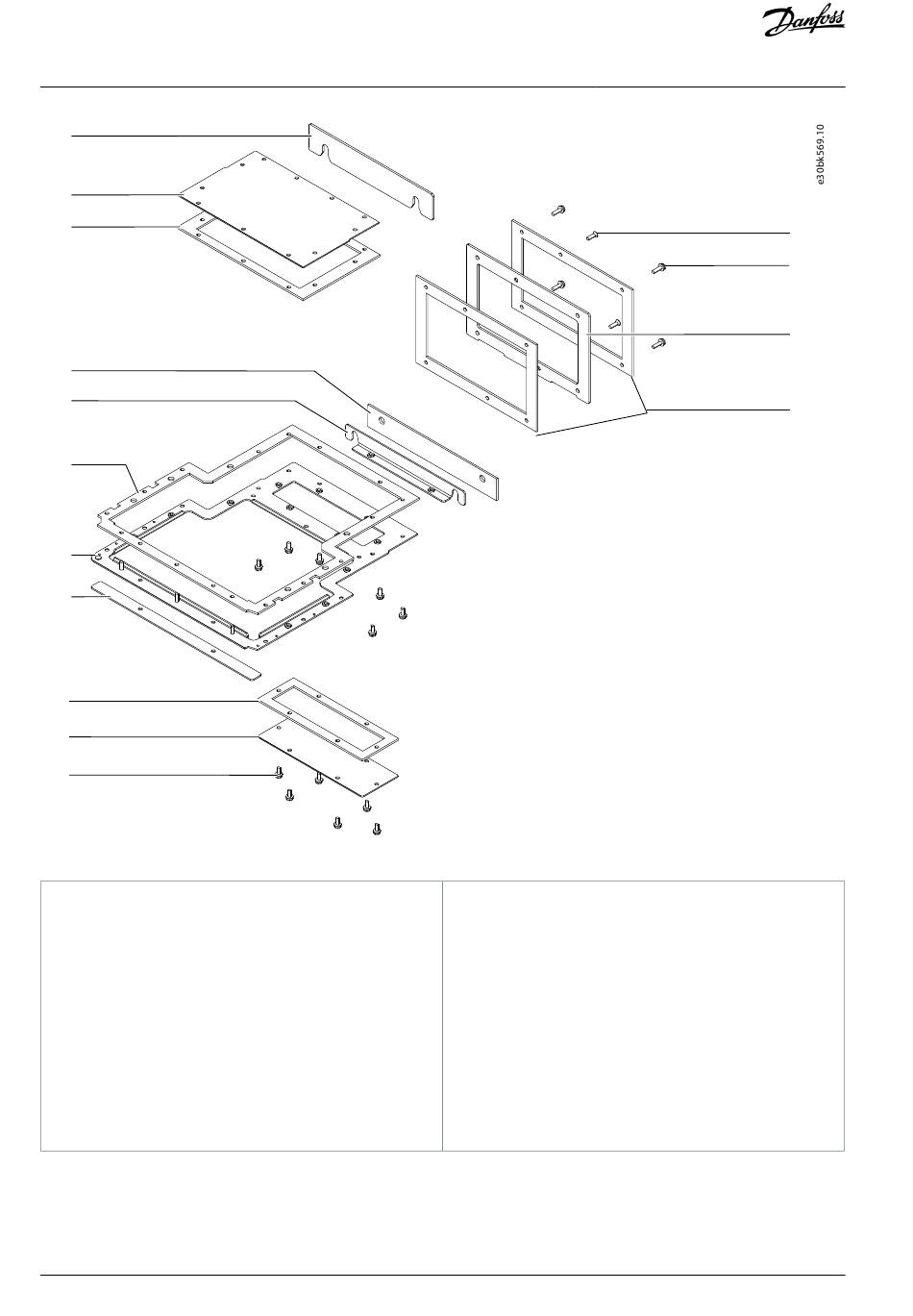

Illustration 2: Overview of In-back/Out-back Cooling Kit
1 Top flange spacer
2 Top cover
3 Top cover gasket
4 Bottom bracket
5 Drive slot gasket
6 Base plate gasket
7 Base plate
8 Front spacer
4 | Danfoss A/S © 2023.09
9 Bottom cover gasket
10 Bottom cover
11 M5x12 screw (11–12)
12 M5x16 countersunk screw (4)
13 M5 x 18 screw (8)
14 Back vent spacer (2)
15 Back vent spacer gasket (4)
AN371942578354en-000101 / 136R0290
Installation
12
13
14
15
