Installation Guide
In-back/Out-back Cooling Kit
for FK09c/FB09c and FK10c/FB10c
iC7 Series Frequency Converters
1 Overview
1.1 Description
The in-back/out-back cooling kit fits iC7 Series FK09c/FB09c and FK10c/FB10c Frequency Converters. When the kit is installed,
airflows into the lower back duct and out through the upper back duct. See
1
2
3

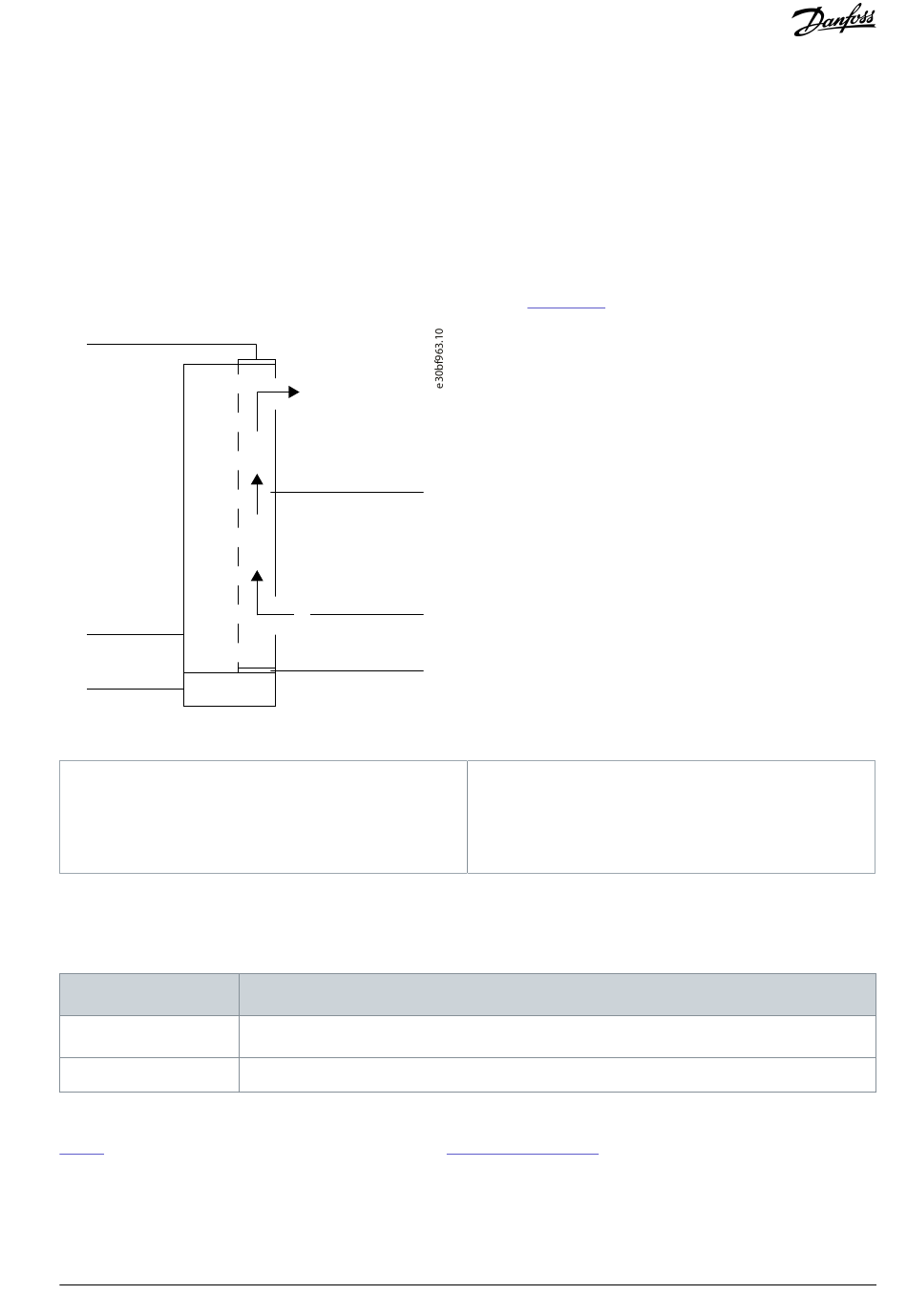

Illustration 1: Direction of Airflow with Kit Installed
1
Top cover
2
Cabinet
3
Pedestal
1.2 Kit Numbers
Use these instructions with the following kits.
Table 1: Numbers for In-back/Out-back Cooling Kits
Number
176F4190
176F4191
1.3 Items Supplied
Table 2
provides a list of items included in the kit. Refer also to
Danfoss A/S © 2023.09
Kit description
FK09c/FB09c in-back/out-back cooling kit
FK10c/FB10c in-back/out-back cooling kit
Illustration
1.
4
5
6
4
Cooling back channel
5
Air flow direction
6
Bottom cover
2.2 Installation
Overview.
AN371942578354en-000101 / 136R0290 | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 176F4190 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Danfoss 176F4190

  • Page 1 Kit description 176F4190 FK09c/FB09c in-back/out-back cooling kit 176F4191 FK10c/FB10c in-back/out-back cooling kit 1.3 Items Supplied Table 2 provides a list of items included in the kit. Refer also to 2.2 Installation Overview. Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290 | 1...
  • Page 2 Drive slot gasket Bottom bracket Base plate gasket Base plate Front spacer Bottom cover gasket Bottom cover M5x12 screw 11–12 M5x16 countersunk screw M5x18 screw Back vent spacer Back vent gasket 2 | Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290...
  • Page 3: Installation Overview

    APPLYING GASKETS This kit contains self-adhesive gaskets to ensure a proper seal between metal parts. Before affixing a gasket, check that the part matches the gasket and that no holes are covered. Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290 | 3...
  • Page 4 M5x12 screw (11–12) Bottom bracket M5x16 countersunk screw (4) Drive slot gasket M5 x 18 screw (8) Base plate gasket Back vent spacer (2) Base plate Back vent spacer gasket (4) Front spacer 4 | Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290...
  • Page 5 Fasten 4 M5x16 countersunk screws, 2 in each back vent spacer along the upper and lower edges. Illustration 3: Installation of Back Vent Spacers (Upper and Lower) Back vent spacer gasket (inner) M6x12 screw Back vent spacer M5x18 countersunk screw Back vent spacer gasket (outer) Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290 | 5...
  • Page 6: Installing The Base Plate

    Position the base plate at the bottom of the frequency converter. Secure the base plate using 6 M5x12 screws (T25) from the kit. Illustration 4: Installation of Bottom Bracket and Base Plate 6 | Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290...
  • Page 7: Installing The Bottom Cover

    Create cable entry holes in the plate using a sheet metal punch. Reuse the cable entry plate that was removed during base plate installation. Position the cable access plate at the bottom of the frequency converter. Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290 | 7...
  • Page 8 Test lift the frequency converter approximately 610 mm (24 in) to verify the proper center of gravity lift point. Reposition the lifting point if the frequency converter is not level. Never walk under suspended loads. Always lift the frequency converter using the recommended lifting method and safety precautions. 8 | Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290...
  • Page 9 Determine proper placement of the frequency converter, considering the operating environment and cable access re- quirements. Ensure that the air intake and exhaust vents at the back of the frequency converter are not obstructed. Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290 | 9...
  • Page 10 Use 4 M10 bolts, 2 in the upper and 2 in the lower mounting holes. Apply the drive slot gasket over the slots at the back lower edge of the frequency converter. 10 | Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290...
  • Page 11 Slowly push the top of the frequency converter back against the mounting surface until the mounting holes line up with the upper 2 M10 bolts. Secure the top of the frequency converter using 2 M10 bolts. Torque all fasteners to 19 Nm (170 in-lb). Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290 | 11...
  • Page 12 Using the dimensions in Illustration 8 for FK09c or Illustration 11 for FK10c, prepare the mounting surface. 33.1 (1.3) (11.0) Ø11 (0.43) (12.6) (17.2) Illustration 11: Dimensions for Mounting FK10c Frequency Converter 12 | Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290...
  • Page 13 Place the front spacer from the kit at the front edge of the pedestal. Affix the drive slot gasket from the kit over the 2 M10 studs at the back of the pedestal. Illustration 13: Front Spacer and Drive Slot Gasket Installation Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290 | 13...
  • Page 14 Fasten 2 M10 nuts (17 mm) to the 2 M10 studs, attaching the pedestal to the frequency converter. Illustration 14: Installation of M10 Nuts Attaching Pedestal Install the bottom cover to seal the lower end of the back channel. Refer to 2.5 Installing the Bottom Cover. 14 | Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290...
  • Page 15 Fasten 4 screws (T25) through the back flange of the pedestal base into the bottom bracket of the frequency converter. Illustration 15: Installation of Screws in Pedestal Back Flange Secure 8 bolts (fasteners not provided) into the floor mounting holes. Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290 | 15...
  • Page 16: Installing The Top Cover

    Position the top cover over the vent opening in the top of the frequency converter. Secure the top cover to the frequency converter with the screws removed in steps 2 and 3. Torque to 2.3 Nm (20 in-lb). 16 | Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290...
  • Page 17 In-back/Out-back Cooling Kit for FK09c/FB09c and FK10c/FB10c Installation Guide Installation Illustration 17: Top Cover Installation Danfoss A/S © 2023.09 AN371942578354en-000101 / 136R0290 | 17...
