Danfoss 176F4190 Installation Manual page 14

In-back/Out-back Cooling Kit for FK09c/FB09c and FK10c/FB10c
Installation Guide
5. Position the pedestal at the lower end of the frequency converter.
6.
Slide the 2 M10 studs at the back of the pedestal through the slots in the back lower edge of the frequency converter.
7. Fasten 2 M5x18 screws (T25) through the pedestal and front spacer and into the cable access plate.
8.
Fasten 2 M10 nuts (17 mm) to the 2 M10 studs, attaching the pedestal to the frequency converter.

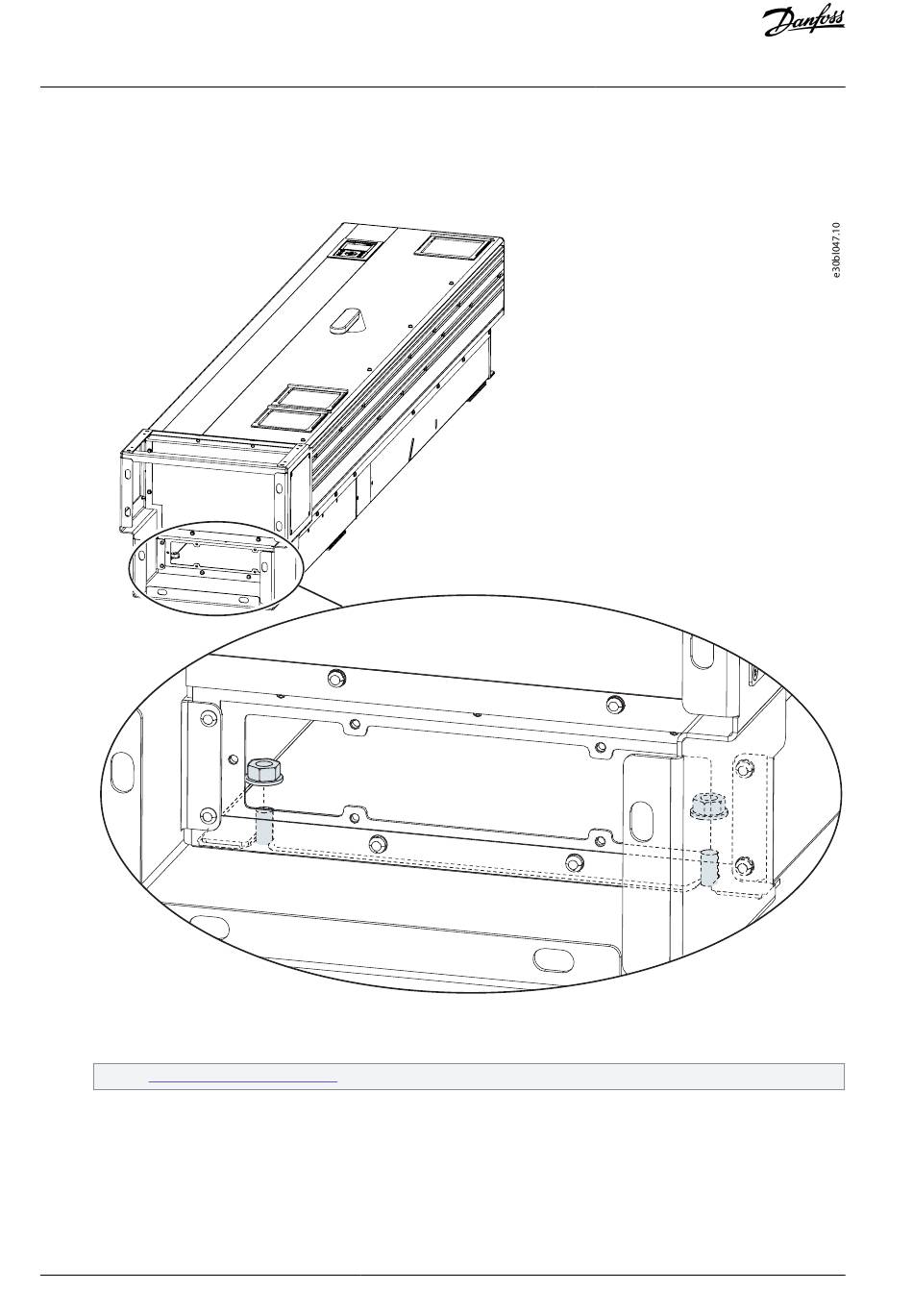

Illustration 14: Installation of M10 Nuts Attaching Pedestal
9.
Install the bottom cover to seal the lower end of the back channel.
Refer to 2.5 Installing the Bottom
14 | Danfoss A/S © 2023.09
Cover.
Installation
AN371942578354en-000101 / 136R0290
