In-back/Out-back Cooling Kit for FK09c/FB09c and FK10c/FB10c
Installation Guide
33.1
(1.3)
62.5
(2.5)
(0.67)

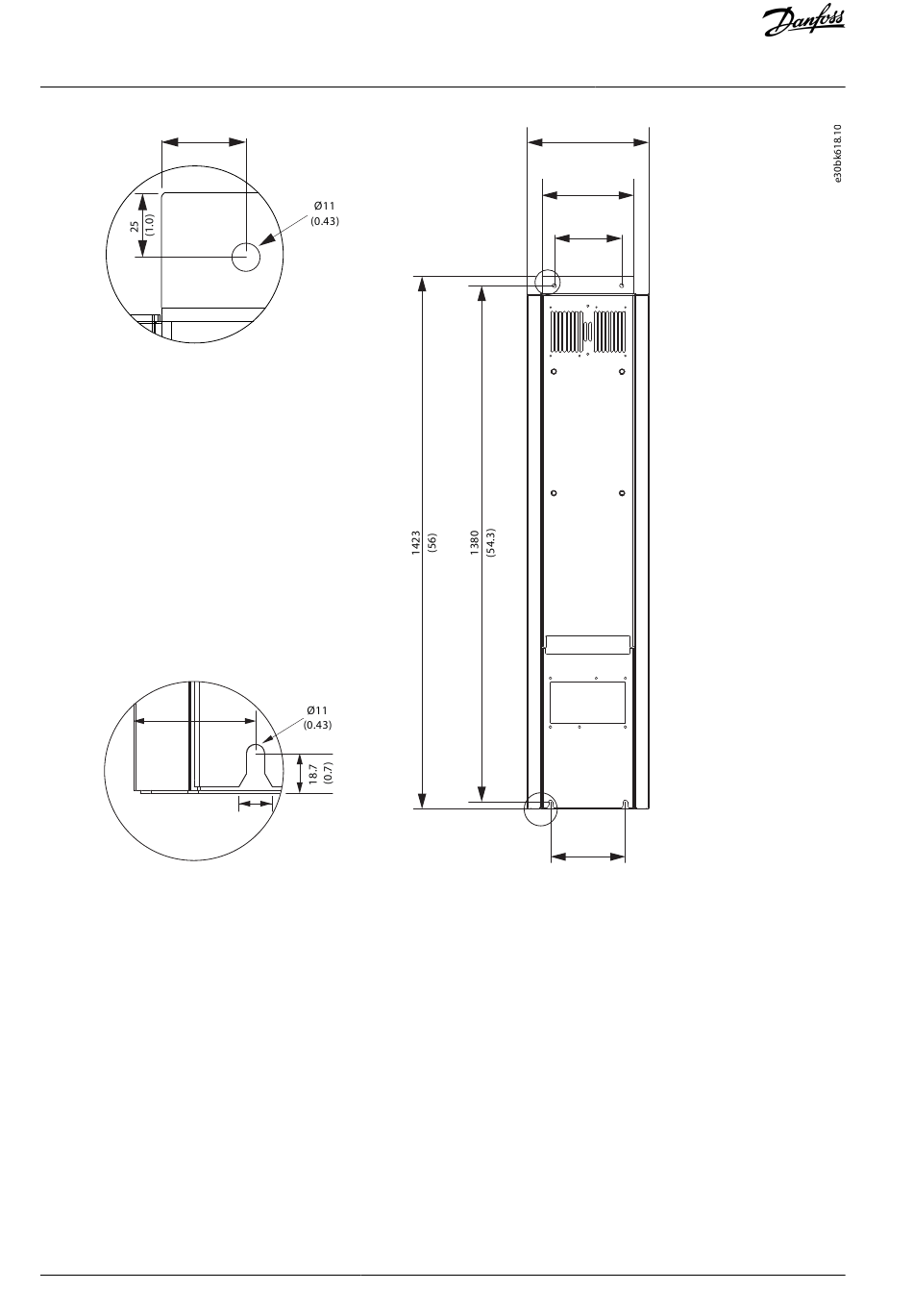

Illustration 8: Dimension for Mounting FK09c Frequency Converter
2. Use 4 M10 bolts, 2 in the upper and 2 in the lower mounting holes.
3. Apply the drive slot gasket over the slots at the back lower edge of the frequency converter.
10 | Danfoss A/S © 2023.09
17
325
(12.8)
246
(9.7)
180
(7.1)
200
(7.9)
AN371942578354en-000101 / 136R0290
Installation
