Unitary products group BCB Series Technical Manual

ECHNICAL
ECHNICAL
GUIDE
GUIDE
SINGLE PACKAGE HEAT PUMP UNITS
BCB 036, 048 & 060
3, 4 & 5 NOMINAL TONS
10.0 SEER
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION

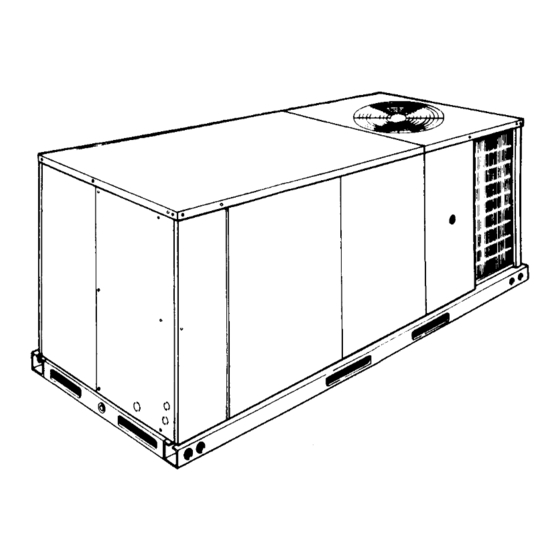

BCB Series heat pumps are convertible single package units
with a common cabinet and a common roof curb for the 3, 4
and 5 ton sizes. The units were designed for light commercial
and commercial applications. They can easily be installed on
a roof curb, slab, roof jack or frame.
All units include:
• Powder Paint finish that meets ASTM-B-117 1000 hour
salt spray standards
• Permanently lubricated motors
• Bottom or side air discharge configuration capability
(field convertible)
• Manufactured under the quality standards of ISO9001
• Copper tube/aluminum fin coils
• Easy access to all components
• Rigging holes in base rails for lifting
• Fork lift slots on three sides
• Single point power connection
• Complete factory package - tested, charged and wired
• CSA agency listing on all units
WARRANTY
• Factory Limited Parts Warranty
• One-year parts warranty
• A Five-year parts warranty on the compressor and
electric heat elements.
257098-BTG-A-0506
