Vega VEGASON 62 Operating Instructions Manual

Vega VEGASON 62 Operating Instructions Manual

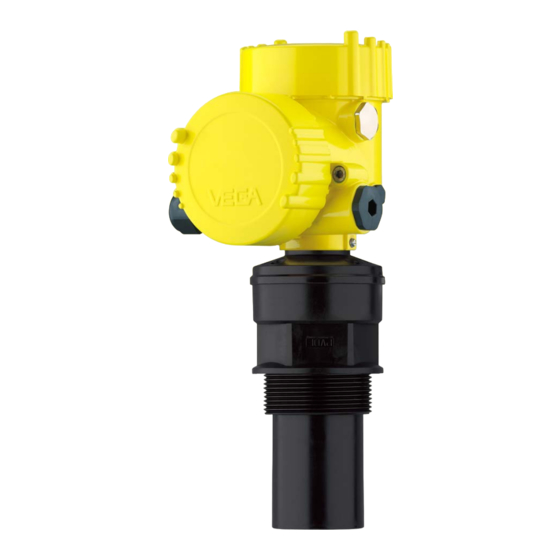

Ultrasonic sensor for continuous level measurement
Hide thumbs Also See for VEGASON 62:

Advertisement

Quick Links

Operating Instructions
Ultrasonic sensor for continuous level
measurement
VEGASON 62
Four-wire 4 ... 20 mA/HART
Document ID: 28779

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGASON 62 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vega VEGASON 62

  • Page 1 Operating Instructions Ultrasonic sensor for continuous level measurement VEGASON 62 Four-wire 4 … 20 mA/HART Document ID: 28779...
  • Page 2: Table Of Contents

    9 Maintenance and fault rectification ..................49 9.1 Maintenance ........................49 Rectify faults ........................49 Exchanging the electronics module ................50 Software update ......................51 How to proceed if a repair is necessary ................51 VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 3 11.4 Trademark ........................58 Safety instructions for Ex areas: Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions. Editing status: 2023-10-24 VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 4: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work.
  • Page 5: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use VEGASON 62 is a sensor for continuous level measurement. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.
  • Page 6: Fulfillment Of Namur Recommendations

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 7: Product Description

    Housing with electronics • Housing cover, optionally available with display and adjustment module PLICSCOM The components are available in different versions. Fig. 1: VEGASON 62, Aluminium double chamber housing Housing cover with integrated PLICSCOM (optional) Housing with electronics, optionally available with plug connector 3 Process fitting with transducer Type label...
  • Page 8: Principle Of Operation

    • Scan the QR code on the type label. • Open the VEGA Tools app and enter the serial number under "Documentation". Principle of operation Application area VEGASON 62 is an ultrasonic sensor for continuous level measure- ment.
  • Page 9: Accessories

    VEGACONNECT The interface adapter VEGACONNECT enables the connection of communication-capable instruments to the USB interface of a PC. VEGADIS 81 The VEGADIS 81 is an external display and adjustment unit for VEGA plics sensors. ® VEGADIS 82 VEGADIS 82 is suitable for measured value indication and adjustment of sensors with HART protocol.
  • Page 10 3 Product description Screwed flanges are available in different versions according to the Flanges following standards: DIN 2501, EN 1092-1, BS 10, ASME B 16.5, JIS B 2210-1984, GOST 12821-80. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 11: Mounting

    (e.g. through cleaning processes) or on cooled or heated vessels. To maintain the housing protection, make sure that the housing lid is closed during operation and locked, if necessary. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 12: Housing Features

    (TDR). Housing features Filter element The filter element in the housing is used for ventilation of the housing. For effective ventilation, the filter element must always be free of deposits. Therefore, mount the device so that the filter element is protected against deposits. Note: Do not use a high-pressure cleaner to clean housings in standard types of protection. The filter element could be damaged and mois- ture could penetrate the housing. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 13 Housing orientation The housing of VEGASON 62 can be rotated completely by 360°. This enables optimal reading of the display and easy cable entry. For housings made of plastic or electropolished stainless steel, this is done without tools.
  • Page 14 3. Check if the cover can no longer be turned The housing cover is unlocked in the opposite way. Note: The locking screw has two holes drilled through the head. Thus it can also be sealed. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 15: Mounting Instructions

    4 Mounting Mounting instructions Screwing in Screw VEGASON 62 into the mounting socket with an appropriate spanner applied to the hexagon of the process fitting. Max. torque see chapter "Technical data". Warning: The housing must not be used to screw the instrument in! Applying tightening force can damage internal parts of the housing.
  • Page 16 10 mm (0.394 in) out of the nozzle. Fig. 8: Recommended socket mounting If the reflective properties of the medium are good, you can mount VEGASON 62 on sockets which are higher than the length of the transducer. You will find recommended values for socket heights in the following illustration. The socket end should be smooth and burr-free, if possible also rounded.
  • Page 17 "clear view" to the measured product. In case of existing vessel installations, a false signal suppression should be carried out during setup. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 18 If there are agitators in the vessel, a false signal suppression should be carried out with the agitators in motion. This ensures that the interfering reflections from the agitators are saved with the blades in different positions. Fig. 13: Agitators Do not mount the instruments in or above the filling stream. Make sure Inflowing medium that you detect the medium surface, not the inflowing product. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 19 (TDR). Standpipe measurement By using a standpipe (surge or bypass tube), the influence of vessel installations, foam generation and turbulence is excluded. Standpipes must extend all the way down to the requested min. level, as measurement is only possible within the tube. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 20 Fig. 15: Standpipe in the tank Vent hole: ø 5 … 10 mm (0.197 … 0.394 in) VEGASON 62 can be used from tube diameters of 50 mm (1.969 in). Avoid large gaps and thick welding joints when connecting the tubes.
  • Page 21 • Installation of the sensor at the inlet side • Installation in the centre of the flume and vertical to the liquid surface • Distance to the Venturi flume • Distance of the sensor to the max. height of damming by taking the blocking distance into account VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 22: Connecting To Power Supply

    The ground terminal on the outside of the housing must be connected to the ground potential (low impedance). In Ex systems, the grounding is carried out according to the installa- tion regulations. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 23: Connection Procedure

    9. Connect the shielding to the internal ground terminal, connect the external ground terminal to potential equalisation 10. Tighten the compression nut of the cable entry gland. The seal ring must completely encircle the cable VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 24: Wiring Plan, Double Chamber Housing

    I 2 C 5 6 7 8 Fig. 20: Electronics compartment - double chamber housing Plug connector for VEGACONNECT (I²C interface) Internal connection cable to the connection compartment Terminals for VEGADIS 81 VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 25: Switch-On Phase

    Fig. 22: Wiring plan - double chamber housing Voltage supply Signal output Switch-on phase Switch-on phase After connecting VEGASON 62 to power supply or after a voltage recurrence, the instrument carries out a self-check for approx. 30 seconds: • Internal check of the electronics •...
  • Page 26 5 Connecting to power supply Then the corresponding current is output to the cable (the value corresponds to the actual level as well as the settings already carried out, e.g. factory setting). VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 27: Set Up With The Display And Adjustment Module Plicscom

    The display and adjustment module is powered by the sensor, an ad- ditional connection is not necessary. Fig. 23: Insert display and adjustment module Note: If you intend to retrofit the instrument with a display and adjustment module for continuous measured value indication, a higher lid with an inspection glass is required. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 28: Adjustment System

    Approx. 60 minutes after the last pressing of a key, an automatic reset to measured value indication is triggered. Any values not confirmed with [OK] will not be saved. Setup steps Address setting HART In HART-Multidrop mode (several sensors on one input) the address multidrop must be set before continuing with the parameter adjustment. You VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 29 These settings can be made ahead of time without the instrument having to be installed. Proceed as follows: Basic adjustment - Min. adjustment 1. Move from the measured value display to the main menu by pushing [OK]. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 30 (with liquids); dust generation, material cones and echoes from the vessel wall (with solids). To adapt the sensor to these different conditions, you should first select "Liquid" or "Solid". VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 31 - and the indication or output of the volume is required. Corresponding linearisation curves are preprogrammed for these vessels. They represent the correlation between the level per- centage and vessel volume. By activating the appropriate curve, the VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 32 0 % and 100 % of the measured value. There is the following relationship between the indication value in the menu "Display" and the adjustment unit in the menu "Device settings": VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 33 • Min. and max. temperature Peak indicator Diagnosis - Measurement When non-contact level sensors are used, the measurement can be reliability influenced by the respective process conditions. In this menu item, the measurement reliability of the level echo is displayed as a dB value. Measurement reliability equals signal strength minus noise. The VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 34 With the [OK] key, a submenu with zoom functions is opened. The following functions are available with "Echo and false echo curve": • "X-Zoom": Zoom function for the meas. distance • "Y-Zoom": 1, 2, 5 and 10x signal magnification in "dB" • "Unzoom": Reset the presentation to the nominal measuring range without magnification VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 35 Service - Extended set- The menu item "Extended setting" offers the possibility to optimise ting VEGASON 62 for applications in which the level changes very quickly. To do this, select the function "Quick level change > 1 m/min.". VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 36 Percent Value of the current output in case of failure, e.g. if no valid measured value is delivered. This value is not underrun during operation. This value is not exceeded during operation. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 37 Current output - min. current 3.8 mA Current output - failure < 3.6 mA Sensor-specific basic adjustment. Depending on the sensor type, see chapter "Technical data". Depending on the sensor type, see chapter "Technical data". VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 38 Italiano • Netherlands • Japanese • Chinese Language German Service - SIL The functional safety is already activated Ex factory for instruments with SIL qualification. For instruments Ex factory without SIL qualifica- Special parameters are parameters which are set customer-specifically on the service level with the adjustment software PACTware. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 39 • Displayed value • Display unit • Scaling • Current output • Unit of measurement • Language The 4 … 20 mA signal of the sensor is switched off. The sensor uses a constant current of 4 mA. The measuring signal is transmitted exclusively as a digital HART signal. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 40 Date of manufacture: Date of the factory calibration • Software version: Edition of the sensor software Date of manufacture Software version • Date of last change using PC: Date of the last change of sensor parameters via PC VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 41: Menu Schematic

    Basic adjustment Display Diagnostics Service Info Min. adjustment Max. adjustment Medium Vessel shape 0.00 % 100.00 % Liquid Storage tank 4.000 m(d) 1.000 m(d) 3.000 m(d) 2.000 m(d) Damping Linearisation curve Sensor-TAG Linear Sensor VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 42 Peak indicator Measurement reliability Curve selection Echo curve Distance min.: 0.234 m(d) 36 dB Distance max.: 5.385 m(d) Device status Echo curve Presentation of the echo curve T-min.: 16.5 °C T-min.: 37.5 °C VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 43: Saving The Parameterisation Data

    In the display and adjust- If the instrument is equipped with a display and adjustment module, ment module the parameter adjustment data can be saved in it. The data remain VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 44 6 Set up with the display and adjustment module PLICSCOM permanently stored there even if the sensor supply fails. The proce- dure is described in menu item "Copy sensor data". VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 45: Setup With Pactware

    Via interface adapter external TWIST Fig. 27: Connection via interface adapter VEGACONNECT external I²C bus (com.) interface on the sensor I²C connection cable of VEGACONNECT Interface adapter VEGACONNECT USB cable to the PC VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 46: Parameter Adjustment

    Processing system/PLC Note: With power supply units with integrated HART resistance (internal resistance approx. 250 Ω), an additional external resistance is not necessary. This applies, e.g. to the VEGA instruments VEGATRENN 149A, VEGAMET 381 and VEGAMET 391). Commercially available Ex separators are also usually equipped with sufficient current limita- tion resistance. In such cases, VEGACONNECT can be connected parallel to the 4 … 20 mA cable.
  • Page 47: Save Parameter Adjustment Data

    Fig. 29: Example of a DTM view Save parameter adjustment data We recommend documenting or saving the parameterisation data via PACTware. That way the data are available for multiple use or service purposes. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 48: Set Up With Other Systems

    8 Set up with other systems Set up with other systems DD adjustment programs Device descriptions as Enhanced Device Description (EDD) are available for DD adjustment programs such as, for example, AMS™ and PDM. The files can be downloaded at www.vega.com/downloads under "Software". VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 49: Maintenance And Fault Rectification

    Check, adapt if necessary ance too high Current signal greater than Sensor electronics defective Replace device or send in for repair de- 22 mA, less than 3.6 mA pending on device version VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 50: Exchanging The Electronics Module

    24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock.
  • Page 51: Software Update

    Print the generated instrument return form. Clean the instrument and pack it damage-proof. Send the printed instrument return form and possibly a safety data sheet together with the device. You will find the address for the return on the generated instrument return form. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 52: Dismount

    If personal data is stored on the old device to be disposed of, delete it before disposal. If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 53: Supplement

    Ʋ HART value (Primary Value) Distance to the level Ʋ HART value (Secondary Value) Temperature Ʋ HART value (3rd Value) Distance to the level - scaled Glass (with Aluminium and stainless steel precision casting housing) VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 54 Adjustment time > 3 s (dependent on the parameter adjustment) With inductive load ohmic share min. 25 Ω/mH. Incl. non-linearity, hysteresis and non-repeatability. Time to output the correct level (with max. 10 % deviation) after a sudden level change. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 55 Bluetooth LE Ʋ Effective range 25 m (82.02 ft) Protection rating Ʋ unassembled IP20 Ʋ Mounted in the housing without lid IP40 Relating to the nominal measuring range. Tested according to the guidelines of German Lloyd, GL directive 2. VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 56: Dimensions

    For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded by entering the serial number of your instrument into the search field under www.vega.com as well as in the general download area. 11.2 Dimensions The listed drawings represent only an excerpt of the available process fittings. You can find more...
  • Page 57 ") ø 74mm ") Fig. 32: VEGASON 62 Dead zone: 0.4 m (1.312 ft) Measuring range: with liquids up to 8 m (26.25 ft), with solids up to 3.5 m (11.48 ft) VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 58: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 59 Notes VEGASON 62 • Four-wire 4 … 20 mA/HART...
  • Page 60 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2023 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
