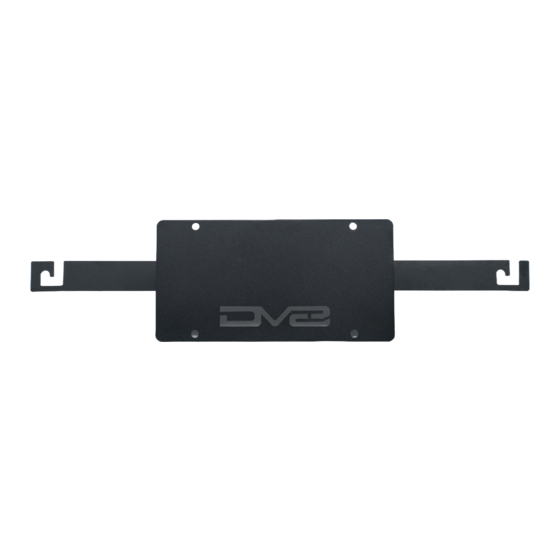

CAPABLE BUMPER LICENSE
PLATE MOUNT
21+ FORD BRONCO
LPBR-05
TOOLS
REQUIRED
- 10, 13mm Wrench
- #4 Allen Bit
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you)
Little skill level required, you can
easily install it by yourself.l
Read and understand all
PRODUCT
INSTALLATION
TIME
- .5 Hour
Time to install this should only
take about half an hour.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Related Manuals for DV8 OFFROAD LPBR-05
Summary of Contents for DV8 OFFROAD LPBR-05
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (4) M6x15 Allen (2) M5 Nylon Lock Nuts (8) M6 Flat Washers (2) M5 Nut Caps...
- Page 3 INSTALLATION MANUAL STEP 2 | Use a #4 allen bit and 10mm wrench to secure the license plate to the bracket. STEP 3 | Use a 10mm wrench to loosen the two factory bolts located between the bumper and skid plate, directly below the two front inner sensors on the bumper.
- Page 4 INSTALLATION MANUAL STEP 4 | Hook one side of the bracket to the first bolt and swing the other side up into place. STEP 5 | When the bracket is pushed up into place, slide it to the driverside and then pull it down to seat it into place.
- Page 5 INSTALLATION MANUAL STEP 6 | Use a 13mm wrench to secure the factory hardware. STEP 7 | Congrats! You are finished with the install of the 21+ Bronco Capable Bumper License Plate Bracket. NEED HELP? 855-680-9595...
