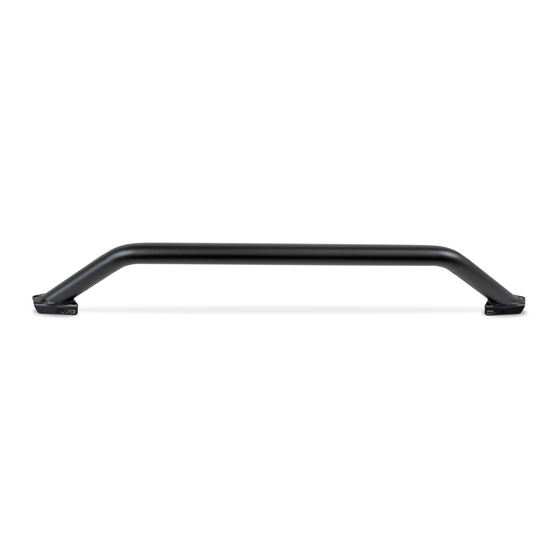

CAPABLE BULL BAR
21+FORD BRONCO W/FACTORY CAPABLE BUMPER
LBBR-09
TOOLS
REQUIRED
- #4 & #6 Allen Head Tool
- 27/64ths" Metal Drill Bit
- Painters Tape
- Measuring tape
- Rivnut Tool
- Safety Glasses
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
555 E Queen Creek Rd
Bldg A
Chandler, AZ 85286
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
INSTALLATION
PRODUCT
TIME
- 2 Hours
Time to install this should only
take about an hour
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD LBBR-09
Summary of Contents for DV8 OFFROAD LBBR-09
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (6) M8x20mm Allen Head (2) M6 Lock Washers Bolts (2) M6 Flat Washers...
- Page 3 INSTALLATION MANUAL STEP 3 | Install the provided foam foot pads on to the bull bar. 855-680-9595 NEED HELP?
- Page 4 INSTALLATION MANUAL STEP 4 | Use a tape measure to find the center of the bumper. For our install we measured from fog light surround to fog light surround. Tech Tip: Place a small piece of painters tape to mark center point of bumper. STEP 5 | With the center of the bumper marked, hold the bull bar on...
- Page 5 INSTALLATION MANUAL STEP 6 | With the bull bar centered, mark the 3 holes on each side that will need to be drilled into the bumper. Removing the bumper may make it easier to drill for the next steps. See the end of the install for instructions on how to remove the factory Capable bumper.
- Page 6 INSTALLATION MANUAL STEP 9 | Place the bull bar back onto the bumper, loosely secure the bull bar to the bumper using the provide M8 hardware and a #5 Allen tool. Note: Use (1) M8 flat washer and (1) M8 split washer per Allen head bolt.
- Page 7 INSTALLATION MANUAL STEP 10 | The bull bar comes with (2) optional light mounting brackets that will accept up to (1) 20” light bar or (2) 3” light pods on top or bottom. Mount the (2) provided brackets using the provided M6 hardware and a #4 Allen tool.
- Page 8 INSTALLATION INSTALLATION MANUAL MANUAL STEP 12 | Using a trim tool, pop off the front plastic covers. You can see where the clips are located. STEP 13 | Disconnect cable from sensor on each plastic cover. 855-680-9595 855-680-9595 NEED HELP? NEED HELP?
- Page 9 INSTALLATION INSTALLATION MANUAL MANUAL STEP 14 | On the driver side, disconnect the large plug for the bumper wire harness. STEP 15 | To gain better access to the plug, use a push pin tool to release the plug from the body. 855-680-9595 855-680-9595 NEED HELP?
- Page 10 INSTALLATION INSTALLATION MANUAL MANUAL STEP 16 | Using a 15mm socket, remove the three bolts on each side. Note: Once the bolts have been removed, the bumper can fall. STEP 17 | Remove the bumper and continue the install for the bull bar. 855-680-9595 855-680-9595 NEED HELP?
