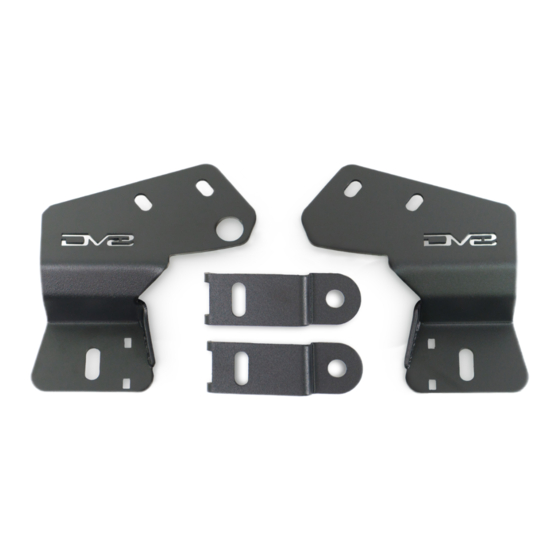

BRONCO DROP-POD MOUNT
21+ FORD BRONCO
LBBR-08
TOOLS
REQUIRED
- T-30 Torx Bit
- Automotive Trim Pry Tool
- Safety Glasses
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you)
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1 Hour
Time to install this should only
take about an hour
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD LBBR-08
Summary of Contents for DV8 OFFROAD LBBR-08
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. STEP 1 | Using a T30 Torx Bit, remove the (2) accessory ready bolts from the side mirror.
- Page 3 INSTALLATION MANUAL STEP 2 | Using a Automotive Trim Pry Tool, gently pry up on side mirror plastic trim. Carefully guide pod light wiring harnesses under the plastic, follow your light kit’s install instructions to power lights. NEED HELP? 855-680-9595...
- Page 4 INSTALLATION MANUAL STEP 3 | Loosely secure the DV8 Drop-Pod mount to the side mirror using a factory Torx screw previously removed. STEP 4 | Passenger side: Guide antenna through the DV8 mount and lay the mount into place, then loosely secure the DV8 mount to side mirror.
- Page 5 INSTALLATION MANUAL STEP 5 | If you are running pod lights, secure the pod-light bracket on of the DV8 mount using factory hardware and a T30 Torx bit. If you are not running lights in this location, secure the DV8 mount using the factory hardware with a T30 torx bit.
- Page 6 INSTALLATION MANUAL STEP 7 | If you are running upper pod lights, finish installing them to the mounting brackets that were provided with the light. If you are running lower pod lights, install them at this time using the hardware provided with the light.
- Page 7 INSTALLATION MANUAL STEP 9 | Congratulation, you are finished installing the 21+ Bronco DV8 Drop Style Pod Lights! NEED HELP? 855-680-9595...
