CommScope RUCKUS R760 Quick Setup Manual

R760 Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how to install
and begin using your RUCKUS R760 Tri-Band 802.11ax Indoor Wi-Fi Access
Point (AP). After completing the steps described in this guide, you will be
able to place the R760 at your site and begin providing wireless access to
users.

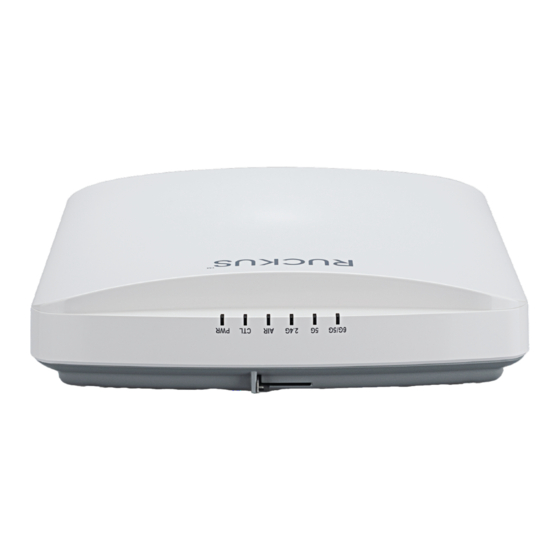

FIGURE 1 R760 Access Point: Top View
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
http://
docs.commscope.com/?docs-box.
• Vous trouverez la version française de ce guide à l'adresse suivante
http://docs.commscope.com/?docs-box.
• このガイドの日本語版は
http://docs.commscope.com/?docs-box
ご覧ください。
• 이 가이드의 한국어 버전은 웹 사이트
(http://docs.commscope.com/?
docs-box) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
docs.commscope.com/?docs-box
• Puede ver la versión en español (América Latina) de esta guía en
docs.commscope.com/?docs-box
Before You Begin
Before deploying RUCKUS products, please check for the latest software
and the release documentation.
• Release Notes and other user documentation are available at
support.ruckuswireless.com/documents.
• Software upgrades are available at http://support.ruckuswireless.com/
software.
• Software license and limited warranty information are available at
http://support.ruckuswireless.com/warranty.
RUCKUS WLAN Configuration for 6.0 GHz APs
For configuring a 6.0 GHz WLAN, download the document from
support.ruckuswireless.com/documents/4017 for reference.
Copyright © 2022 CommScope, Inc. All rights reserved.
Published April 2022, Part Number 800-72756-001 Rev A
Package Contents
A complete R760 installation package includes all of the following items:
• R760 Access Point
• One wall-mount anchor kit, including two 1-inch No. 8 steel pan-head
Phillips sheet metal screws and two wall-mount anchors
• One external T-bar bracket (five unassembled parts)
• One M3 x 8-mm screw with flat and lock washer
• One safety cable 300-mm length
• Declaration of Conformity/Regulatory flyer
Required Hardware Tools
• Admin PC (computer with an ethernet port and Wi-Fi adapter)
• CAT6 (or better) ethernet cable
• RUCKUS Wireless 48 VDC power adapter (sold separately) or
802.3at/bt-compliant Power over Ethernet (PoE) switch or PoE injector
• T15 security torx bit
Optional hardware and tools:
• Customer-supplied small padlock with a 3.5-mm (0.14-in.) or smaller
shackle diameter, used to fasten the AP to the secure mounting bracket
or the T-bar bracket.
• Customer-ordered Ruckus Wireless 902-0120-0000 secure mounting
bracket kit:
– If you are mounting the AP on a flat surface using the secure
mounting bracket kit, then you need an electric drill with 4.75-mm
(3/16-in.) drill bits.
– If you are mounting the AP on a pipe or pole using the secure
mounting bracket kit, then you will also need a 38.1-mm to 63.5-mm
(1.5-in. to 2.5-in.) pipe or pole, two pole clamps, and hand tools to
tighten the clamps.
Step 1: Connecting Your Computer to the AP
1. Using an Ethernet cable, connect your computer's network port to
the 10G ETH PoE port on the AP. Refer to
で
2. Connect the AC cable of the AC power adapter to a convenient and
protected power source. Connect the DC output cable of the AC
power adapter to the 48 VDC port on the AP.
http://
NOTE: Alternatively, connect the 10G ETH PoE port to a PoE
injector or switch for both power and network connectivity.
http://
NOTE: The PoE switch port must run the link layer discovery
protocol (LLDP) and power over Ethernet/MDI (PoE+) for AP R760
to operate in full-power mode. This may require enabling both
LLDP and Power through MDI (802.3) on the switch, if available.
NOTE: If AP is powered by 802.3at PoE, supported feature set is
http://
reduced. For more details, refer to the product data sheet. For full
functionality, it is recommended to use 802.3bt-compliant PoE to
power the AP.
https://
FIGURE 2 R760 Elements on Bottom Panel
LED Signals
LED signal indicator options are:
• Power: Green, Red
• Control: Green
• AIR: Green, Amber
• 2.4G: Green, Amber
• 5G: Green, Amber
• 6G: Blue, Green, Amber
TABLE 1 R760 Bottom Panel Elements
No.
1
Figure 2.
2
3
4
5
3. Verify that the PWR LED on the AP is lit a steady green.
Label Description
USB USB Port
• Maximum Dimensions: 6 cm x 2 cm x
1.1 cm
• Interface: USB 2.0
• Connector: USB – Type-A plug
Reset Performs a soft reset if pressed less than
switch 5 seconds. Performs a factory reset if
pressed more than 5 seconds. Can be
accessed using a thin wire.
48V 1.25A@48V is the recommended rating
1.25A for the PSU.
1G ETH 10/100/1000 Mbps port: RJ-45 Ethernet
port (non-PoE)
10G ETH 100/1000/2500/5000/10000 Mbps PoE
PoE In Port: RJ-45 Ethernet port (supports
802.3at/bt PoE in)
