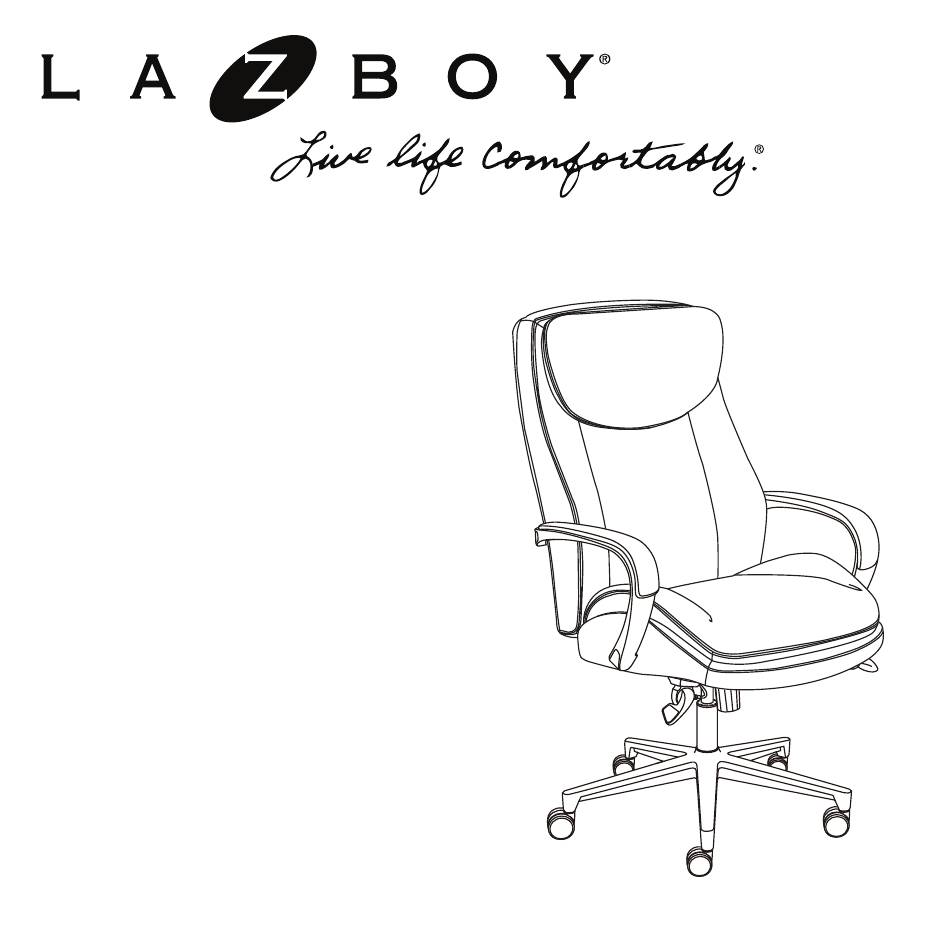

- Page 1 Designed to be comfortable, and built to stay that way. Commerical 2000 Series Executive Chair Assembly Instructions LZB-48956 (400 lbs) Model LZB-48957 (300 lbs)
- Page 2 PARTS Casters Star Base Gas Lift Seat Plate Quantity: 5 Quantity:1 Quantity: 1 Quantity: 1 Left Arm Right Arm Seat Cushion Back Cushion Quantity: 1 Quantity: 1 Quantity:1 Quantity: 1 1” Screws 1-1/2” Screws 1-1/4” Screws 1-1/2” Screws with Spring Washers Quantity: 2 Quantity: 2 Quantity: 4...
- Page 3 Step 1 Place the Star Base (B) upside down and insert 5 Casters (A) into the holes on the Star Base (B). Step 2 Turn the Star Base (B) over and insert the Gas Lift (C) through the center hole on top of Star Base (B).
- Page 4 Step 3 Attach Seat Plate (D) to the bottom of the Seat Cushion (F) (with the front of the seat plate facing the front of seat cushion). Attach by using 1-1/2” Screws (I) for the front holes of the Seat Plate (D) and 1”...
- Page 5 Step 5 Align the Back Cushion (G) with the Seat Cushion (F) by positioning the back support plate over the Seat Plate (D) with 1-1/4” Screws (J). *Note: Do not tighten the screws completely. Step 6 Insert 1-1/2” Screws with Spring Washers (K) into arm holes, attaching Arms (E1 &...
- Page 6 Step 7 Pull down the metal plate of Back Cushion (G) and attach it over to the Seat Plate (D) by using 5/8” Knob (M). Tighten the knob. Step 8 Position the assembled chair upright with the seat plate facing down.
- Page 7 Step 9 Place the Arm Inserts (L1, L2, R1 & R2) into arm grooves once all screws have been tightened.
-
Page 8: Function Instruction
Operating Instructions Function Instruction - 1 To Adjust Seat Height: While seated, lean forward and reach under the right side of the chair to find the lever. Lift the lever and raise your body up slightly to allow the chair to rise to the desired height. Once desired height is reached, release lever to lock chair at desired height. - Page 9 Function Instruction - 3 To Adjust Tension On The Tilt: Reach under the front center of the chair, grasp the round knob (S) and turn it counter- clockwise to stiffen the tilt mechanism for a heavier user. Turn the knob (S) clockwise to loosen the tilt mechanism for a lighter user.
- Page 10 Function Instruction - 5 Featuring Dynamic Lumbar Support Back Health Technology: Patented Dynamic Lumbar Support allows the lumbar zone to change from full support to relaxed as you shift your sitting position from upright to reclined. The chair can be locked in the upright position using the tilt lockout for constant lumbar support while in a work posture.
- Page 12 YEAR Limited Warranty LA-Z-BOY is a trademark of La-Z-Boy Incorporated and is used under license to LF Products Pte Ltd.
