Crestron UC-BX31-Z-WM Quick Start Manual

UC-BX31-Z-WM
Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast®
50 Video Bar and Wall Mounted Control Interface for Zoom Rooms® Software
Front-of-room video conferencing solution for Zoom
l
Rooms® software
Present, call, conference, and collaborate using your own
l
device's UC conference platform (BYOD) or the native
Zoom Rooms® platform
Native Zoom Rooms® touch screen UI provides a consistent,
l
simple user experience with one-touch meeting joins
Complete kit contains a 10.1 in. wall mount touch screen,
l
Jabra® PanaCast® 50 video bar for Crestron Flex systems,
UC bracket assembly, UC presentation transmitter, and
PoE injector— just add a display and mount
Easy to specify and install — no custom design,
l
programming, or software installation required
Network management and provisioning and system alerts
l
through the XiO Cloud® service
Premium-level support with Crestron Flex Care (optional)
l
Enterprise-grade security - connects and communicates
l
securely over any enterprise or SMB network
Supports up to three video displays (not included)
l

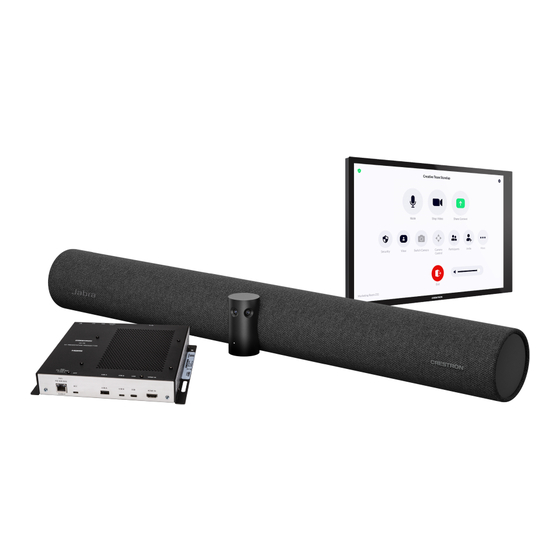

The UC-BX31-Z-WM Crestron Flex advanced wall mount
conferencing system provides a small room video conference
solution for use with Zoom Rooms® software. It supports up
to three video displays 1 (not included) and features a wall
mount touch screen, Jabra® PanaCast® 50 video bar for
Crestron Flex systems, UC bracket assembly, UC presentation
transmitter, PoE injector, and cables.
Native Zoom Rooms® Software Experience
The UC-BX31-Z-WM system features Zoom Rooms
conferencing software that enables audio and video
connectivity for easy collaboration and content sharing.
Intuitive User Interface
With a large 10.1 in. (257 mm) capacitive touch screen display,
the Crestron® wall mount touch screen (TSW-1070) provides
superior conferencing control in meeting rooms, huddle
spaces, and executive offices. The touch screen also offers
optional control of room lighting, shades, thermostats, and
2
other equipment.
Simplified Deployment
The UC Bracket Assembly provides preassembled components
on one ready-to-mount bracket to simplify installation. The
assembly can be mounted on a wall, or it can be attached to
the rear of the display device.
Wall Mount Options
Using the bracket provided, the touch screen is easily installed
over a 2-gang or 3-gang US electrical box, or a 2-gang
European or UK electrical box. A security latch option is
included to deter unauthorized removal of the touch screen.
High-Definition Video Conferencing with Impressive Audio
High-quality speakers and microphones deliver exceptional
full-duplex performance from the Jabra PanaCast 50 video
bar for Crestron Flex systems (UC-SB-P50). Three built-in
conferencing cameras capture the room in panoramic 4K
resolution with a seamless 180° horizontal field of view.
Visit jabra.com/panacast50
Jabra PanaCast 50 video bar for Crestron Flex systems.
Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the
Crestron Flex system to use their own UC conference
platform. The UC Presentation Transmitter (UC-PR) switches
to the connected laptop's UC platform and returns to the
native platform when disconnected.
devices on the UC-PR, refer to
Enterprise-Grade Security
Crestron Flex is an enterprise-grade solution that is ideally
equipped for mass deployment throughout any sized
corporate, university, medical, military, or government facility.
for more information on the
3 For a list of BYOD tested
OLH Article 1000889.
