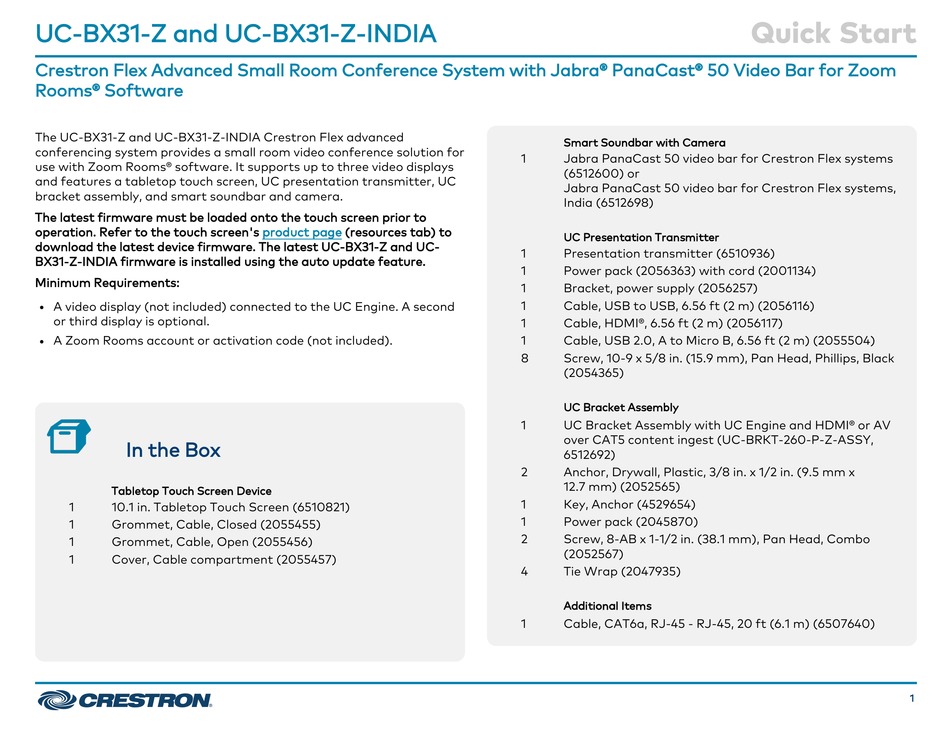

Crestron UC-BX31-Z-INDIA Quick Start Manual

UC-BX31-Z and UC-BX31-Z-INDIA
Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast® 50 Video Bar for Zoom
Rooms® Software
The UC-BX31-Z and UC-BX31-Z-INDIA Crestron Flex advanced
conferencing system provides a small room video conference solution for
use with Zoom Rooms® software. It supports up to three video displays
and features a tabletop touch screen, UC presentation transmitter, UC
bracket assembly, and smart soundbar and camera.
The latest firmware must be loaded onto the touch screen prior to
operation. Refer to the touch screen's
download the latest device firmware. The latest UC-BX31-Z and UC-
BX31-Z-INDIA firmware is installed using the auto update feature.
Minimum Requirements:
A video display (not included) connected to the UC Engine. A second
l
or third display is optional.
A Zoom Rooms account or activation code (not included).
l
In the Box
Tabletop Touch Screen Device
1 10.1 in. Tabletop Touch Screen (6510821)
1 Grommet, Cable, Closed (2055455)
1 Grommet, Cable, Open (2055456)
1 Cover, Cable compartment (2055457)
product page (resources tab) to
Smart Soundbar with Camera
1 Jabra PanaCast 50 video bar for Crestron Flex systems
(6512600) or
Jabra PanaCast 50 video bar for Crestron Flex systems,
India (6512698)
UC Presentation Transmitter
1 Presentation transmitter (6510936)
1 Power pack (2056363) with cord (2001134)
1 Bracket, power supply (2056257)
1 Cable, USB to USB, 6.56 ft (2 m) (2056116)
1 Cable, HDMI®, 6.56 ft (2 m) (2056117)
1 Cable, USB 2.0, A to Micro B, 6.56 ft (2 m) (2055504)
8 Screw, 10-9 x 5/8 in. (15.9 mm), Pan Head, Phillips, Black
(2054365)
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® or AV
over CAT5 content ingest (UC-BRKT-260-P-Z-ASSY,
6512692)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1 Key, Anchor (4529654)
1 Power pack (2045870)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
Quick Start
1
