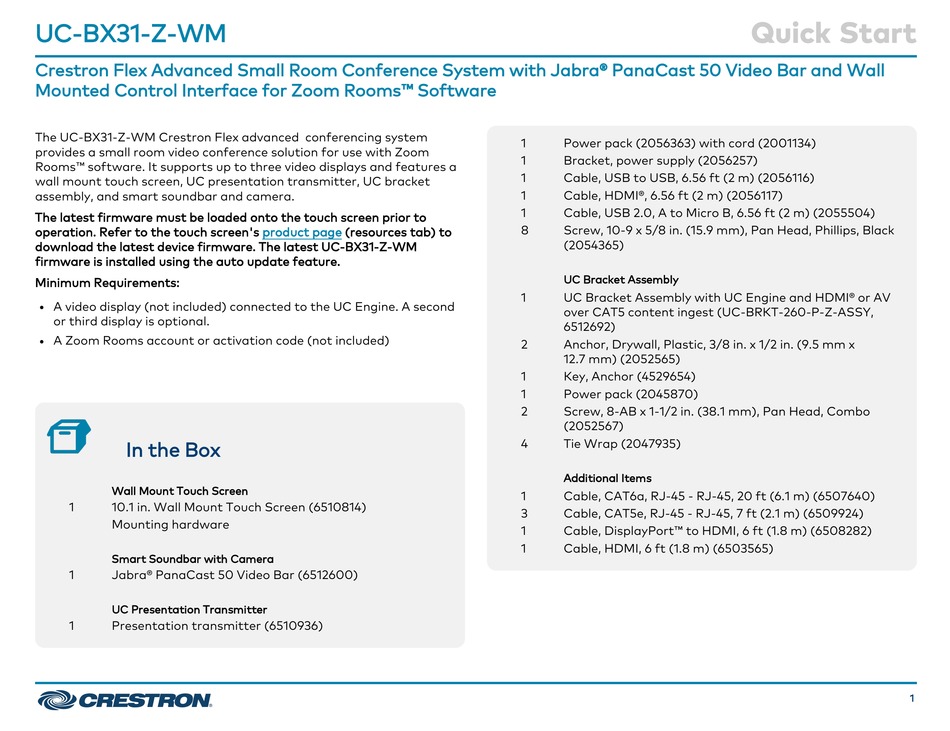

UC-BX31-Z-WM
Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall
Mounted Control Interface for Zoom Rooms™ Software

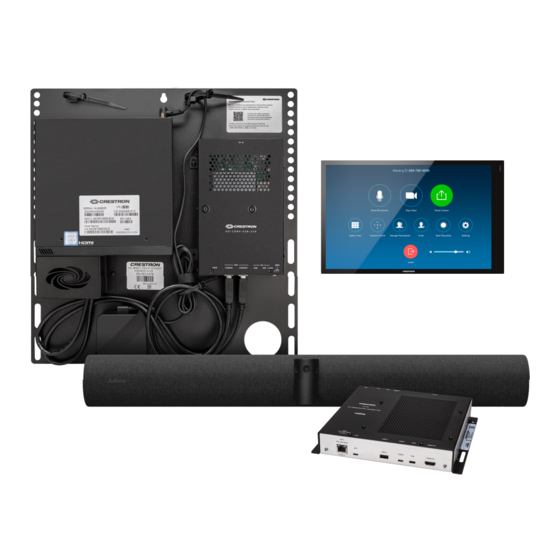

The UC-BX31-Z-WM Crestron Flex advanced conferencing system
provides a small room video conference solution for use with Zoom
Rooms™ software. It supports up to three video displays and features a
wall mount touch screen, UC presentation transmitter, UC bracket
assembly, and smart soundbar and camera.
The latest firmware must be loaded onto the touch screen prior to
operation. Refer to the touch screen's
download the latest device firmware. The latest UC-BX31-Z-WM
firmware is installed using the auto update feature.
Minimum Requirements:
A video display (not included) connected to the UC Engine. A second
l
or third display is optional.
A Zoom Rooms account or activation code (not included)
l
In the Box
Wall Mount Touch Screen
1
10.1 in. Wall Mount Touch Screen (6510814)
Mounting hardware
Smart Soundbar with Camera
1
Jabra® PanaCast 50 Video Bar (6512600)
UC Presentation Transmitter
1
Presentation transmitter (6510936)
product page
(resources tab) to
1
Power pack (2056363) with cord (2001134)
1
Bracket, power supply (2056257)
1
Cable, USB to USB, 6.56 ft (2 m) (2056116)
1
Cable, HDMI®, 6.56 ft (2 m) (2056117)
1
Cable, USB 2.0, A to Micro B, 6.56 ft (2 m) (2055504)
8
Screw, 10-9 x 5/8 in. (15.9 mm), Pan Head, Phillips, Black
(2054365)
UC Bracket Assembly
1
UC Bracket Assembly with UC Engine and HDMI® or AV
over CAT5 content ingest (UC-BRKT-260-P-Z-ASSY,
6512692)
2
Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1
Key, Anchor (4529654)
1
Power pack (2045870)
2
Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4
Tie Wrap (2047935)
Additional Items
1
Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
3
Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1
Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1
Cable, HDMI, 6 ft (1.8 m) (6503565)
Quick Start
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flex UC-BX31-Z-WM and is the answer not in the manual?

Questions and answers

Summary of Contents for Crestron Flex UC-BX31-Z-WM

  • Page 1 Quick Start UC-BX31-Z-WM Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted Control Interface for Zoom Rooms™ Software The UC-BX31-Z-WM Crestron Flex advanced conferencing system Power pack (2056363) with cord (2001134) provides a small room video conference solution for use with Zoom Bracket, power supply (2056257) Rooms™...
  • Page 2: Mount Devices

    Quick Start UC-BX31-Z-WM Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted Control Interface for Zoom Rooms™ Software Mount Devices Mount the UC Bracket Assembly Mount the UC Bracket Assembly to VESA® compliant display devices, a wall, or other building structure.
  • Page 3: System Overview

    Quick Start UC-BX31-Z-WM Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted Control Interface for Zoom Rooms™ Software Connect System Overview When connections are complete, the system appears as shown below. The laptop connections shown below may vary based on the selected connection method.
  • Page 4: Make Connections

    Quick Start UC-BX31-Z-WM Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted Control Interface for Zoom Rooms™ Software Make Connections 1. Make UC Engine connections as shown in the following illustration.
  • Page 5 Quick Start UC-BX31-Z-WM Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted Control Interface for Zoom Rooms™ Software 2. Connect the power supply and the soundbar to the bottom of the content ingest device (HD-CONV-USB-260). Connect the power supplies to an...
  • Page 6 Quick Start UC-BX31-Z-WM Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted Control Interface for Zoom Rooms™ Software 3. Connect power, the content ingest device (HD-CONV-USB-260), and LAN to the top of the UC Presentation Transmitter.
  • Page 7 Quick Start UC-BX31-Z-WM Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted Control Interface for Zoom Rooms™ Software 4. Connect the touch screen to the bottom of the UC Presentation Transmitter.
  • Page 8 Quick Start UC-BX31-Z-WM Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted Control Interface for Zoom Rooms™ Software 5. Connect a laptop to the HDMI and USB B ports on the bottom of the UC Presentation Transmitter. Select a connection type based on the available ports on the user's laptop.
  • Page 9: Apply Power

    Quick Start UC-BX31-Z-WM Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted Control Interface for Zoom Rooms™ Software 4. Log in to the Zoom Rooms service with an activation code or Zoom Rooms Credentials (email and password).
  • Page 10 Quick Start UC-BX31-Z-WM Crestron Flex Advanced Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted Control Interface for Zoom Rooms™ Software Additional Information Visit the Product Page Original Instructions Scan the QR code to visit the product page.
