DRUM PUMP
USER MANUAL
Model:
YOILP-HG0015A，YOILP-D490
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

loading
Need help?

Need help?

Do you have a question about the YOILP-HG0015A and is the answer not in the manual?

Questions and answers

Related Manuals for VEVOR YOILP-HG0015A

Summary of Contents for VEVOR YOILP-HG0015A

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support DRUM PUMP USER MANUAL Model: YOILP-HG0015A，YOILP-D490 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
  • Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

  • Page 3: General Safety Rules

    1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. 2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. GENERAL SAFETY RULES 1.Select the appropriate product type according to the liquid type. 2.Always keep hazardous, flammable or combustible liquids, other fuels and cleaners out of reach of children.
  • Page 4 MODEL AND PARAMETERS Model YOILP-HG0015A YOILP-D490 Max. Flow Rate 280ml per time 300ml per time Style Hand Press Type Hand Press Type 5~55gal 5~55gal Available Drums NPT2，NPT1.5 NPT2，NPT1.5 Material PP, ABS Steel Used for Acids and Alkali, Used for Diesel, Urea, Water，...

  • Page 5: Structure Diagram

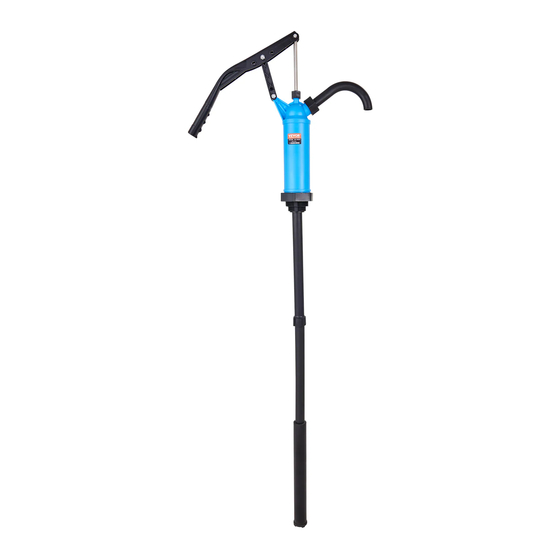

    STRUCTURE DIAGRAM 1. Discharge Spout 2. Handle 3. Pump Body 4. Suction Tube Extension 5. Suction Tube w/Strainer 6. Base Suction Tube - 4 -...
  • Page 6 COMPONENTS Qty of Qty of Name Picture YOILP-D4 YOILP-H G0015A Pump Body Handle Discharge Spout Retainer Machine Screw Lock Nut Gasket Suction Tube with Strainer - 5 -...
  • Page 7 Suction Tube Extension Base Suction Tube Hose Clamp PTFE Tape - 6 -...
  • Page 8 ASSEMBLY Installation Preparation: 1. Please prepare a carpet or mat to protect your floor you need to spread out all the accessories. 2. Please prepare gloves to avoid being scratched by sharp parts that may occur during installation. 3. Please open all the boxes to check that the accessories are complete and in good condition.
  • Page 9 Step2： Slide Retainer Nut (4) onto Discharge Spout (3). Step3： Attach Discharge Spout (3) onto Pump Body (1) using Retainer Nut (4). Make sure to use PTFE tape. Step4： Attach Suction Tube Extension (9) to bottom of Pump body (1). Make sure to use PTFE tape.
  • Page 10 Step5：Insert Suction Tube with Strainer (8) through Base Suction Tube (10),and then attach Suction Tube with Strainer (8) into Suction Tube Extension(9) . Make sure to use PTFE tape.(It's already assembled) Note:The whole suction tube can be retractable through the base suction tube.
  • Page 11 Operation: — Determine the proper length of the suction tube for your application and attach to the pump. — Insert the suction tube through the bung hole located on the container lid ，attach the bung nut located on the bottom of the pump to the container lid.
  • Page 12 Above is the YOILP-HG0015A installation,and the installation of the YOILP-D490 is the same as that of YOILP-HG0015A. - 11 -...

  • Page 13: Maintenance

    MAINTENANCE 1. After each use of the product, it is recommended to clean it and keep it dry. 2. When using this product to extract a variety of liquids, it is recommended to clean this product before extracting another liquid. 3.

  • Page 14: Troubleshooting

    TROUBLESHOOTING THE PUMP IS NOT WORKING 1. Check the suction tubes to be sure they are airtight. The pump will not pump if the suction tube allows air to enter. Thread sealing PTFE tape is recommended during assembly. 2.Rinse pump with water or the appropriate solution in regards to what was just pumped.
  • Page 16 TechnicalSupport and E-Warranty Certificate www.vevor.com/support...

This manual is also suitable for:

Yoilp-d490
