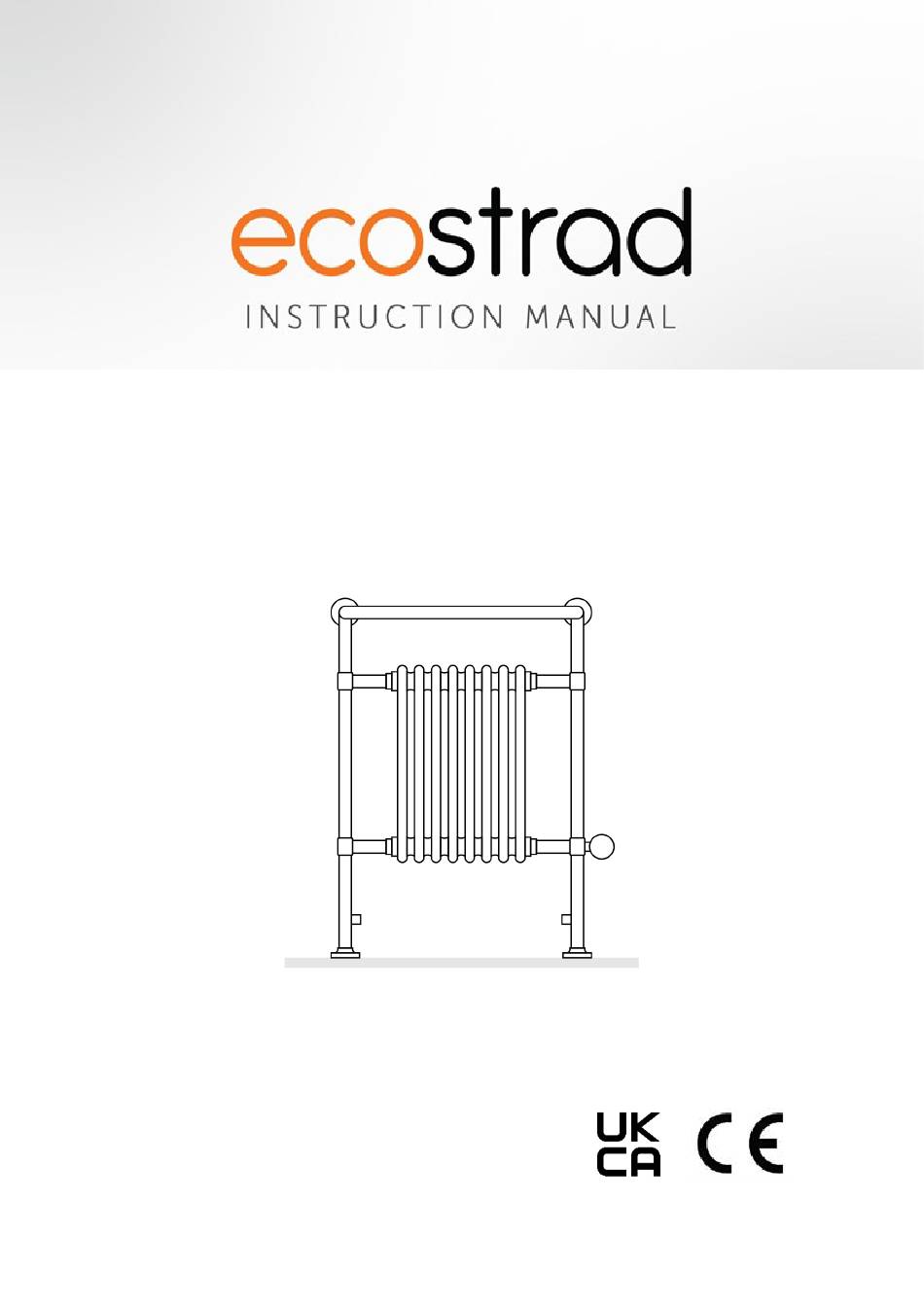

- Page 1 Ecostrad Electric Towel Rail ALLERTON PLEASE READ AND SAVE THESE INSTRUCTIONS...
- Page 2 Symbols Warning This symbol indicates a hazard with an average risk level which, if not avoided, could result in serious injury or death. Warning of electrical voltage This symbol indicates danger to the life and health of persons due to electrical voltage.
-
Page 3: Table Of Contents
Contents About the Product - - - - - - - - - - - - - - - - - - - - 4 2 | Warnings & Precautions- - - - - - - - - - - - - - - - - 5 3 | Installation - - - - - - - - - - - - - - - - - - - - - - - - - 6 Components - - - - - - - - - - - - - - - - - - - - 6 Fitting the element - - - - - - - - - - - - - - - - 7... -
Page 4: About The Product
The Ecostrad Allerton Towel Rail is designed to dry and warm towels. This product is designed to be used with the Ecostrad iQ WiFi Heating Element and is for use with an electric supply only. The product cannot be used as part of a central heating system or as a dual source towel rail. -
Page 5: Warnings & Precautions
2 | Warnings & Precautions Read all safety warnings and all instructions in this manual carefully before using or installing the towel rail. Failure to follow the warnings and instructions may result in electric shock, fire, serious injury, or all of the above. Save all warnings and instructions for future reference. -
Page 6: Installation
3 | Installation 3-1 | Components Before beginning installation, check that all fixings in Table 1 are supplied. The towel rail should only be mounted with the manufacturer’s fixings. Table 1 | Fixings and components Part Description Quantity Wall Plugs 8x36.5 Wall Screws ST4x30... -
Page 7: Fitting The Element
3-2 | Fitting the element Full instructions for fitting the element can be found within the element manual. The user must ensure installation is in accordance with the following: • The element must be fitted at the bottom right side of the towel rail (Figure 1). •... - Page 8 2. Insert the brackets into the towel 3. Position the towel rail against the rail pipes temporarily. wall in your preferred mounting location. 4. Mark where the brackets sit on the 5. Remove the towel rail and place the wall and where the base of the mounting plates on the positions towel rail meets the floor with a...
- Page 9 8. Line up the mounting plates with 9. Place the brackets over the the holes and secure in place using mounting plates and secure in the wall screws (A). place using the set screws the Allen key (G). 10.Position the towel rail on the floor 11.
-
Page 10: Connecting The Element
3-4 | Connecting the element Wiring the heating element to the mains is a job for a qualified electrician. Please consult the element manual for full instructions and safety warnings, paying special consideration to the following: • The towel rail and its element are designed to be used under AC 230 voltage and should be connected to the household fixed wiring by a qualified electrician in accordance with national wiring regulations. -
Page 11: Warranty
What does this warranty cover? Within the stated period, starting from the date the customer receives their unit, Ecostrad guarantee to repair or replace the unit where a fault is due to defects in materials or manufacturing. What does this warranty NOT cover? The warranty does not cover any defect arising from damage, negligence, usage outside the product’s intended purpose or fair wear and tear. -
Page 12: Disposal
For queries, contact: The UK manufacturer The ROI Importer Ecostrad Ltd. Ignition Heatco Ireland Limited Firecrest House Unit 282 Lingerfield Business Park...
