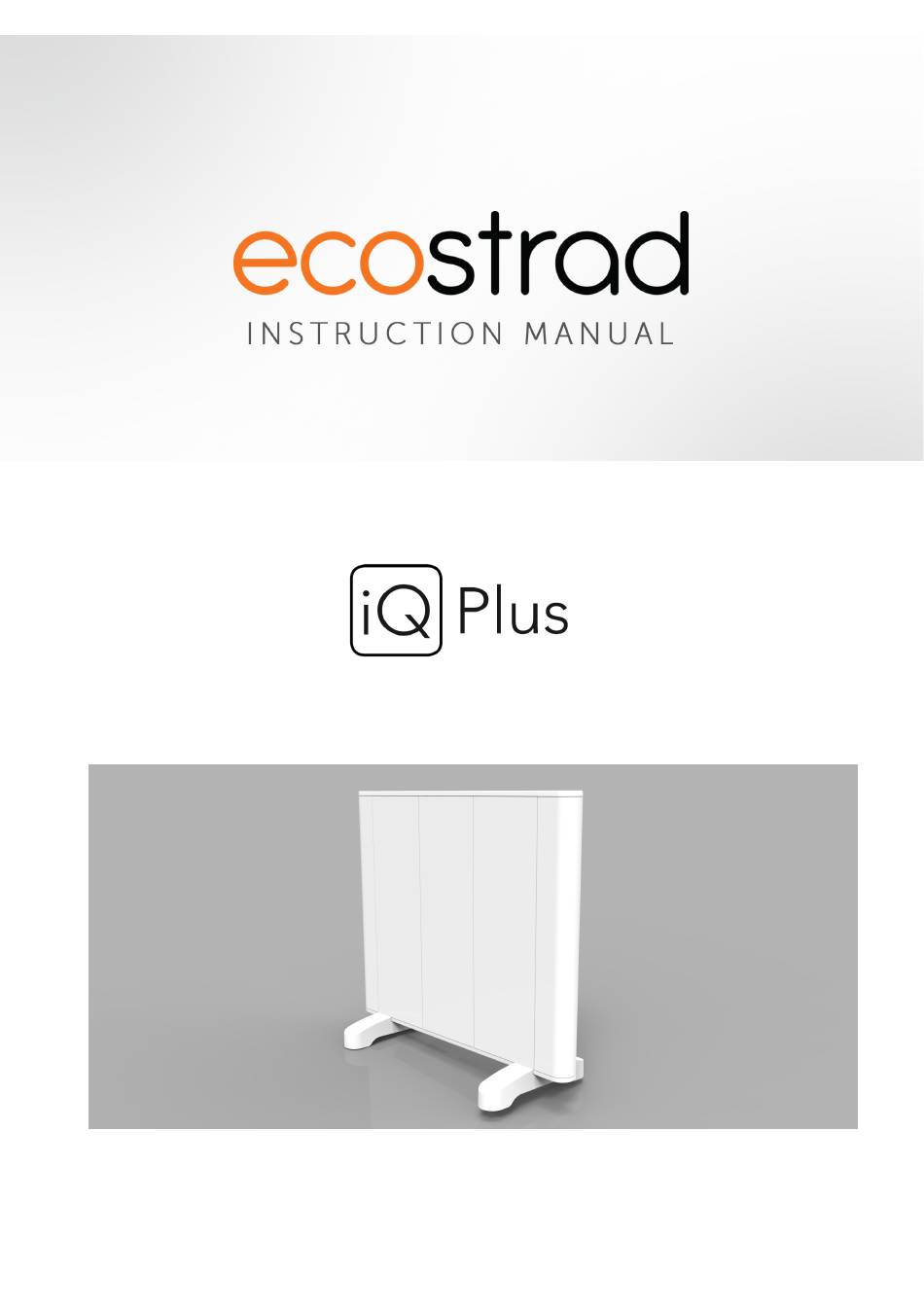

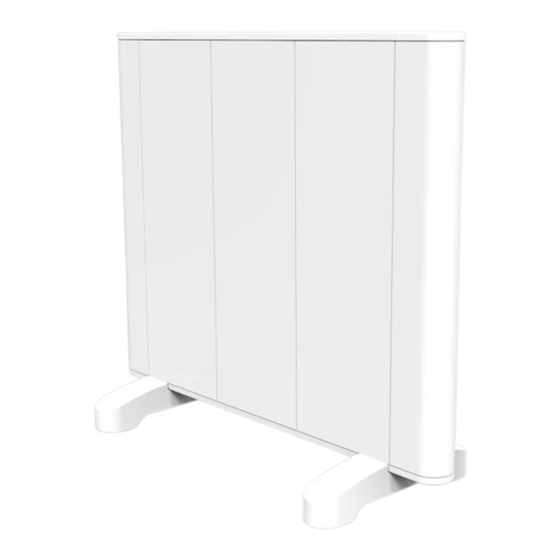

- Page 1 Ecostrad Electric Panel Heater 500w, 1000w, 1500w, 2000w, 2500w 220-240V, 50/60 HZ, Class I...
- Page 2 Introduction Thank you for choosing this convection heater. This product is designed and manufactured according to high engineering standards. It should be properly used and maintained as described in this manual. Please read these instructions carefully and retain them for future reference. User Instructions Safety Warnings: •...
-
Page 3: Installation
• If the plug or appliance is dropped, damaged, or malfunctions in any other way, seek out a qualified electrician for inspection and maintenance. If unsure, contact the retailer or manufacturer. • Check the power cable regularly. Do not use the heater if the cable is damaged. Cleaning: The heater should be cleaned regularly to ensure fault-free operation. - Page 4 Assembly Free Standing If you want to use the heater free standing, you must first affix the feet: 1. Turn the heater upside down. 2. Align the holes on the feet with the holes on the base of the heater. 3.
- Page 5 Operation Instructions Controls: Functions: Program mode Turn on, turn off Manual mode Switch between modes Set time Frost protection setting Select, confirm Set program Open window setting Up, forwards Power consumption check Down, backwards Standby Heating in progress Keypad lock 1 - First use Plug the heater in at a socket and flick the rocker switch on the base to turn it on.
- Page 6 4 - Set time Press to shift between modes until you see the To adjust set time: a) Press b) The day of the week will flash. Press The day of the week will flash. Press to cycle through the days. c) Press to confirm.
- Page 7 7 - Open window detection setting Press to shift between modes until you see the On this screen you can toggle the open window detection feature ON or OFF. If enabled, open window detection will switch the heater to standby mode if it senses a sudden drop in temperature over 5 °C.
- Page 8 To add the heater to the app, first put it in WiFi connection mode. Press to put it in standby mode and then hold down to activate pairing mode. The icon should flash. If the icon does not flash on first attempt, repeat this step until it does. While the icon is flashing, go to the app and press Add a Device.
- Page 9 Using the Smart Life App You can use the app to control multiple devices. The status of your device is shown on the device list. • Offline (device is turned off at wall / rocker switch) • Turned Off (device is in standby mode) •...
- Page 10 Scheduling your Heating Press Settings, then press Week Program to adjust the heating schedule. Each day of the week is divided into four heating intervals. Tap the intervals to adjust the time the interval begins and the set temperature. Press done when complete. Voice Integration Smart Life is compatible with both Amazon Alexa and Google Home.
-
Page 11: Troubleshooting
Troubleshooting Fault Possible Cause Solution Is the heater plugged in? Plug in. Heater is Is the socket switched on? Switch on. switching Is the heater switched on at the Switch on. rocker switch at the base of the unit? Is the heater on standby mode? Press to toggle between standby and...
