FEATURES:
DYNAMIC ELEMENT
OMNI-DIRECTIONAL PICKUP PATTERN
CYCOLAC HOUSING WITH DIE CAST BASE
PUSH-TO-TALK BAR WITH LOCK
HEAVY DUTY FOUR CONDUCTOR SHIELDED CABLE
DESCRIPTION:
Desk microphone suitable for all industrial/commercial public address, and paging applications. Featuring
modern styling and rugged construction, the microphone provides a push to talk bar with a sliding lock allowing it to
be locked in the "ON" position. A long life switch gives years of trouble free operation and provides a contact closure
for music muting when the talk bar is pressed.
ELEMENT
Dynamic
FREQUENCY RESPONSE
50 Hz - 12 kHz
PATTERN
Omni-Directional
IMPEDANCE
Balanced Low 600 Ohm Nominal
OUTPUT LEVEL
-58 dB (Ref. 0 dB = 1 mw/10 Microbars).
5614 Hollins Road
Roanoke, Virginia 24019
E-Mail: support@valcom.com

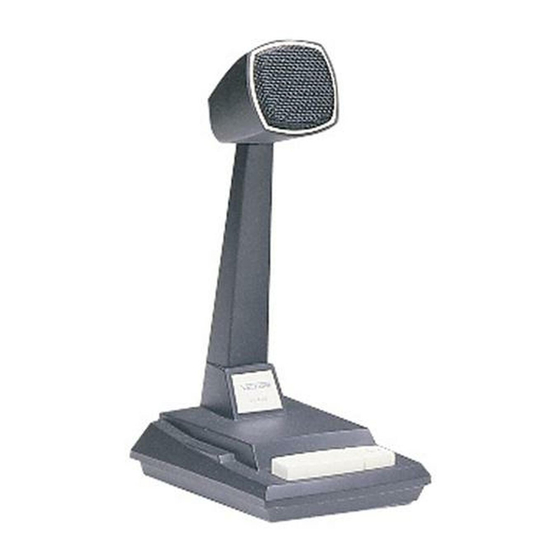

Desk Microphone
MODEL V-400
SPECIFICATIONS:
SWITCH
DPDT leaf
CABLE
7' - 4 Conductor (2 shielded)
HOUSE AND FINISH
Molded cycolac in black with die cast base
DIMENSIONS AND WEIGHT
9.28" (23.57 cm) H x 4.35" (11.05 cm) W x 6"
(15.2 cm) D
Weight: 1.5 lbs (.67 kg)
Phone: 540-563-2000
TECHNICAL
SPECIFICATIONS
Fax: 540-362-9800
www.valcom.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Valcom V-400
Summary of Contents for Valcom V-400
- Page 1 Omni-Directional IMPEDANCE Balanced Low 600 Ohm Nominal OUTPUT LEVEL -58 dB (Ref. 0 dB = 1 mw/10 Microbars). 5614 Hollins Road Roanoke, Virginia 24019 E-Mail: support@valcom.com Desk Microphone MODEL V-400 SPECIFICATIONS: SWITCH DPDT leaf CABLE 7’ - 4 Conductor (2 shielded)
-
Page 2: Limited Warranty
This warranty is in lieu of and excludes all other warranties expressed or implied, and in no event shall Valcom, Inc. be liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation or use of the product.
