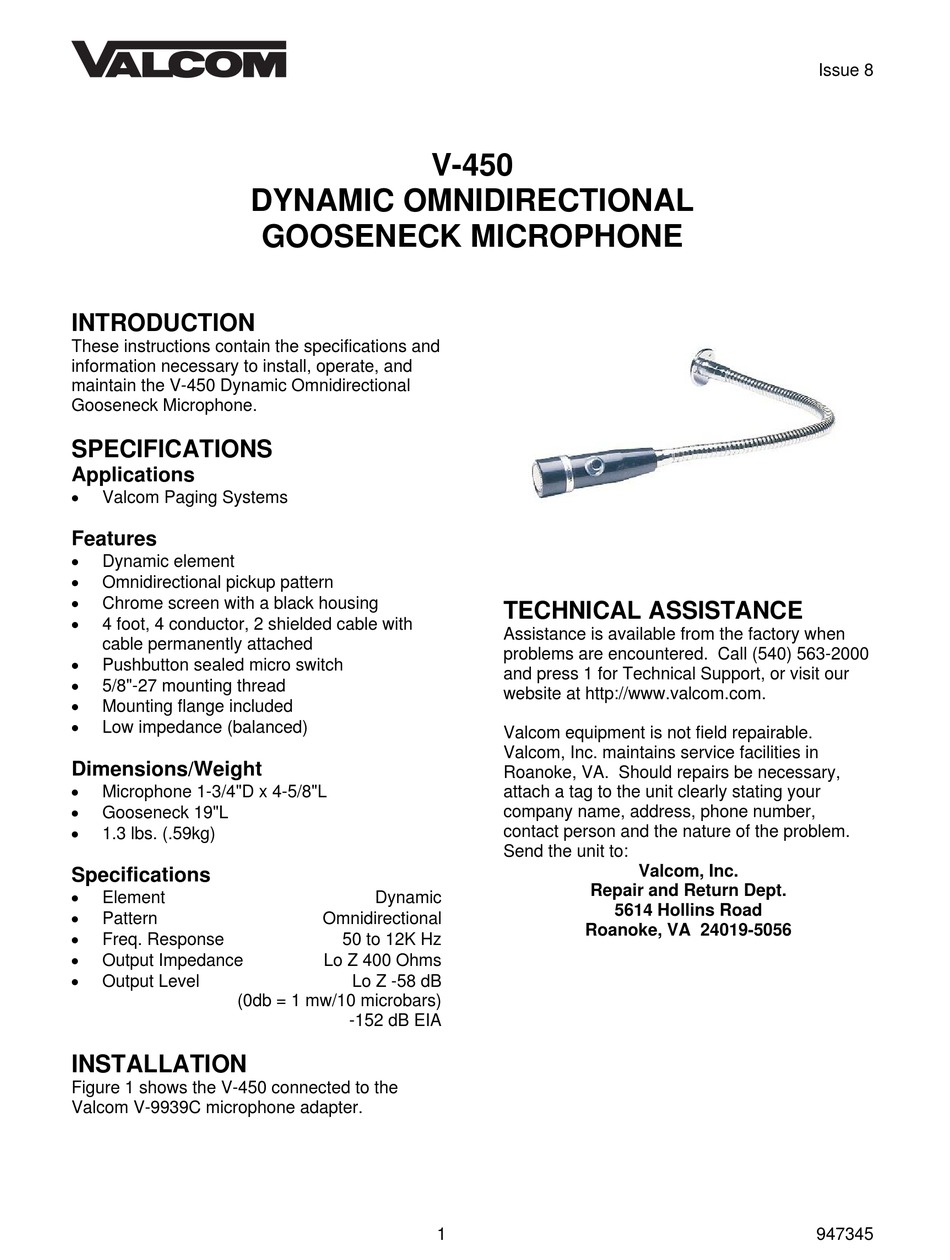

Valcom V-450 Installation Instructions

INTRODUCTION
These instructions contain the specifications and
information necessary to install, operate, and

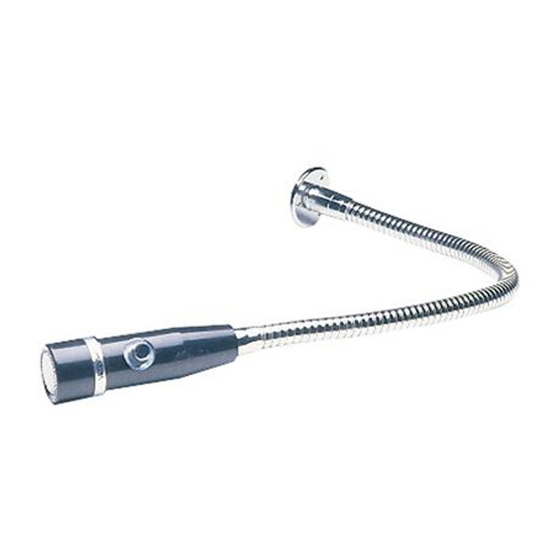

maintain the V-450 Dynamic Omnidirectional
Gooseneck Microphone.
SPECIFICATIONS
Applications

Valcom Paging Systems
Features

Dynamic element

Omnidirectional pickup pattern

Chrome screen with a black housing

4 foot, 4 conductor, 2 shielded cable with
cable permanently attached

Pushbutton sealed micro switch

5/8"-27 mounting thread

Mounting flange included

Low impedance (balanced)
Dimensions/Weight

Microphone 1-3/4"D x 4-5/8"L

Gooseneck 19"L

1.3 lbs. (.59kg)
Specifications

Element

Pattern

Freq. Response

Output Impedance

Output Level
(0db = 1 mw/10 microbars)
INSTALLATION
Figure 1 shows the V-450 connected to the
Valcom V-9939C microphone adapter.
DYNAMIC OMNIDIRECTIONAL
GOOSENECK MICROPHONE
Dynamic
Omnidirectional
50 to 12K Hz
Lo Z 400 Ohms
Lo Z -58 dB
-152 dB EIA
V-450
TECHNICAL ASSISTANCE
Assistance is available from the factory when
problems are encountered. Call (540) 563-2000
and press 1 for Technical Support, or visit our
website at http://www.valcom.com.
Valcom equipment is not field repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating your
company name, address, phone number,
contact person and the nature of the problem.
Send the unit to:
Repair and Return Dept.
Roanoke, VA 24019-5056
1
Valcom, Inc.
5614 Hollins Road
Issue 8
947345
