Valcom V-400 Quick Start Manual

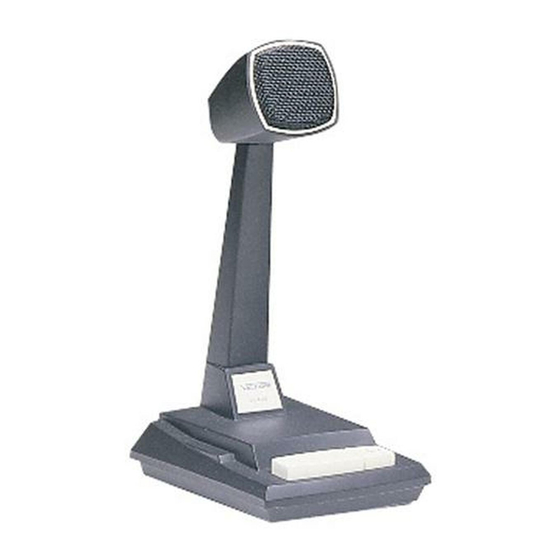

DYNAMIC DESK PAGING MICROPHONE
INTRODUCTION
These instructions contain the specifications and
information necessary to install, operate, and maintain
the V-400 Dynamic Desk Paging Microphone.
SPECIFICATIONS
Applications
•
Valcom Paging Systems
Features
•
Dynamic element
•
Omnidirectional pickup pattern
•
Cycolac housing with die cast base
•
Push to Talk push bar with lock
•
Heavy duty four conductor shielded cable
•
Low impedance (balanced)
Dimensions/Weight
•
9.40"H x 4.0"W x 6.0"D
(23.88cm H x 10.16cm W x 15.24cm D)
•
1.4 lbs. (.64 kg)
Specifications
•
Element
•
Pattern
•
Freq. Response
•
Output Impedance
•
Output Level
INSTALLATION
Figure 1 (on reverse) depicts the V-400 connected to
the Valcom V-9939A microphone adapter.
Dynamic
Omnidirectional
50 to 12K Hz
Lo Z 400 OHMS
Lo Z -58 dB
(0dB = 1 mw/10 microbars)
-152 dB EIA
V-400
TECHNICAL ASSISTANCE
When trouble is reported, verify the unit is turned on
and there are no broken connections leading to this
unit. Assistance in troubleshooting is available from
the factory. When calling, you should have a VOM
and a test set available and be calling from the job
site. Call (540) 427-3900, and ask for a Technical
Support, or call (540) 427-6000 for Valcom 24-hour
Automated Support or visit our website at
http://www.valcom.com.
Valcom equipment is not field repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the unit
clearly stating your company name, address, phone
number, contact person and the nature of the problem.
Send the unit to:
Repair and Return Dept.
Roanoke, VA 24019-5056
1
VSP-V-400
Valcom, Inc.
5614 Hollins Road
Issue 5
947340
