Valcom V-2001A User Manual

SINGLE ZONE (PLUS) PAGE CONTROL UNIT
INTRODUCTION
The V-2001A provides telephone system access
to a single zone of one-way paging.
"WARNING: To reduce the risk of fire or
electric shock, do not expose this equipment
to rain or moisture."
"WARNING: Shock Hazard - Do Not Open."
"AVIS: Risque de Choc Electrique ne pas
Ouvrir."
"PELIGRO: Corriente Electrica - No Abra."
"CAUTION: To reduce the risk of fire replace
only with same type 1A, 125V fuse. 1A, 125V
may be replaced by a 0.5A, 250V provided
voltage selector is set for 230V."
"DANGER: Afin de réduire le risque de feu,
remplacez le fusible par le même type de
fusible à 1A, 125V. On peut utiliser un
fusible à 0.5A, 250V pourvu que le sélecteur
ďalimentation soit fixé sur 230V. Ne pas
ouvrir."
"VORSICHT: Zur verringerung von
feuergefahr die sicherung nur mit derselben
type 1A, 125V ersetzen. Statt 1A, 125V Kann
0.5A, 250V Benutzt werden, vorausgesetzt,
die spannung ist auf 230V eingestellt. Nicht
öffnen."
"PELIGRO: Para reducir el peligro de
incendio remplazarlo unicamente con un
fusible del mismo tipo 1A, 125V. El fusible
de 1A, 125V podra ser remplazado por uno
de 0.5A, 250V si el selector de voltaje esta
puesto en 230V. No abres."

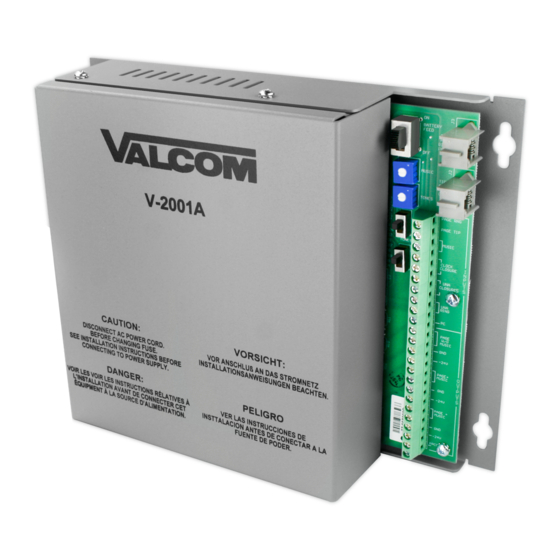

V-2001A

SPECIFICATIONS

Access Methods
•
Electronic Key System (C. O. Line Position)
•
PABX (Loop Start Trunk Port)
•
1A2 Key Systems (400 type line card
required)
•
600 Ohm Page Port
•
Dedicated Single Line Telephone(s)
Features
•
Pre-Page Alert Tone
•
Page override capability (Using C. O. line
position or loop start trunk port)
•
Switchable battery feed for loop start
operation
•
RJ-11 for Tip and Ring connections
•
AGC on all voice outputs
•
Provides audio for up to 150 Valcom
one-way amplified speaker assemblies
•
Background music input
•
Voice operated VOX to mute music during
page
•
Easily accessible music and tone volume
controls
•
Removable screw terminal connectors
provided
1
Issue 8
947202
