V-2003A-E - THREE ZONE CONTROL UNIT
V-2003AHF-E - THREE ZONE TALKBACK CONTROL UNIT
INTRODUCTION

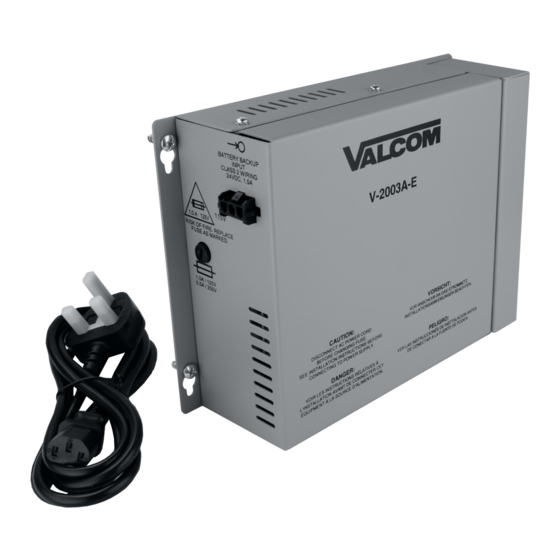

The V-2003A-E Three Zone control Unit provides
telephone system access to multiple zones (up to 3)
of one way paging plus all call.
The V-2003AHF-E Three Zone Talkback Control Unit
provides telephone system access to multiple zones
(up to 3) of handsfree talkback and/or one-way
paging with a one-way all call.
"WARNING: To reduce the risk of fire or electric
shock, do not expose this equipment to rain or
moisture."
"WARNING: Shock Hazard - Do Not Open."
"AVIS: Risque de Choc Electrique ne pas
Ouvrir."
"PELIGRO: Corriente Electrica - No Abra."
"CAUTION: To reduce the risk of fire replace
only with same type 1A, 125V fuse. 1A, 125V
may be replaced by a 0.5A, 250V provided
voltage selector is set for 230V."
"DANGER: Afin de réduire le risque de feu,
remplacez le fusible par le même type de fusible
à 1A, 125V. On peut utiliser un fusible à 0.5A,
250V pourvu que le sélecteur ďalimentation soit
fixé sur 230V. Ne pas ouvrir."
"VORSICHT: Zur verringerung von feuergefahr
die sicherung nur mit derselben type 1A, 125V
ersetzen. Statt 1A, 125V Kann 0.5A, 250V
Benutzt werden, vorausgesetzt, die spannung ist
auf 230V eingestellt. Nicht öffnen."
"PELIGRO: Para reducir el peligro de incendio
remplazarlo unicamente con un fusible del
mismo tipo 1A, 125V. El fusible de 1A, 125V
podra ser remplazado por uno de 0.5A, 250V si el
selector de voltaje esta puesto en 230V. No
abres."

SPECIFICATIONS

Access Methods
•
Electronic Key System
•
PABX (Loop or Earth Call Trunk)
•
600 Ohm page port equipped with separate
contact closure and MF dialing capability
(NOTE: Page port must be -directional if
talkback paging is desired)
•
Stand Alone Handset (used only for access of
the V-2003A-E and V-2003AHF-E).
Features of the V-2003A-E
•
3 zones of one-way paging
•
One-way all call
•
Integrated power supply
•
Volume Controls supplied for
* Background music
* Page
* Warble tone/single tone
•
Dip switch programmable per zone (music
and tones)
•
Dial tone (optional)
•
(#) Button returns dial tone
•
Supplies 1 Amp at -24VDC for powering speaker
amplifier assemblies
•
Provides audio for up to 150 Valcom one-way
speaker amplifier assemblies per zone
•
230VAC at 50Hz or 115VAC at 60Hz operation
•
AC input fused at 0.5 Amp at 230VAC or 1 Amp
at 115VAC
•
Override capability
•
Inhibit circuitry (speaker cancel)
•
UL, CSA and VDE Listed
1
Issue 5
947205

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-2003A-E and is the answer not in the manual?

Questions and answers

Related Manuals for Valcom V-2003A-E

Summary of Contents for Valcom V-2003A-E

  • Page 1: Specifications

    V-2003A-E - THREE ZONE CONTROL UNIT V-2003AHF-E - THREE ZONE TALKBACK CONTROL UNIT INTRODUCTION The V-2003A-E Three Zone control Unit provides telephone system access to multiple zones (up to 3) of one way paging plus all call. The V-2003AHF-E Three Zone Talkback Control Unit...

  • Page 2: Physical Description

    The socket outlet shall be installed near the Priority Sequence equipment and shall be easily accessible. The V-2003A-E and V-2003AHF-E are designed to allow a time clock signal to override an ongoing Environment override page, override page to override system Temperature: 0 to 40°C...

  • Page 3: Installation

    If a modular cord is used for Tip and Ring manual is the customer premise equipment such connections, connect (J1) RJ-11 A/Tip and B/Ring to as a key system or PABX. The V-2003A-E/ the appropriate loop exchange port of the phone V-2003AHF-E cannot be connected directly to the system.

  • Page 4: Power Connections

    Page Port Access Connect cord set to unit via IEC 320 female When used with page port access, the V-2003A-E/ connector located on one end of cord set V-2003AHF-E may only be used with a 600 Ohm to IEC 320 male appliance coupler located page port that will pass MF tones for zone on the V-2003A-E/V-2003AHF-E.

  • Page 5: Optional Connections

    Optional Connections V-2003A-E Volume Adjustments A. Background Music Connections: There are two volume controls on the unit for Connect the low level (-10 to -18dBm, 8 to 600 individual adjustment of: Ohms) output of music source to (W/G) and (G/W) •...
  • Page 6 "VALCOM" distributor or dealer. This guarantee applies to all Valcom products purchased and used in the EEC. Products should be returned to your nearest Valcom distributor or dealer. If, however, the product has not been purchased in the EEC country where the...
  • Page 7 NOT USED PAGE PORT CC BK/O NOT USED BL/W B/RING BL/BK +GND OUT BL/V W/BL A/TIP BK/BL -24V OUT V/BL Loop or Telephone Earth Calling System Trunk Contact Closure (Page Port) FIGURE 2 - CONNECTIONS FOR THE V-2003A-E AND THE V-2003AHF-E...
  • Page 8 Figure 3 Dip Switches for both units and Volume Controls for the V-2003A-E Battery Feed OFF Battery Feed ON RJ11 Override A/Tip-B/Ring System A/Tip-B/Ring Loop Start Loop Start Earth Call Earth Call Dip Switches SW3 - DIPSWITCHES Zone 3 Music...
