Valcom V-2000A Technical Specifications

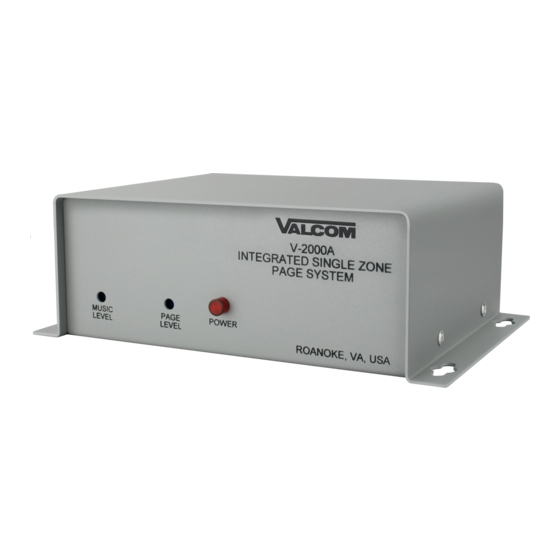

One zone basic integrated page control
Hide thumbs Also See for V-2000A:
1
2
Table of Contents

Advertisement

Quick Links

Download this manual
ONE ZONE BASIC INTEGRATED PAGE CONTROL

FEATURES:

LOOP START TRUNK PORT AND PAGE PORT ACCESS
ONE WAY PAGE
INTEGRATED POWER SUPPLY
BACKGROUND MUSIC INPUT
VOICE OPERATED MUSIC MUTE
PROVIDES EXTERNAL POWER FOR ONE-WAY AMPLIFIED SPEAKERS
WALL OR SHELF MOUNT

DESCRIPTION:

A telephone-compatible one-zone, one-way page control unit with integrated power supply, and background
music input.

POWER REQUIREMENT

.35 Amp at 120 Vac

INPUTS/OUTPUTS

Input Impedance: 600 ohms
Music Source Impedance: 8 to 600 ohms
Music Input Level: -10 dBm nominal
Voice Switch Sensitivity: -21 dBm
Output Impedance: 8 ohms
Output Level: -10 dBm nominal
DC Output: -24 Vdc @ 600 mA
CONTROLS
Page Volume
Background Music Volume
5614 Hollins Road
Roanoke, Virginia 24019
E-Mail: support@valcom.com
MODEL V-2000A
SPECIFICATIONS:

CONNECTIONS:

Screw terminals are provided for all connections.
An RJ11 jack is provided for tip and ring input
connection.

ENVIRONMENT

Temperature: +32 to +104
Humidity: 0-85% Non-Condensing

HOUSING AND FINISH

Gray painted aluminum alloy

DIMENSIONS AND WEIGHT

2.5" (6.35 cm) H x 7.7" (19.6 cm) W x 5.3" (13.5
cm) D. Shipping Weight: 3.25 lbs (1.48 kg)
Phone: 540-563-2000
www.valcom.com
TECHNICAL
SPECIFICATIONS
º
º
F (0 to +40
C)
Fax: 540-362-9800
