Valcom V-1050C User Manual

V-1050C - 5 WATT BI-DIRECTIONAL HORN/
ONE-WAY AMPLIFIER ASSEMBLY
INTRODUCTION

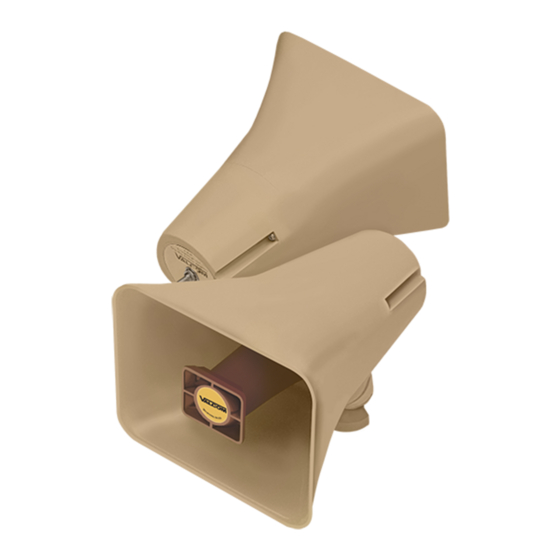

The V-1050C is a Bi-directional, 5 Watt One-way
Amplified Horn Assembly. The V-1050C consists of
two horn speakers positioned on a common mounting
frame with a built-in one-way 5 Watt amplifier.
SPECIFICATIONS
Features
5 Watts
Self-contained amplifier and volume control
Simplifies paging horn installation
Vertical or horizontal mounting
Dimensions/Weight
9.60" H x 8.20" W x 9.30" D
(24.38cm H x 20.83cm W x 23.62cm D)
Weight: 6.3 lbs. (2.86 Kg)
Power Requirements
Unfiltered -24VDC ("B" Battery) 300mA
maximum
Environment
Temperature:
Humidity:
DESIGN
General
The V-1050C may be used to provide one-way paging
from any Va lcom one-way or talkback page control
unit. A standard Valcom paging system is made up of
three basic components:
Page Control Unit
Speakers
Power Supply
-20 to +55 degrees C
0 to 95% non-precipitating
Consult Valcom's One-way Paging VSP for detailed
information on selecting the control unit and power
supply.
Special Applications
The V-1050C may be connected directly to the
speaker in most electronic key telephones to amplify
the level of the speaker and broadcast it to a large
area. A power supply will also be required.
The V-1050C may be used to expand a constant
voltage (25/70/100 Volt) paging system without
placing an additional load on the amplifier by adding a
V-1095, 70V Paging Expander. A power supply will
also be required.
Coverage
Refer to Table 1 for coverage of this horn assembly.
The first figure given is the side to side distance to
use when mounting the horns. The second figure is
the front to back distance between horns. The third
figure is the total square footage the assembly will
cover.
1
VSP-V-1050C
Issue 8
947050
