Model No.: R309
PO #:
Serial #:

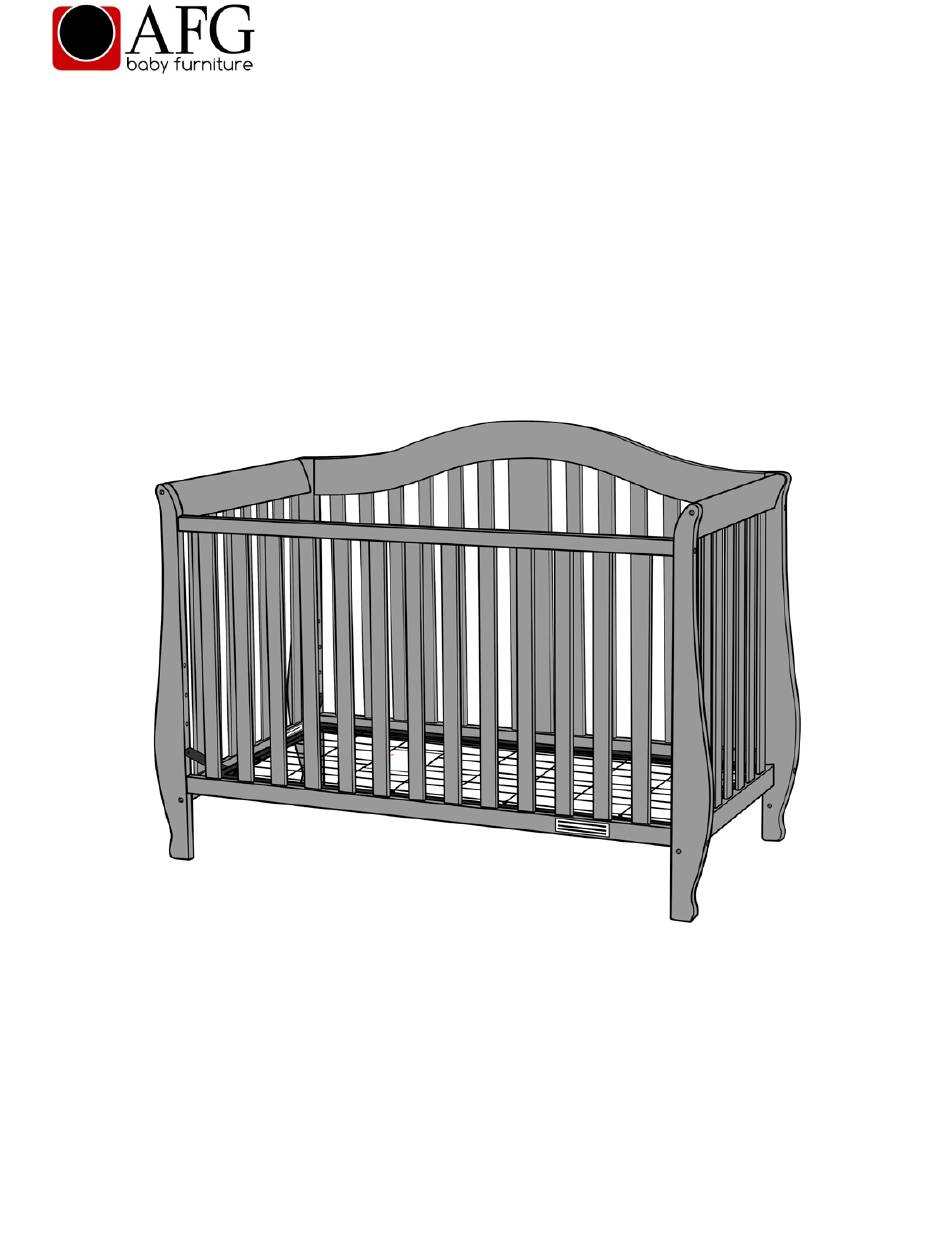

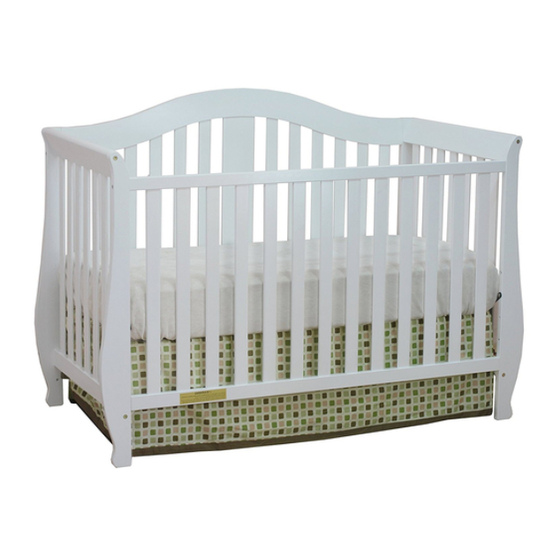

4-in-1 Convertible Crib (R309)
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
If you have any questions or missing parts, please contact us. DO NOT return product
parts to the store where it was purchased before contacting AFG Customer Service.
AFG Customer Service:
E-mail: service@afgbabyfurniture.com
Tel: (323) 722-6268

Advertisement

loading
Need help?

Need help?

Do you have a question about the R309 and is the answer not in the manual?

Questions and answers

Summary of Contents for AFG R309

  • Page 1 THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE. If you have any questions or missing parts, please contact us. DO NOT return product parts to the store where it was purchased before contacting AFG Customer Service. AFG Customer Service: E-mail: service@afgbabyfurniture.com...
  • Page 2 • Infants can suffocate in gaps between crib sides and a mattress that is too small. • Follow warnings on all products in a crib. WARNING Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. 2016 AFG Baby Furniture R309 Assembly Sheet ©...
  • Page 3: Fall Hazard

    Securely tighten loose bolts and other fasteners. DO NOT use crib if any parts are missing, damaged or broken. Contact (AFG International Products Inc.) for replacement parts and instructional literature if needed. DO NOT substitute parts.
  • Page 4 (1 pc) Footboard (1 pc) Headboard (1 pc) Rear Left Leg (1 pc) Rear Right Leg (1 pc) Front Left Leg (1 pc) Front Right Leg (1 pc) Mattress Support (1 pc) 2016 AFG Baby Furniture R309 Assembly Sheet ©...
  • Page 5 Crib Parts Identification Sheet R309 DO NOT assemble crib if parts and hardware are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Crib Assembly Parts A. Left Side Panel B. Right Side Panel C.
  • Page 6 Crib Hardware Identification Sheet R309 DO NOT assemble crib if parts and hardware are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Crib Assembly Hardware Item # Fittings 1. Bolt M6 x 80mm (8 pcs) 2.
  • Page 7 Bolts (#1) to secure the legs. Make sure when securing the bottom rail of the Headboard (D) to the legs to insert the bolts through the lower one of the 2 holes on the legs. 2016 AFG Baby Furniture R309 Assembly Sheet ©...
  • Page 8 Attach Front Left Leg (G) and FrontRight Leg (H) on the side panels to the Footboard (C) by inserting2 Wood Dowel(#6) and 4 Barrel Nuts (#5) on the underside of each corner of the footboard before screwing4 Bolts (#1) to secure the legs. Tighten firmly. 2016 AFG Baby Furniture R309 Assembly Sheet ©...
  • Page 9 WARNING: Make sure that the warning envelope on the Face Up Mattress Support Frame is facing up. WARNING: Check components periodically, make sure Bolts are tightened properly and securely. Warning Envelope 2016 AFG Baby Furniture R309 Assembly Sheet ©...
  • Page 10 R309 Crib Assembly Sheet Crib Complete 2016 AFG Baby Furniture R309 Assembly Sheet ©...
  • Page 11 Attach Stabilizer Bar (J) to Front Left Leg (G) and Front Right Leg (H) by inserting 2 Wood Dowel(#6) and 2 Barrel Nuts (#5) on the underside of each corner of the Stabilizer Bar before screwing 2 Bolts (#1) to secure the legs. Tighten firmly. Day Bed Complete 2016 AFG Baby Furniture R309 Assembly Sheet ©...
  • Page 12 2 Bolts (#1) to secure the legs. Tighten firmly. c. Attach Guardrail (K) to Stabilizer Bar (J) by using 2 Bolts (#4), and Left Side Panel (A) by using 2 Bolts (#2). 2016 AFG Baby Furniture R309 Assembly Sheet ©...
  • Page 13 Attach Headboard (D)toRear Left Leg (E) and Rear Right Leg (F) as the headboard for the full size bed. b. Assemble the headboard byattaching the mattress support metal-frame rail to the bottom holes of the headboard. 2016 AFG Baby Furniture R309 Assembly Sheet ©...
  • Page 14 DO NOT return products to the store once a product is used, it cannot be resold and the materials and energy invested in the product would go to waste. In the event that AFG determines that a defect that may result from customer abuse or misuse, we will contact you with information about services and methods to prevent occurrences.
