Model No.: H309
PO #:
Serial #:

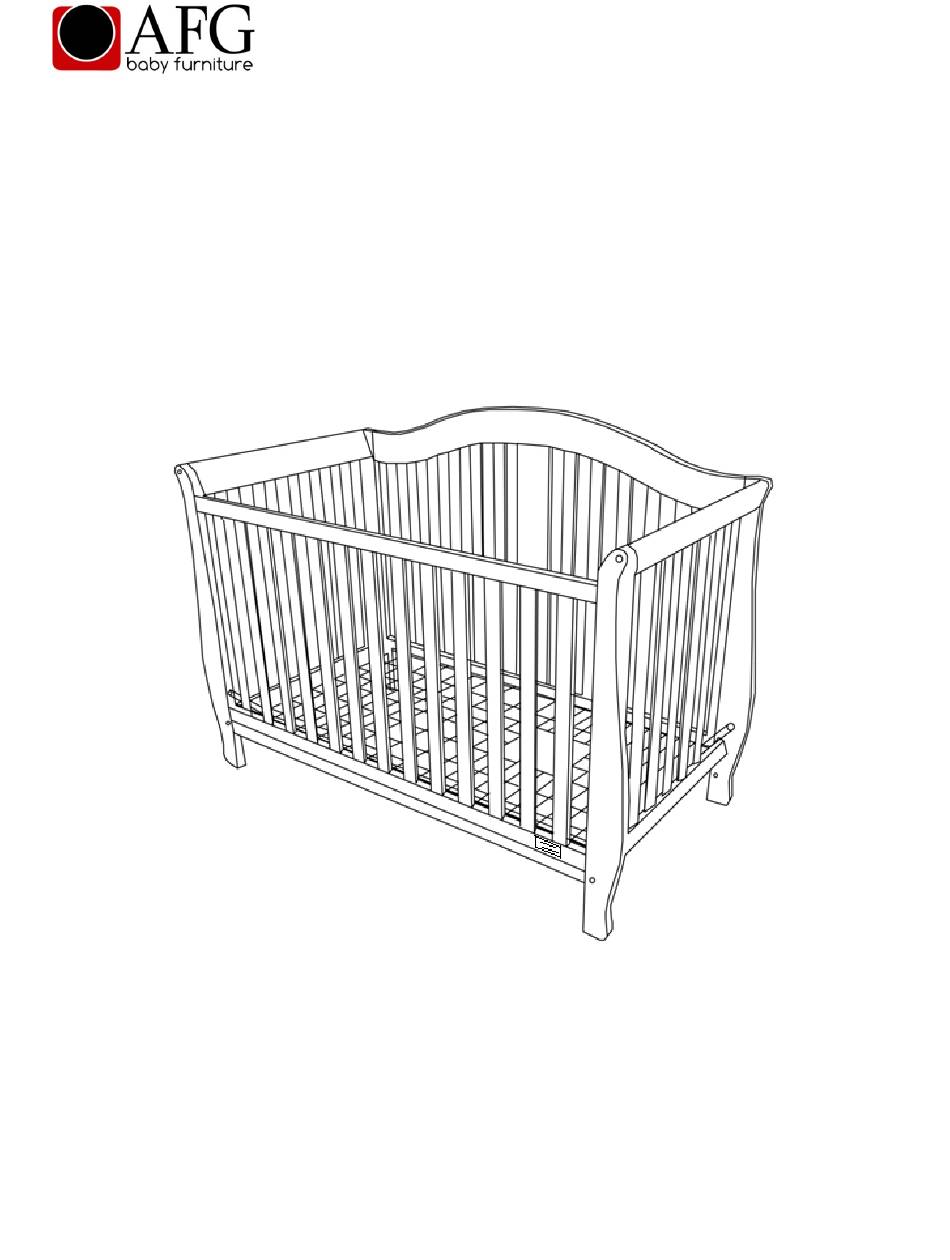

4-in-1 Convertible Crib (H309)
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
If you have any questions or missing parts, please contact us. DO NOT return product
parts to the store where it was purchased before contacting AFG Customer Service.
AFG Customer Service:
E-mail: service@afgbabyfurniture.com
Tel: (323) 722-6268
Advertisement
Table of Contents
Related Manuals for AFG H309
Summary of Contents for AFG H309
- Page 1 THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE. If you have any questions or missing parts, please contact us. DO NOT return product parts to the store where it was purchased before contacting AFG Customer Service. AFG Customer Service: E-mail: service@afgbabyfurniture.com...
- Page 2 • Infants can suffocate in gaps between crib sides and a mattress that is too small. • Follow warnings on all products in a crib. WARNING Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. 2015 AFG Baby Furniture H309 Assembly Sheet ©...
- Page 3 Securely tighten loose bolts and other fasteners. DO NOT use crib if any parts are missing, damaged or broken. Contact (AFG International Products Inc.) for replacement parts and instructional literature if needed. DO NOT substitute parts.
- Page 4 (1 pc) Headboard (1 pc) Rear Left Leg (1 pc) Rear Right Leg (1 pc) Front Left Leg (1 pc) Front Right Leg (1 pc) Mattress Support (1 pc) Stabilizer Bar (1 pc) 2015 AFG Baby Furniture H309 Assembly Sheet ©...
- Page 5 Crib Parts Identification Sheet H309 DO NOT assemble crib if parts and hardware are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Crib Assembly Parts A. Left Side Panel B. Right Side Panel C.
- Page 6 Crib Hardware Identification Sheet H309 DO NOT assemble crib if parts and hardware are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Crib Assembly Hardware Item # Fittings 1. Bolt M6 x 80mm (10 pcs) 2.
- Page 7 4 Bolts (#1) to secure the legs. Make sure when securing the bottom rail of the Headboard (D) to the legs to insert the bolts through the lower one of the 2 holes on the legs. 2015 AFG Baby Furniture H309 Assembly Sheet ©...
- Page 8 WARNING: Face Up Make sure that the warning envelope on the Mattress Support Frame is facing up. WARNING: Check components periodically, make sure bolts are tightened properly and securely. Warning Envelope 2015 AFG Baby Furniture H309 Assembly Sheet ©...
- Page 9 4 Bolts (#1) to secure the legs. Make sure when securing the bottom rail of the footboard to the legs to insert the bolts through the lower one of the 2 holes on the legs. 2015 AFG Baby Furniture H309 Assembly Sheet ©...
- Page 10 Attach Stabilizer Bar (J) to the legs on the Left Side Panel (A) and Right Side Panel (B) with 2 Bolts (#1), 2 Barrel Nuts (#5) and 2 Wood Dowels (#6). 2015 AFG Baby Furniture H309 Assembly Sheet ©...
- Page 11 Loosen the bolts from the Side Panels to the Footboard (C) bolts to detach the Footboard. b. Adjust Stabilizer Bar (J) by moving up one level to where the original Footboard was attached. 2015 AFG Baby Furniture H309 Assembly Sheet ©...
- Page 12 Adjust Stabilizer Bar (J) by moving up one level to where the original Footboard was attached. c. Attach Guardrail (K) to Stabilizer Bar (J) by using 2 Bolts (#4), and Left Side Panel (A) by using 2 Bolts (#2). 2015 AFG Baby Furniture H309 Assembly Sheet ©...
- Page 13 Attach Headboard (D) to Rear Left Leg (E) and Rear Right Leg (F) as the headboard for the full size bed. b. Assemble the headboard by attaching the mattress support metal-frame rail to the bottom holes of the headboard. Safety Tips for Assembling and Re-assembling Cribs 2015 AFG Baby Furniture H309 Assembly Sheet ©...
- Page 14 DO NOT return products to the store once a product is used, it cannot be resold and the materials and energy invested in the product would go to waste. In the event that AFG determines that a defect that may result from customer abuse or misuse, we will contact you with information about services and methods to prevent occurrences.
