AFG R219 Manual

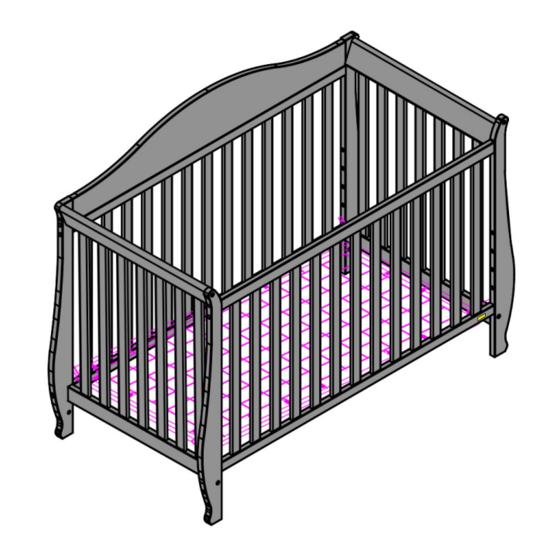

4-in-1 convertible crib (219)
Hide thumbs

Advertisement

Quick Links

Download this manual
Model No.: R219
PO #:
Serial #:
4-in-1 Convertible Crib (219)
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
If you have any questions or missing parts, please contact us. DO NOT return product
parts to the store where it was purchased before contacting AFG Customer Service.
AFG Customer Service:
E-mail: service@afgbabyfurniture.com
Tel: (323) 722-6268

Advertisement

loading
Need help?

Need help?

Do you have a question about the R219 and is the answer not in the manual?

Questions and answers

Related Manuals for AFG R219

Summary of Contents for AFG R219

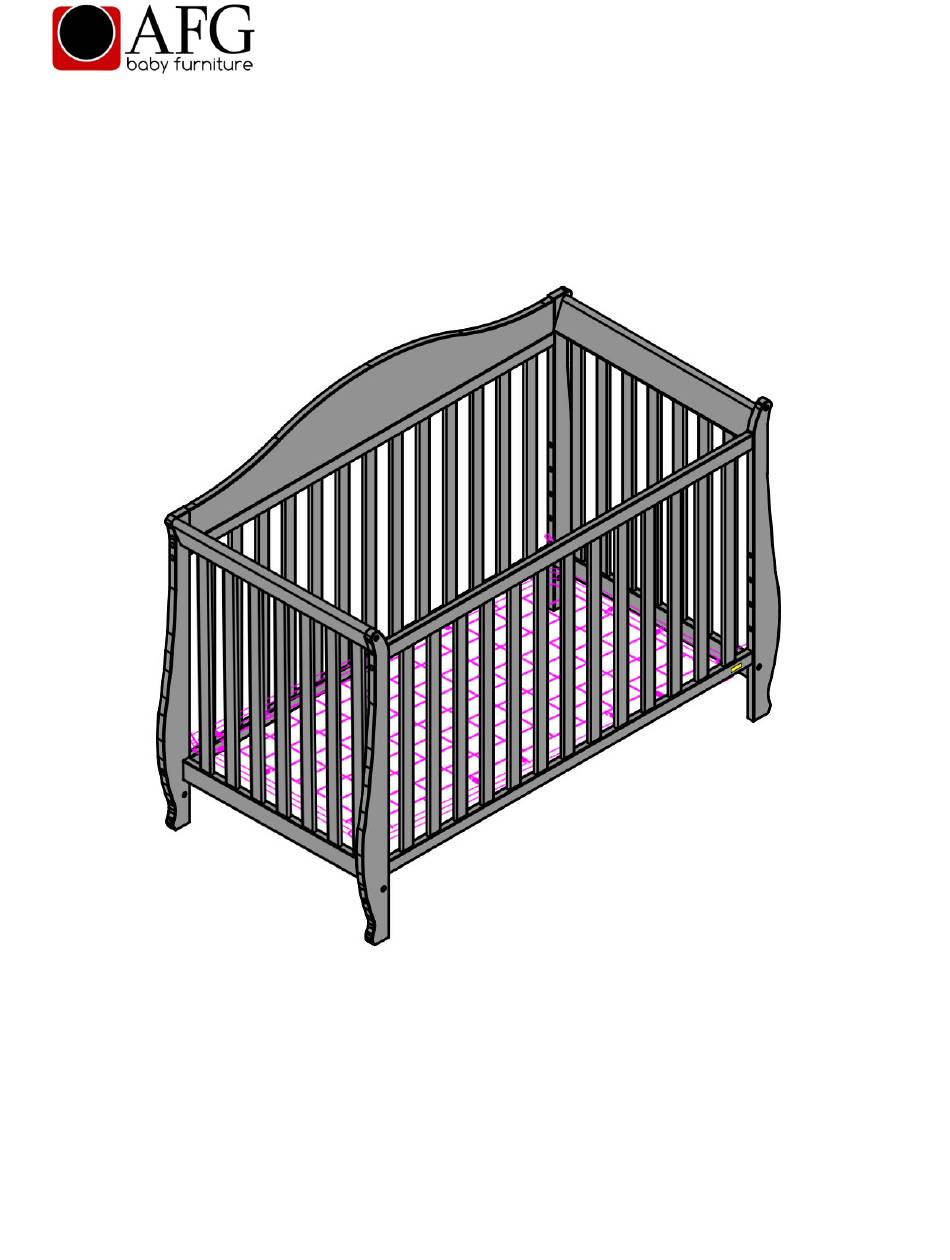

  • Page 1 THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE. If you have any questions or missing parts, please contact us. DO NOT return product parts to the store where it was purchased before contacting AFG Customer Service. AFG Customer Service: E-mail: service@afgbabyfurniture.com...
  • Page 2 • Infants can suffocate in gaps between crib sides and a mattress that is too small. • Follow warnings on all products in a crib. WARNING Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. 2016 AFG Baby Furniture R219 Assembly Sheet ©...

  • Page 3: Fall Hazard

    Securely tighten loose bolts and other fasteners. DO NOT use crib if any parts are missing, damaged or broken. Contact (AFG International Products Inc.) for replacement parts and instructional literature if needed. DO NOT substitute parts.
  • Page 4 (1 pc) Front Right Leg (1 pc) Footboard (1 pc) Mattress Support (1 pc) Rear Left Leg (1 pc) Headboard (1 pc) Rear Right Leg (1 pc) Headboard Top Rail (1 pc) 2016 AFG Baby Furniture R219 Assembly Sheet ©...
  • Page 5 R219 Crib Parts Identification Sheet DO NOT assemble crib if parts and hardware are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Crib Assembly Parts A. Left Side Panel B. Right Side Panel C.
  • Page 6 R219 Crib Hardware Identification Sheet DO NOT assemble crib if parts and hardware are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Crib Assembly Hardware Item # Fittings 1. Bolt M6 x 80mm (10 pcs) 2.
  • Page 7 (D) to Headboard Top Rail (L) and Headboard (K) by using 3 Bolts (#1), two into the top holes of Rear Left Leg (D), one into the bottom hole of Rear Left Leg (D). c. Repeat above steps on the opposite side for Rear Right Leg (E). 2016 AFG Baby Furniture R219 Assembly Sheet ©...
  • Page 8 Left Side Panel. Attach Front Left Leg (F) to Left Side Panel (A) by inserting 1 Bolt (#2) into the first top hole and 1 Bolt (# 4) into the bottom hole of Left Side Panel (A) steps on the opposite side. Repeat above 2016 AFG Baby Furniture R219 Assembly Sheet ©...
  • Page 9 Left Side Panel (A). Attach Left Side Panel (A) to the Rear Left Leg (D) by inserting 1Bolt (#2) into the first top hole of Real Left Leg (D) and 1 Bolt (#4) in the bottom hole of Real Left Leg (D). Repeat above steps on the opposite side. 2016 AFG Baby Furniture R219 Assembly Sheet ©...
  • Page 10 4 Bolts (#3) to attach hangers to the brackets on the legs at an even level on all sides. WARNING: Make sure that the warning envelope on the Mattress Support Frame is facing up. WARNING: Check components periodically, make sure Bolts are tightened properly and securely. 2016 AFG Baby Furniture R219 Assembly Sheet ©...
  • Page 11 Insert 1 Wood Dowel (#7) into the bottom left side hole of Footboard (C) and two Barrel Nuts on the underside of top and bottom corner of Footboard (C) b. Repeat above steps on the opposite side. 2016 AFG Baby Furniture R219 Assembly Sheet ©...
  • Page 12 R219 Crib Assembly Sheet Crib Assembly Complete 2016 AFG Baby Furniture R219 Assembly Sheet ©...
