Model No.: W3358
PO #:
Serial #:

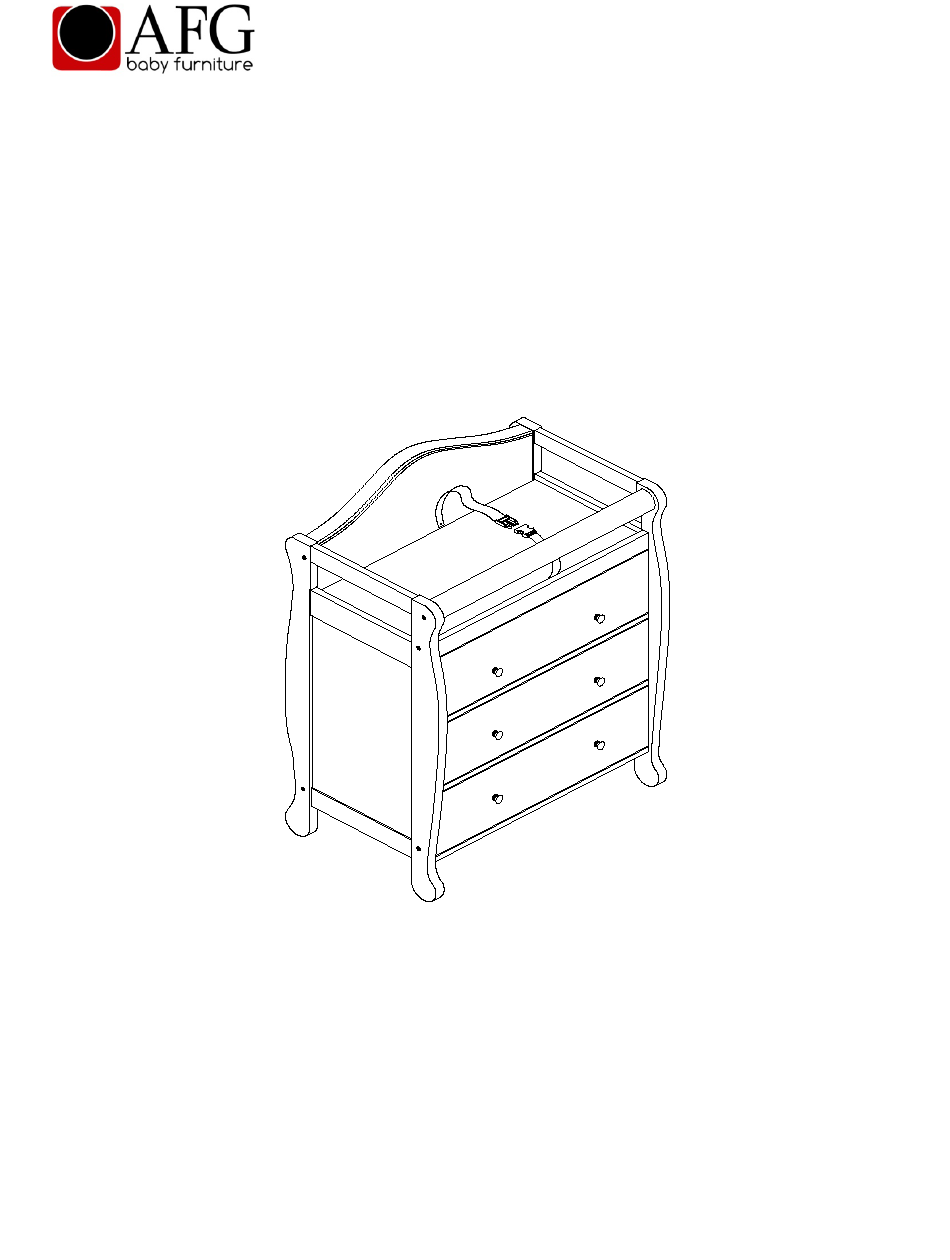

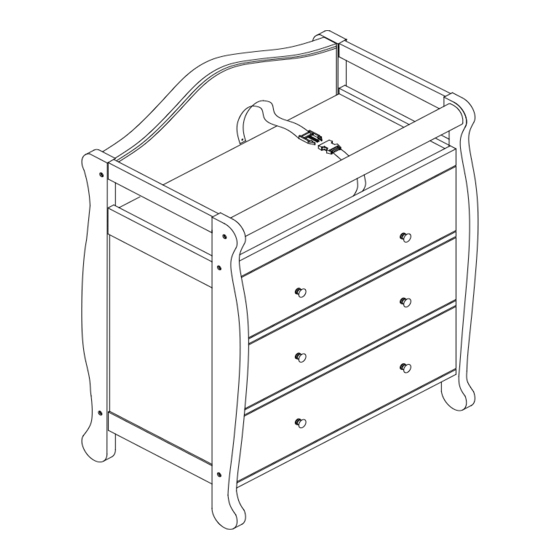

3 Drawer Changing Table (W3358)
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
If you have any questions or missing parts, please contact us. DO NOT return product
parts to the store where it was purchased before contacting AFG Customer Service.
AFG Customer Service:
E-mail: service@afgbabyfurniture.com
Tel: (323) 722-6268
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AFG W3358
Summary of Contents for AFG W3358
- Page 1 THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE. If you have any questions or missing parts, please contact us. DO NOT return product parts to the store where it was purchased before contacting AFG Customer Service. AFG Customer Service: E-mail: service@afgbabyfurniture.com...
- Page 2 • RECOMMENDED PAD SIZE: 34” x 17” x 1”. PARENT SHOULD ENSURE A SAFE ENVIRONMENT FOR THEIR CHILD BY CHECKING THE FURNITURE CAREFULLY BEFORE PLACING CHILD IN THE PRODUCT. PLEASE MAKE SURE EVERY COMPONENT IS PROPERLY AND SECURELY IN PLACE. 2014 AFG Baby Furniture W3358 Assembly Sheet...
- Page 3 W3358 Changer Parts Identification Sheet DO NOT assemble changer if parts and hardware are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Changer Assembly Parts A. Right End Panel (1 pc) B. Left End Panel (1 pc) C.
-
Page 4: Phillips Screwdriver
6. Bolt 5/32” x 25 mm (6 pcs) 7. Knob (6 pcs) 8. Wrench (1 pc) 9. Safety Strap (1 pc) 10. Wood Screw 4 x 15 mm (2 pcs) FLATHEAD SCREWDRIVER (NOT INCLUDED) PHILLIPS SCREWDRIVER (NOT INCLUDED) 2014 AFG Baby Furniture W3358 Assembly Sheet... - Page 5 Panel (L) using 4 Screws (#4). b. Insert Drawer Support Bar (O) into Drawer Front Panel (L). (4 pcs) STEP 2: Slide Drawer Bottom Panel (P) into the grooves of the side panels. 2014 AFG Baby Furniture W3358 Assembly Sheet...
- Page 6 Screws (#4). Make sure all screws are tightly secured. b. Attach Knobs (#7) to Drawer Front Panel with 2 Bolts (#6). (5 pcs) (2 pcs) (2 pcs) Repeat above steps to assemble the other two drawers. 2014 AFG Baby Furniture W3358 Assembly Sheet...
- Page 7 STEP 2: a. Insert 4 Dowels (#3) into the Middle Frames (D). b. With Phillips screwdriver, attach the two frames to Right End Panel (A) using 4 Screws (#5). (4 pcs) (4 pcs) 2014 AFG Baby Furniture W3358 Assembly Sheet...
- Page 8 (#1) and 3 Barrel Nuts (#2). Tighten firmly with Wrench (#8). (3 pcs) (3 pcs) (4 pcs) (1 pc) STEP 4: Slide Bed Panel (H), Upper and Lower Back Panels (I) and Middle Back Panel (J) into the grooves. 2014 AFG Baby Furniture W3358 Assembly Sheet...
- Page 9 Pull the changing unit to a standing position. Gently rock one side of unit and test for uneven assembly. Retighten screws or reassemble entire unit if necessary. (5 pcs) (5 pcs) (10 pcs) (4 pcs) (1 pc) 2014 AFG Baby Furniture W3358 Assembly Sheet...
-
Page 10: Important Safety Notice
• To avoid head injury, do not allow your child to play underneath open drawers. • Child must be securely fastened to changer unit when the unit is in use. • Always monitor your child’s activity when in the nursery. 2014 AFG Baby Furniture W3358 Assembly Sheet... - Page 11 1-1/2” screw and washer as shown. Make sure strap holds steady and complete installation. CAUTION: Do not attempt to screw into the plaster wall only. You must screw into a wall stud. 2014 AFG Baby Furniture W3358 Assembly Sheet...
- Page 12 In the event that AFG determines that a defect that may result from customer abuse or misuse, we will contact you with information about services and methods to prevent occurrences. We strongly recommend you register your product with our company by filling out registration and mailing it back to us.
