Model No.: F457
PO #:
Serial #:

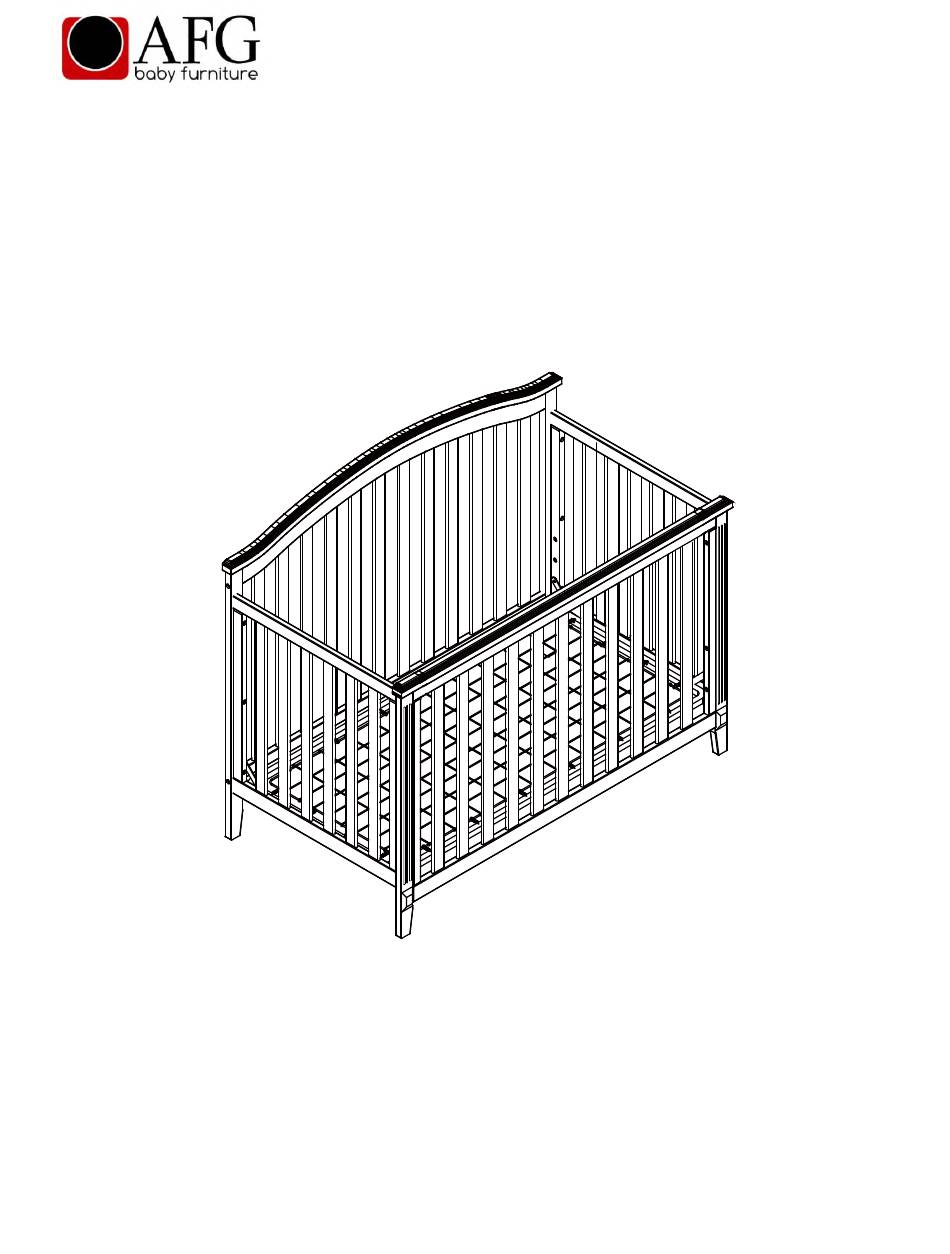

4-in-1 Convertible Crib (F457)
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
If you have any questions or missing parts, please contact us. DO NOT return product
parts to the store where it was purchased before contacting AFG Customer Service.
AFG Customer Service:
E-mail: service@afgbabyfurniture.com
Tel: (323) 722-6268

Advertisement

loading
Need help?

Need help?

Do you have a question about the F457 and is the answer not in the manual?

Questions and answers

Summary of Contents for AFG F457

  • Page 1 THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE. If you have any questions or missing parts, please contact us. DO NOT return product parts to the store where it was purchased before contacting AFG Customer Service. AFG Customer Service: E-mail: service@afgbabyfurniture.com...
  • Page 2 Infants can suffocate in gaps between crib sides and a mattress that is too small. • Follow warnings on all products in a crib. WARNING Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. 2019 AFG Baby Furniture F457 Assembly Sheet ©...
  • Page 3: Fall Hazard

    Securely tighten loose bolts and other fasteners. DO NOT use crib if any parts are missing, damaged or broken. Contact (AFG International Products Inc.) for replacement parts and instructional literature if needed. DO NOT substitute parts.
  • Page 4 Left Side Panel (1 pc) Right Side Panel (1 pc) Mattress Support (1 pc) Rear Left Leg (1 pc) Rear Right Leg (1 pc) Front Left Leg (1 pc) Front Right Leg (1 pc) 2019 AFG Baby Furniture F457 Assembly Sheet ©...
  • Page 5 F457 Crib Parts Identification Sheet DO NOT assemble crib if parts and hardware are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Crib Assembly Parts A. Headboard B. Footboard C. Left Side Panel...
  • Page 6 F457 Crib Hardware Identification Sheet DO NOT assemble crib if parts and hardware are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Crib Assembly Hardware Item # Fittings 1. Bolt M6 x 85mm (4 pcs) 2.
  • Page 7 Attach Rear Left Leg (F) to the Headboard (A) using 2 Bolt (#1). Tighten firmly into Barrel Nut (#5) with Wrench (#7) to secure the leg to the Headboard. d. Repeat above steps with Rear Right Leg (G). Tighten firmly with Wrench (#7). 2019 AFG Baby Furniture F457 Assembly Sheet ©...
  • Page 8 F457 Crib Assembly Sheet STEP 2: a. Attach Left Side Panel (C) to Headboard (A) using 3 Bolts (#2). Tighten firmly. b. Repeat the same steps for Right Side Panel (D) on the opposite side. 2019 AFG Baby Furniture F457 Assembly Sheet ©...
  • Page 9 Attach Front Right Leg (I) to the Right Side Panel (D), Secure Front Right Leg (I) to the Right Side Panel (D) by using 3 Bolts (#2). Tighten firmly with Wrench (#7). 2019 AFG Baby Furniture F457 Assembly Sheet ©...
  • Page 10 Make sure that the warning envelope on the Mattress Support Frame is facing up. WARNING: Check components periodically, make sure bolts are tightened properly and securely. Warning Make sure four hinges were tighten firmly at Envelope an even level 2019 AFG Baby Furniture F457 Assembly Sheet ©...
  • Page 11 F457 Crib Assembly Sheet STEP 5 a. Attach Footboard (B) to the Front Left Leg (H) and Front Right Leg (I) using 6 Bolts (#3). 2019 AFG Baby Furniture F457 Assembly Sheet ©...
  • Page 12 F457 Crib Assembly Sheet Crib Assembly Complete. 2019 AFG Baby Furniture F457 Assembly Sheet ©...
  • Page 13 *Mattress Support Assembly must be in the lowest position before converting to day bed. a. Loosen the bolts attaching Footboard (B) to Front Left Leg (H) and Front Right Leg (I). Detach the Footboard. Daybed Assembly Complete. 2019 AFG Baby Furniture F457 Assembly Sheet ©...
  • Page 14 Attach Headboard (A) to Rear Left Leg (F) and Rear Right Leg (G). Use this as the headboard for full size bed. b. Attach Footboard (B) to Front Left Leg (H) and Front Right Leg (I). Use this as the footboard for full size bed. 2019 AFG Baby Furniture F457 Assembly Sheet ©...
  • Page 15 Product Assistance Procedures AFG International Products strives to ensure that our customers are receiving a quality piece of furniture. We want our customers to be satisfied with using our products for years to come. In the event that you need assistance or have any inquiries regarding our products, please feel free to contact us with the information below.
  • Page 16 DO NOT return products to the store once a product is used, it cannot be resold and the materials and energy invested in the product would go to waste. In the event that AFG determines that a defect that may result from customer abuse or misuse, we will contact you with information about services and methods to prevent occurrences.
