AFG RS618 Assembly Instructions Manual

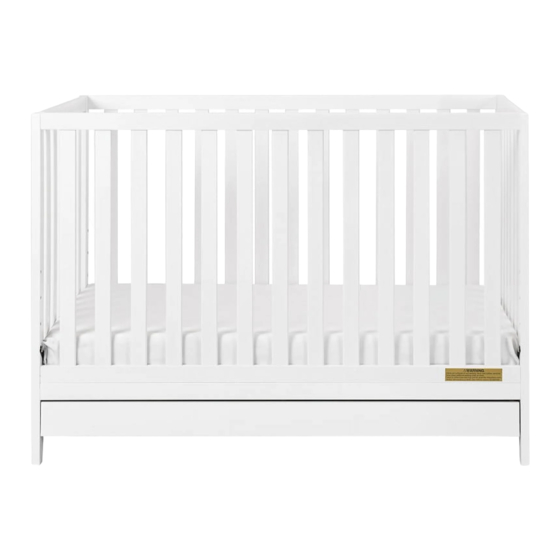

3-in-1 convertible baby crib
Hide thumbs

Advertisement

Quick Links

Download this manual
Model No.: RS618
PO #:
Serial #:

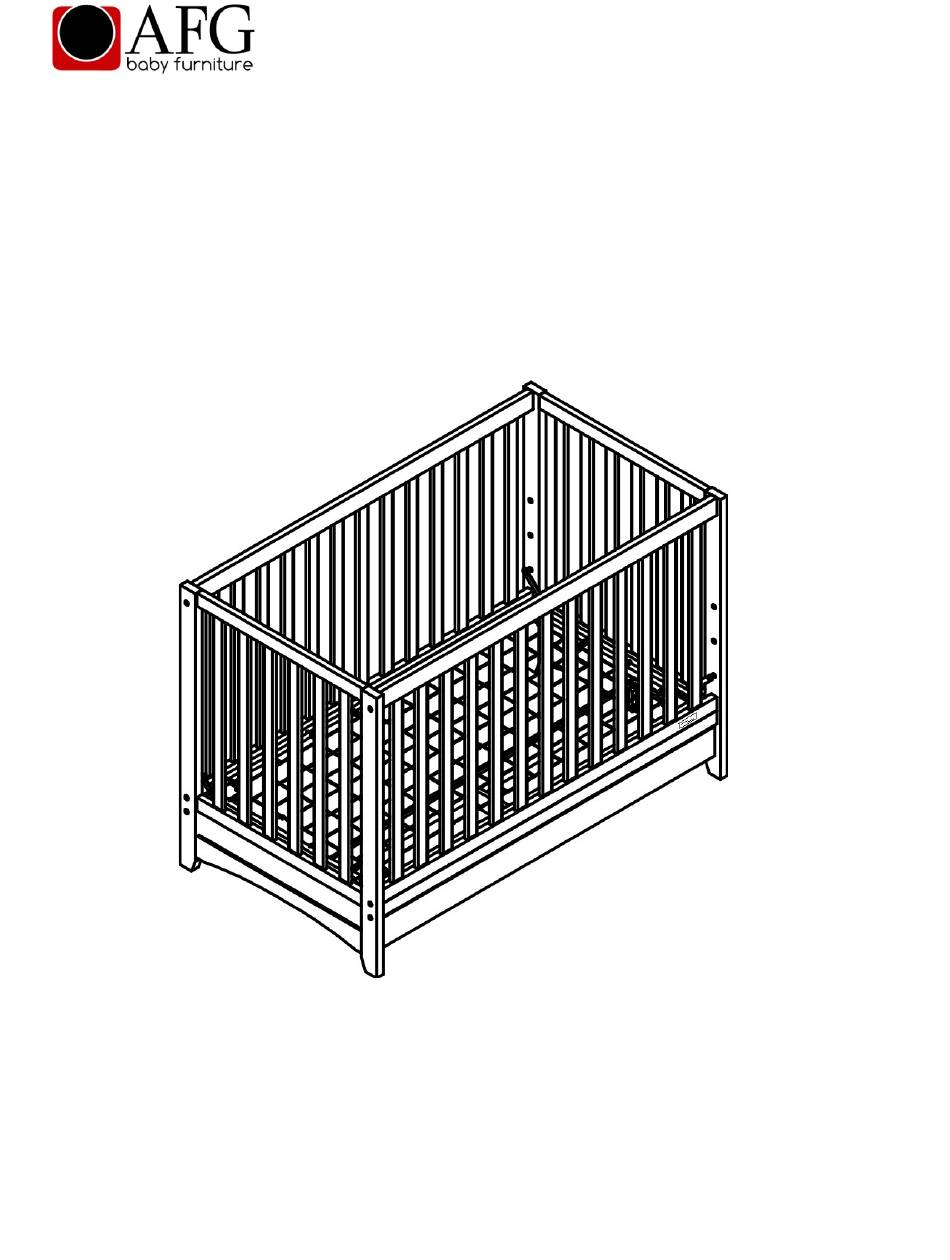

3-in-1 Convertible Baby Crib (RS618)
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
If you have any questions or missing parts, contact us. DO NOT return product parts
to the store from where it was purchased before contacting AFG Customer Service.
AFG Customer Service:
E-mail: service@afgbabyfurniture.com
Tel: (323) 722-6268

Advertisement

loading
Need help?

Need help?

Do you have a question about the RS618 and is the answer not in the manual?

Questions and answers

Related Manuals for AFG RS618

Summary of Contents for AFG RS618

  • Page 1 THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE. If you have any questions or missing parts, contact us. DO NOT return product parts to the store from where it was purchased before contacting AFG Customer Service. AFG Customer Service: E-mail: service@afgbabyfurniture.com...
  • Page 2                                 2022 AFG Baby Furniture RS618 Assembly Sheet ©...
  • Page 3                                 2022 AFG Baby Furniture RS618 Assembly Sheet ©...
  • Page 4 RS618 Parts Identification Sheet DO NOT assemble crib if parts are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Crib Assembly Parts A. Headboard B. Footboard C. Back Stationary Side Panel (1 pc)

  • Page 5: Phillips Screwdriver

    RS618 Hardware Identification Sheet DO NOT assemble crib if parts are defective or missing. Contact AFG for exchange or keep the original box for return authorization. ~ Crib Assembly Hardware Item # Fittings 1. Bolt M6 * 60mm (12 pcs) 2.
  • Page 6 Drawer Right Side Panel (1 pc) Front Stationary Side Panel (1 pc) Drawer Back Panel (1 pc) Stabilizer Bar (2 pc) Drawer Divider (1 pc) Mattress Support (1 pc) Drawer Bottom Panel (2 pcs) 2022 AFG Baby Furniture RS618 Assembly Sheet ©...
  • Page 7 Attach Drawer Left Side Panel (H), Drawer Right Side Panel (I) and Drawer Divider (K) to Drawer Back Panel (J) by using 6 Screws (#5). Tighten firmly with Phillips screwdriver. STEP 2: Slide Drawer Bottom Panels (L) into the grooves. 2022 AFG Baby Furniture RS618 Assembly Sheet ©...
  • Page 8 Attach Drawer Front Panel (G) to Drawer Left Side Panel (H), Drawer Right Side Panel (I) and Drawer Divider (K) by using 6 Screws (#5). Tighten firmly with Phillips screwdriver. Drawer Complete 2022 AFG Baby Furniture RS618 Assembly Sheet ©...
  • Page 9 Insert 2 wood dowels (#7) on Stabilizer bar(#E), attach Stabilizer bar (#E) to Footboard (A&B) by inserting 2 Barrel Nuts (#4) of the corners of Stabilizer bar(#E), and install 2 Bolts (#1), Attach all parts and Tighten all screws firmly with Wrench (#3).. 2022 AFG Baby Furniture RS618 Assembly Sheet ©...
  • Page 10 Attach all parts Tighten all screws firmly with Wrench (#3).. Face Up Warning Envelope Make sure that these bolts are tightly secured on even level. Check components periodically, make sure mattress support’s hinges are been tightened properly and securely. 2022 AFG Baby Furniture RS618 Assembly Sheet ©...
  • Page 11 Attach Stabilizer Bar (E) to Headboard (A) and Footboard (B) by inserting 2 wood dowel (#7) and 2 Barrel Nuts (#4) into Stabilizer Bar before securing 2 Bolts (#1). Tighten all screws firmly with Wrench (#3). 2022 AFG Baby Furniture RS618 Assembly Sheet ©...
  • Page 12 Panel (D) to Headboard (A) and Footboard (B) by inserting 4 Barrel Nuts (#4) from underside of each corner of the Front Stationary Side Panel before securing 4 Bolts (#1), Tighten all screws firmly with Wrench (#3). 2022 AFG Baby Furniture RS618 Assembly Sheet ©...
  • Page 13 STEP 5: a. Evenly slide the drawer along the rails beneath the crib. b. Complete. 2022 AFG Baby Furniture RS618 Assembly Sheet ©...
  • Page 14 *Mattress Support Assembly must be in the lowest position before installing guardrail. a. Loosen the Front Stationary Side Panel (D) bolts and detach the Front Stationary Side Panel (D) from crib assembly. b. Complete 2022 AFG Baby Furniture RS618 Assembly Sheet ©...
  • Page 15 *Mattress Support Assembly must be in the lowest position before installing guardrail. Attach Guardrail (M) to Stabilizer Bar by using 2 bolts (#6) and left front leg by using 2 bolts (#8), Tighten all screws firmly with Wrench (#3). a. Complete. 2022 AFG Baby Furniture RS618 Assembly Sheet ©...

  • Page 16: Care And Maintenance

    DO NOT return products to the store once a product is used, it cannot be resold and the materials and energy invested in the product would go to waste. In the event that AFG determines that a defect that may result from customer abuse or misuse, we will contact you with information about services and methods to prevent occurrences.
