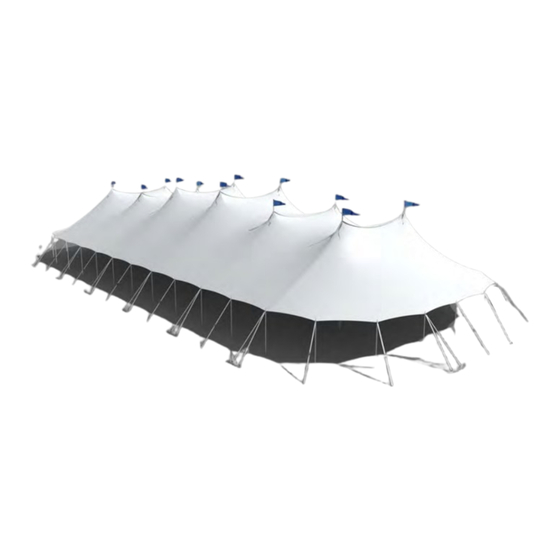

Installation Instructions
59' Aurora Tent
Non-Certified Installation
Modified from Fully Certified Version
Please read all assembly / installation instructions before the installation or removal of this product.
7701 Highway 41 N
Evansville, IN 47725
Phone: 812-867-2421
Fax: 812-867-1429
1-800-544-4445
email: tents@anchorinc.com
www.anchorinc.com
EC 6067
AU59CERT-124
Advertisement
Table of Contents
Related Manuals for Anchor Aurora 59
Summary of Contents for Anchor Aurora 59
- Page 1 Installation Instructions 59’ Aurora Tent Non-Certified Installation Modified from Fully Certified Version Please read all assembly / installation instructions before the installation or removal of this product. 7701 Highway 41 N Evansville, IN 47725 Phone: 812-867-2421 Fax: 812-867-1429 1-800-544-4445 email: tents@anchorinc.com www.anchorinc.com EC 6067 AU59CERT-124...
-
Page 2: Table Of Contents
Index Introduction ......................3 Safety Notes........................ 3 Parts Illustrations......................4 Part Numbers Chart.......................5 Stake and Pole Layout....................5 Tent Layout........................6 Stake Bars........................6 Lacing........................... 6 Lace Flap........................7 Attach Guys........................7 Raise Poles......................... 8 Winch Tensioning......................8 Final Adjustment......................9 Take Down........................9 Walls.......................... -
Page 3: Introduction
The requirements as specified must be followed. The installer/ owner must read the assembly instructions completely prior to any installation. Particular attention must be given to anchor- ing! See Caution Statement on back page of this manual Work from step to step. -
Page 4: Parts Illustrations
IMPORTANT: The installation of this Tent should be performed/supervised by knowledgeable tent installers with a clear understanding of safety issues as well as the methods of anchoring. The installer/owner must read the assembly instructions completely prior to any installation. Particular attention must be given to anchoring! See Caution Statement on back page of this manual. -
Page 5: Part Numbers Chart
Part Numbers Chart PART NUMBERS AND DESCRIPTIONS PART NUMBERS AND DESCRIPTIONS Number Description Number Description Install/Staking 8048627 Aurora Weathershield Wall 7’ X 10’ Sheer White 8048628 Aurora Weathershield Wall 7’ X 10’ Clear Vinyl 33000 2’ Stake Bar 8048629 Aurora Weathershield Wall 8’ X 10’ Sheer White 33100 4’... -
Page 8: Raise Poles
Raise Center Poles: Raise center poles in the order and manner stated in the paragraph below. From underneath the tent, insert the pin of the center pole through the grommet at the peak and tie jump rope. Push the pole with the fabric up until the center pole is approximately half way raised. -
Page 9: Stake Bars
Final Adjustment: Due to changes in climactic conditions, periodic inspection and adjustment should be made. Protective covers are recommended for all stakes and stake bars. Important: Check guys periodically for tight- ness and maintenance of good condition. Proper installation suitable to site conditions is the responsibility of the installer. -
Page 10: Flag Pole Installation
Aurora Flag Pole Installation Instructions Knurled Knob screwed into top of pole to secure PVC Flag assembly on pole. PVC Flag Assembly fitted onto Flag Pole Tent is trapped between Flag pole. welded Flange and bottom Flange. Flange welded to Flag Pole. Top holes of tent fabric at lace. -
Page 11: More Staking Layouts
MORE STAKING LAYOUTS Note: Stake guys out at 1’-0” less than side pole height. -
Page 12: Queen/King Mids - Left Right Designation
QUEEN/KING MIDS - LEFT RIGHT DESIGNATION LEFT RIGHT PLAN VIEW LEFT RIGHT SIDE VIEW... -
Page 13: Caution Statement
Regardless of the number of stakes we suggest, we make no representation or warranty as to whether this speci c number of stakes will meet the local tent code. Anchor does not, nor can it make any suggestions, representation, or warranties about the adequate staking required at each speci...
