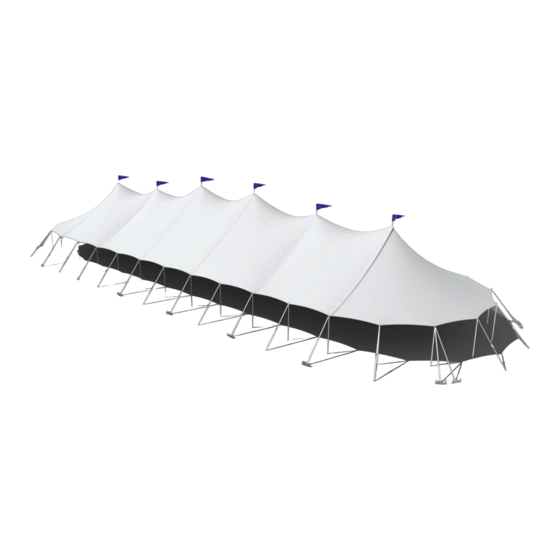

Installation Instructions 45’ Aurora Tent Non-Certifi ed Installation Please read all assembly / installation instructions before the installation or removal of this product. 7701 Highway 41 N Evansville, IN 47725 Phone: 812-867-2421 Fax: 812-867-1429 1-800-544-4445 email: tents@anchorinc.com www.anchorinc.com EC5811 AU32NC 621...
Index Introduction ......................3 Safety Notes........................ 3 Parts Illustrations......................4 Part Numbers Chart.......................5 Stake and Pole Layout....................5 Tent Layout........................6 Staking........................6 Lacing........................... 6 Lace Flap........................7 Attach Guys........................7 Raise Poles......................... 8 Winch Tensioning......................8 Final Adjustment......................9 Take Down........................9 Walls..........................
The requirements as specified must be followed. The installer/ owner must read the assembly instructions completely prior to any installation. Particular attention must be given to anchor- ing! See Caution Statement on back page of this manual Work from step to step.
IMPORTANT: The installation of this Tent should be performed/supervised by knowledgeable tent installers with a clear understanding of safety issues as well as the methods of anchoring. The installer/owner must read the assembly instructions completely prior to any installation. Particular attention must be given to anchoring! See Caution Statement on back page of this manual.
Part Numbers Chart PART NUMBERS AND DESCRIPTIONS PART NUMBERS AND DESCRIPTIONS Number Description Number Description 65872 Center Pole - 4” Alum. Schedule 40 Pipe - 21’ 8048612 45’ W Installation Layout Cable only 65873 Center Pole - 4” Alum. Schedule 40 Pipe - 22’ 8048601 45’...
Tent Layout: Lay Ground Cloth over the area to be covered by the tent. Unfold the tent top fabric over the ground cloth, with right side up. Unfold and stretch fabric out so that side pole plates match placement marked on ground.
Finishing Lace: At bottom of Lace, Tie off long loop to bottom loop as shown. Fasten snap to web loop. Fastening Lace Flap: Go back up to center pole hole and begin fastening fl aps together. Walk on tent with stocking feet for protection of fabric.
Raise Side Poles: Insert the sidepoles into the grom- mets and plates around the perim- eter. Stand up to nearly vertical and apply just enough tension on guys to keep poles in position. Raise Center Poles: From underneath the tent, insert the pin of the centerpole through the grommet at the peak and push the pole with the fabric up until the...
Final Adjustment: Due to changes in climactic conditions, periodic inspection and adjustment should be made. Protective covers are recommended for all stakes and stake bars. Important: Check guys periodically for tight- ness and maintenance of good condition. Proper installation suitable to site conditions is the responsibility of the installer.
Aurora Flag Pole Installation Instructions Knob with set screw to hold flag pvc assembly onto pole. Flag pvc Assembly Collar with knob set screw. Collar traps flag pole on tent. Top holes of tent fabric at lace. (cut away for clarity) Properly Installed Flag Pole Flag pole.
