Summary of Contents for Anchor Economy Tent 40 CLASSIC PLUS

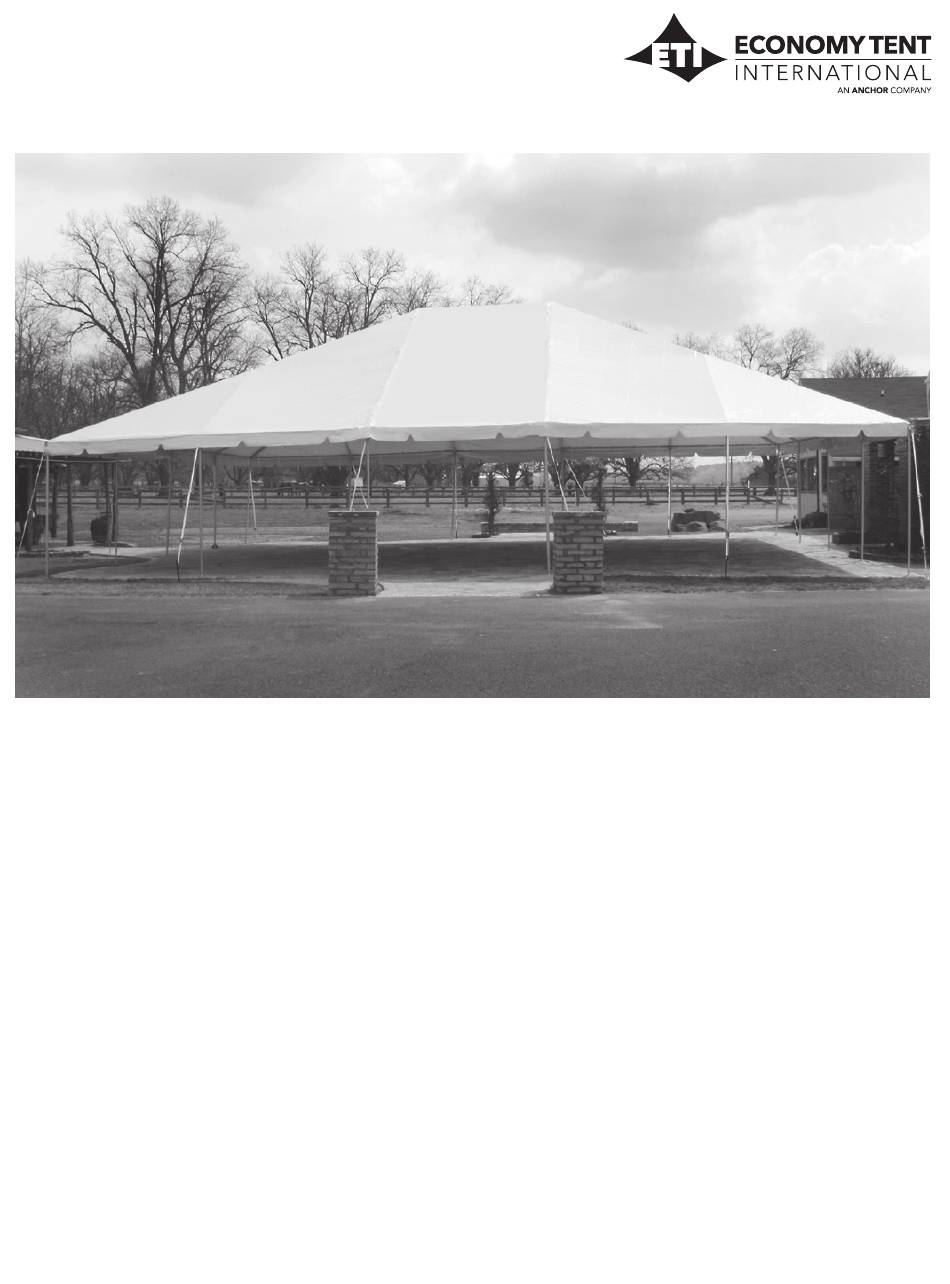

- Page 1 40’ ASSEMBLY INSTRUCTIONS CLASSIC PLUS FRAME TENTS 2995 NW 75th Street, Miami, FL 33147-5943 • 305-691-0191 • 800-438-3226 TOLL FREE: sales @economytent.com • economytent.com EMAIL: WEB:...
- Page 2 SAFETY BEST PRACTICES STAKING / ANCHORING BASICS Economy Tent International products are of superior design By law you are required to contact your local “Call before you and function best in the parameters of these instructions. It dig” number before you plan to dig or drive tent stakes for your is recommended that the instructions are carefully read and local utility company to mark the location of all underground followed.
- Page 3 40’ ASSEMBLY INSTRUCTIONS CLASSIC PLUS FRAME TENTS TUBING, FITTING & EQUIPMENT LIST 40’ TUBING 40’ FITTINGS • 9’4” Side Eave Bar • 9’4” Top Bar • 14’4” Upper Corner Support • 10’5½” Corner Rafter Support • 14’4” Double Tube Corner Rafter Bar •...
- Page 4 40’ ASSEMBLY INSTRUCTIONS CLASSIC PLUS FRAME TENTS EAVE ASSEMBLY Beginning in a corner slide the Side Eave Bars over the pre-positioned Corner, Mid-Leg Rafter, and 6-Way Mid-Leg Rafter fittings. Lock them into place using the snap buttons creating a ridged perimeter. 10’...
- Page 5 40’ ASSEMBLY INSTRUCTIONS CLASSIC PLUS FRAME TENTS Begin assembling the two-piece corner rafter by attaching one of the two 14’4” Double Tube Corner Rafter to the Corner Fitting. Next attach the 6-Way Corner Rafter Fitting to the other end of the 14’4” tube. Attach the second 14’4”...
- Page 6 40’ ASSEMBLY INSTRUCTIONS CLASSIC PLUS FRAME TENTS CROSS BRACING IMPORTANT: Cross Bracing Tubing and Fittings are supplied with the tent framing and must first be in place before raising the tent on the legs. For stability and to prevent frame bowing, solid interior bracing using 14’4”...
- Page 7 40’ ASSEMBLY INSTRUCTIONS CLASSIC PLUS FRAME TENTS When raising the frame off the ground, be sure to lift as evenly as possible. Do not allow the frame to be higher in the center than at the ends. Do not lift the frame any higher than necessary to attach the Legs in their 7-foot position.
- Page 8 40’ DISASSEMBLY INSTRUCTIONS CLASSIC PLUS FRAME TENTS Remove Sidewalls, Liners and Drapes. Fold and roll for cleaning and/or storage. Loosen all Ratchet Straps or Guy Ropes. Leave Corner anchoring in place for now. Remove all anchoring from the side Mid-Rafter Legs. Adjust the tent height on all the Legs to the lowest height.
