12 Getting Started
No. Item
24 POWER Button
25 COMM MANAGER
Button
26 CAMERA Button
27 Stylus
28 microSD Card Slot Insert a microSD memory card for storing data.
29 Microphone
30 Strap Holder
31 Infrared Port
32 RESET Button
33 Sync Connector/
Earphone Jack

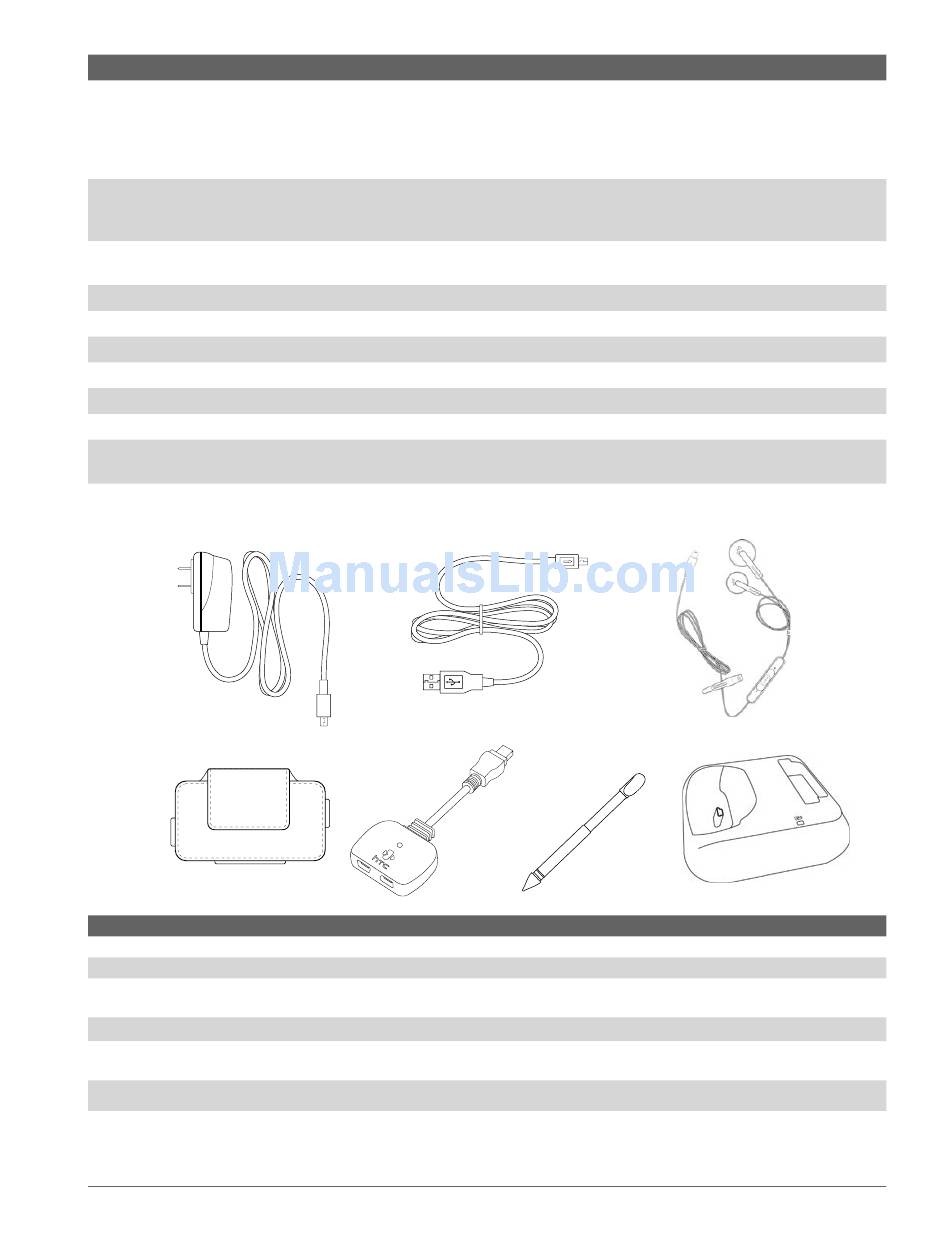

Accessories
1
4
No. Accessory
1 AC adapter
2 USB Sync cable
3 Mini-USB Stereo
headset
4 Pouch
5 One-to-two Splitter
Adapter
6 Stylus
7 USB Cradle
Function
•
Press and hold to turn on the device.
•
Press to turn off the display temporarily. This switches your device to Sleep mode. You can still
receive calls and messages when your device is in Sleep mode.
•
Press and hold (for about 5 seconds) to turn off the power completely. All functions including
the phone will be unavailable for use.
Press to open the Comm Manager. Comm Manager lets you easily turn on/off your device's
connections (such as Bluetooth, Wi-Fi, enable 'Flight Mode' and cellular data connection), ringer,
phone, etc.
Press to launch the Camera; press again to take a photo or video clip, depending on the specified
capture mode.
Use the stylus to write, draw, or select items on the touch screen.
Speak into the microphone during a phone call or voice recording.
Attach a strap for carrying your device.
Exchange files or data with other infrared enabled devices wirelessly.
With the stylus, press the RESET button to soft-reset your device.
Connect the supplied power adapter to charge the battery or the USB cable to synchronize data
with the PC. .
2
5
Function
Recharges the battery.
Connects your device to a PC and synchronizes data.
Provides a volume control slider and a Send/End button. Press the Send/End button to pick
up a call or put a call on hold; press and hold the button to end the call.
Comes with belt clip. Store your device in the pouch to keep it from dust and scratches.
Lets you connect the supplied AC adapter and mini-USB stereo headset to your device at the
same time.
An extra stylus pen is provided.
Allows you to recharge your device and a second battery (if available), and to use ActiveSync
to synchronize data between your device and your PC.
• To recharge the device (or battery), connect the cradle to the electrical outlet.
• To synchronize data, connect the cradle to the USB port on your PC.
3
6 7
