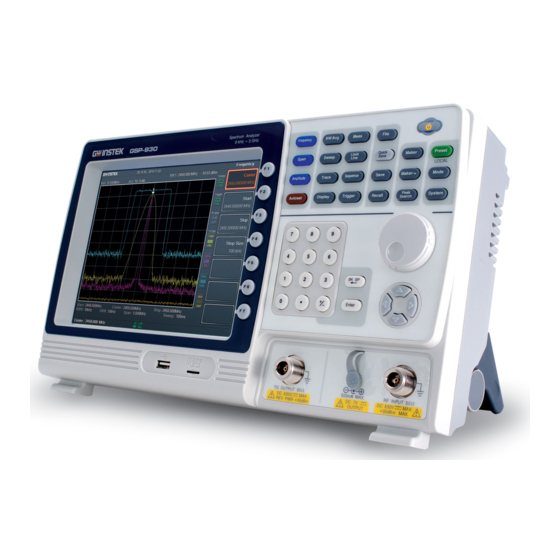

Spectrum Analyzer

GSP-930

PROGRAMMING MANUAL

GW INSTEK PART NO. 82SP-93000M01

Table of Contents

Chapters

Table of Contents

Need help?

Do you have a question about the GSP-930 and is the answer not in the manual?

Questions and answers

Summary of Contents for GW Instek GSP-930

Page 1 Spectrum Analyzer GSP-930 PROGRAMMING MANUAL GW INSTEK PART NO. 82SP-93000M01...
Page 2 ISO-9001 CERTIFIED MANUFACTURER...
Page 3 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company. The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.
Page 5: Table Of Contents
エラー! スタイルが定義されていません。 Table of Contents SAFETY INSTRUCTIONS ............. 2 GETTING STARTED ..............7 GSP-930 Introduction........8 Accessories ..........10 Appearance ..........12 REMOTE CONTROL ..............23 Interface Configuration......24 Command Syntax........34 Status Registers......... 38 Command List ..........49...
Page 6: Safety Instructions
エラー! スタイルが定義されていません。 AFETY INSTRUCTIONS This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to insure your safety and to keep the instrument in the best possible condition. Safety Symbols These safety symbols may appear in this manual or on the instrument.
Page 7 エラー! スタイルが定義されていません。 Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Safety Guidelines General Guideline Do not place any heavy object on the instrument. •...
Page 8 GSP-930 User Manual Power Supply AC Input voltage range: 100V~240V • Frequency: 50/60Hz • WARNING To avoid electrical shock connect the protective • grounding conductor of the AC power cord to an earth ground. Battery Rating: 10.8V, 6 cell Li-ion battery •...
Page 9 エラー! スタイルが定義されていません。 Storage Location: Indoor • environment Temperature: -20°C to 70°C • Humidity: <90% • Disposal Do not dispose this instrument as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased.
Page 10 GSP-930 User Manual Power cord for the United Kingdom When using the instrument in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED...
Page 11: Getting Started
This chapter provides a brief overview of the GSP- 930, the package contents, instructions for first time use and an introduction to the front panel, rear panel and GUI. GSP-930 Introduction ..............8 Main Features ................8 Accessories ..................10 Package Contents..............11...
Page 12: Introduction
GSP-930 User Manual GSP-930 Introduction The GSP-930 is the most advanced spectrum analyzer GW Instek has produced to date. The GSP-930 features a split window display to view data in spectrum, topographic or spectrographic views. Main Features Performance 9kHz~3GHz bandwidth •...
Page 13 エラー! スタイルが定義されていません。 OCBW measurement • Channel power measurement • Demodulation analyzer • Diverse marker functions and features with Peak • Table Sequence function to automatically perform pre- • programmed sequential operations Optional battery operation • Interface 8.4 color LCD (800×600) •...
Page 14: Accessories
GSP-930 User Manual Accessories Standard Part number Description Accessories Region dependant User manual Region dependant Power cord Options Option number Description Opt1. Tracking generator Opt2. Battery (11.1V/5200mAH Li-ion battery) Opt3. GPIB interface (IEEE 488 bus) Optional Part number Description Accessories...
Page 15: Package Contents
エラー! スタイルが定義されていません。 Package Contents Check the contents before using the GSP-930. Opening the box Contents Main unit Power cord x1 (region • • (single unit) (may include optional dependent) GPIB, TG output) Optional battery pack • Quick Start manual •...
Page 16: Appearance
GSP-930 User Manual Appearance GSP-930 Front Panel LCD display 800×600 color LCD display. The display shows the soft keys for the current function, frequency, amplitude and marker information. Function keys The F1 to F7 function keys directly correspond to the soft keys on the right-hand side of display.
Page 17 エラー! スタイルが定義されていません。 Sets the span, with options for full span, zero span and last span. Sets the amplitude reference level, attenuation, pre-amplifier controls, scale and other options for attenuation and scale. Automatically searches the peak signal with maximum amplitude and displays it with appropriate horizontal and vertical scales.
Page 18 GSP-930 User Manual Sets the triggering modes. File File utilities options The Quick Save utility allows you to save either the state, trace, screen limit line, correction or sequence with only a single press. Save the trace, state etc., and save options.
Page 19 エラー! スタイルが定義されていません。 Mode key sets the spectrum analyzer to either Spectrum or Power Meter mode. The System key shows system information, settings and other system related functions. Power key Turns the instrument on/off. Scroll wheel Edit values, select listed items. Arrow keys Increment/decrement values (in steps), select listed items.
Page 20 GSP-930 User Manual Numeric keypad The numeric keypad is used to enter vales and parameters. It is often used in BK SP conjunction with the arrow keys and scroll Enter wheel. TG output port The Tracking Generator (TG) output source.
Page 21 エラー! スタイルが定義されていません。 Rear Panel RS232 RS232 9 pin DSUB port. IF OUT SMA IF Out port. DVI-I DVI video out port. Supports SVGA (800X600) @ 60Hz. Power Socket Power Socket: 100~240V, 50/60Hz.
Page 22 GSP-930 User Manual Battery pack Voltage: 10.8V Capacity: 5200mAH REF IN BNC female reference input. REF OUT BNC female reference output: 10MHz, 50Ω impedance Security Lock ALARM OUT BNC female open collector Alarm output. TRIG IN/GATE IN BNC female 3.3V CMOS trigger input/gated sweep input.
Page 23 エラー! スタイルが定義されていません。 Display Reference level Displays the reference level. Attenuation Displays the vertical scale (attenuation) of the input signal. Date/Time Displays the date and time. Marker Displays marker information. information LXI icon This icon indicates the status of the LXI connection. For details, see page 25.
Page 24 GSP-930 User Manual Sweep settings Sweep icon that shows the sweep status. Trigger settings Trigger icon that shows the trigger status. Pre-amp settings Pre-amplifier icon that shows the Pre-amplifier status. Trace and Trace icon that shows the trace type detection...
Page 25 エラー! スタイルが定義されていません。 Status Icon Overview PreAmp Indicates that the pre amplifier is on. Shown when running on AC power. AC Charge Shown when the AC power is charging the battery. Alarm Off Alarm buzzer output is currently off. Alarm On Alarm buzzer output is currently on.
Page 26 GSP-930 User Manual External Trigger External trigger signal is being used. Math Trace math is being used. Sequence Shown when a sequence is running. Indicator Sweep Indicator Indicates that the sweep time is manually set. Tracking Indicates the tracking generator is generator turned on.
Page 27: Remote Control
エラー! スタイルが定義されていません。 EMOTE CONTROL This chapter describes the basic configuration of IEEE488.2 based remote control. This chapter includesinterface configuration, a remote control overview as well as the control syntax and commands. Interface Configuration ..............24 Command Syntax .................34 Status Registers ................38 Command List................49...
Page 28: Interface Configuration
GSP-930 User Manual Interface Configuration Configure to USB Remote Interface Type A, host PC side configuration connector Rear panel Type B, slave GSP side connector 1.1/2.0 (full speed/high speed) Speed USB TMC (USB T&M class) USB Class 1. Connect the USB cable to the rear Panel operation panel USB B port.
Page 29 No loop or parallel connection • Configure the LAN and LXI Interface The GSP-930 is a class C LXI compliant instrument. The LXI specification allows instrumentation to be configured for basic remote control or monitoring over a LAN. For details on the LXI specification and compliance classes, please see the LXI website @ http://www.lxistandard.org.
Page 30 GSP-930 User Manual Settings 7. Press More 1/2[F7]>RmtInterface> > LAN[F2]>LAN Config[F1] to set the LAN settings: IP Address[F1] Sets the IP address. Subnet Mask[F2] Sets the subnet mask. Default Gateway[F3] Sets the default gateway. DNS Server[F4] Sets the DNS server address...
Page 31 LAN can be used. 13. Press >More 1/2[F7]>RmtInterface LAN Reset[F3] Config[F2]> to reset the LAN. 14. The GSP-930 will now automatically reboot. Each time the LAN is reset, the default password Note is restored. Default password: lxiWNpwd...
Page 32 GSP-930 User Manual Configure RS232C Background The RS232C interface is used for remote control with a PC. RS232C Baud Rate Stop bit: 1 (fixed) Configuration Parity: none (fixed) Data bit: 8 (fixed) settings Connection Connect an RS232C cable from the PC to the rear panel RS232 port.
Page 33 GW-INSTEK,GSP-930, , V.X.X.X.X XXXXXXXXXXXX • Manufacturer: GW-INSTEK Model number : GSP-930 Serial number : XXXXXXXXXXXX Firmware version : V.X.X.X For further details, please see the programming Note manual, available on the GW Instek web site @ www.gwinstek.com.
Page 34 The Welcome Page lists all the LXI and LAN configuration settings as well as the instrument identification. The instrument identification can be disabled from this page. The LXI icon in the GSP-930 display will Note flash when the Identification setting is turned on.
Page 35 エラー! スタイルが定義されていません。 View & Modify The View & Modify Configuration allows you to Configuration modify the LAN settings from the browser. A password must be entered to alter the settings. Password: lxiWNpwd [Note: password is case sensitive.] If the “Factory Defaults” option is chosen, the Note password will be reset back to the default password...
Page 36 [Note: password is case sensitive.] Get Image The Get Image page allows the browser to remotely capture a screenshot of the GSP-930 display. For further details, please see the programming Note manual, available on the GW Instek web site @ www.gwinstek.com.
Page 37 Please use the National Instruments Measurement check & Automation Controller software to confirm GPIB/LAN functionality. See the National Instrument website, http://www.ni.com for details. For further details, please see the programming Note manual, available on the GW Instek web site @ www.gwinstek.com.
Page 38: Command Syntax
GSP-930 User Manual Command Syntax Partial compatibility IEEE488.2 Compatible Partial compatibility Standard SCPI, 1999 Command SCPI commands follow a tree-like structure, Structure organized into nodes. Each level of the command tree is a node. Each keyword in a SCPI command represents each node in the command tree.
Page 39 エラー! スタイルが定義されていません。 Query A query is a simple or compound command followed by a question mark (?). A parameter (data) is returned. Example CALCulate:CSO:STATe? Compound Two or more commands on the same command line. Compound commands are separated with either a semi-colon (;) or a semi-colon and a colon (;:).
Page 40 GSP-930 User Manual Long CALCulate:ACPR:STATe? form calculate:acpr:state? CALCULATE:ACPR:STATE? Short CALC:ACPR:STAT? form calc:acpr:stat? Square Brackets Commands that contain square brackets indicate that the contents are optional. The function of the command is the same with or without the square bracketed items, as shown below.
Page 41 エラー! スタイルが定義されていません。 <ampl> NR3 + 30 mv <trace name> NR1 trace1 <time> NR3 + unit 2.3e-6 ms <ip address> string 172.16.20.20 Message Line feed code Terminator...
Page 42: Status Registers
GSP-930 User Manual Status Registers Status Registers Overview Description The status registers are used to determine the status of the spectrum analyzer. The status registers maintain the status of the pass/fail limits, trigger status and other operation statuses. The status registers are arranged in a number of...
Page 43 エラー! スタイルが定義されていません。 Questionable Questionable Questionable Questionable Operation Status Status Status ACP Limit Status SEM Status TOI Limit Register Frequency Register Limit Register Register Register Not used Not used Not used Not used Adj4 Low Offset 5 Fail Lower Fail Not used Adj4 High Offset 5 Fail...
Page 44 Event Enable Register • Condition The condition registers report the state of the Registers GSP-930. Condition registers can only be read. PTR Registers The positive transistion registers are used to filter for events that occur from a negative to a positive transition.
Page 45 エラー! スタイルが定義されていません。 Status Byte Register (STB) Overview The Status Byte register consolidates the status events of all the status registers. The Status Byte register can be cleared with the *CLS command. Any bits set in the Status byte register acts as a summary register for all the other status registers and indicates if there is a service request, an error in the Error Queue or data in the Output Queue.
Page 46 GSP-930 User Manual ESB: This is the summary bit for the Standard Event Register. MSS/RQS: The MSS bit is the summary bit for the Service Request Enable Register. The RQS bit is set to 1 when the MSS bit is set to 1.
Page 47 エラー! スタイルが定義されていません。 Operation Status Register Overview The Operation Status Register Group indicates the operating status of the GSP-930. Bit Summary Weight Description Sweeping: Indicates that a sweep is in progress. Measuring: The instrument is currently performing a measurement. Waiting for Trigger: The instrument is in a “wait for trigger”...
Page 48 GSP-930 User Manual 8192 Pmet Limit Fail: This bit is set to 1 when the power meter limit has been violated.
Page 49 エラー! スタイルが定義されていません。 Questionable Status Frequency Register Overview The Questionable Status Frequency Register indicates if the span or BW settings are invalid. Bit Summary Weight Description Invalid Span or BW: This is bit is set to 1 when there is an invalid span or bandwidth (setting) during the frequency count.
Page 50 GSP-930 User Manual Questionable Status SEM Limit Register Overview The Questionable Status SEM Limit Register Group indicates if any of the SEM offset limits have been tripped.
Page 51 エラー! スタイルが定義されていません。 Bit Summary Weight Description Offset 1 Upper Fail: This bit is set to 1 when the XXX upper limit has been violated. Offset 1 lower Fail: This bit is set to 1 when the XXX lower limit has been violated.
Page 52 GSP-930 User Manual Questionable Status TOI Limit Register Overview The Questionable Status TOI Limit Register Group indicates if the 3rd Order Upper or Lower limit has been tripped. Bit Summary Weight Description 3rd Upper Fail: This bit is set to 1 when the 3rd Order Upper limit has been tripped.
Page 53: Command List
エラー! スタイルが定義されていません。 Command List SCPI Commands *CLS ..................... 60 *IDN....................60 *ESE....................61 *ESR? ................... 61 *OPC..................... 61 *RST ..................... 62 *SRE....................62 *STB? ................... 62 *TST....................62 *WAI ....................63 CALCulate :CALCulate:ACPR:ACHannel<n>:HLIMit:FAIL? .... 65 Commands :CALCulate:ACPR:ACHannel<n>:LLIMit:FAIL?..... 66 :CALCulate:ACPR:ACHannel<n>:LOWer? ...... 66 :CALCulate:ACPR:ACHannel<n>:UPPer?.......
Page 54 GSP-930 User Manual :CALCulate:DEMod: AM:RESult:MAXimum?....73 :CALCulate:DEMod:AM:STATe..........74 :CALCulate:DEMod:EARPhone:STATe......74 :CALCulate:DEMod:FM:RESult:CURRent? ......75 :CALCulate:DEMod: FM:RESult:MINimum? .....75 :CALCulate:DEMod: FM:RESult:MAXimum? ....76 :CALCulate:DEMod:FM:STATe ..........76 :CALCulate:JITTer:STATe ............77 :CALCulate:JITTer:CARRier:POWer? .......77 :CALCulate:JITTer: PHASe? ..........77 :CALCulate:JITTer:TIME?............78 :CALCulate:LIMit<n>:CLEar..........78 :CALCulate:LIMit<n>:DATA ..........78 :CALCulate:LIMit:FAIL? ............78 :CALCulate:LIMit:LOW ............79 :CALCulate:LIMit:HIGH ............79 :CALCulate:LIMit<n>:MARKer..........79 :CALCulate:LIMit:PASS:MODE..........80 :CALCulate:LIMit:STATe............80 :CALCulate:LIMit<n>:TRACe..........80 :CALCulate:MARKer:AOFF ...........81 :CALCulate:MARKer<n>:FCOunt:RESolution....81...
Page 55 エラー! スタイルが定義されていません。 :CALCulate:MARKer<n>:TRACe......... 88 :CALCulate:MARKer<n>:TRACe:AUTO......88 :CALCulate:MARKer<n>:TYPE..........89 :CALCulate:MARKer<n>:X ............ 89 :CALCulate:MARKer<n>:Y? ..........89 :CALCulate:MATH:PDIF............90 :CALCulate:MATH:LDIF ............90 :CALCulate:MATH:LOFF ............90 :CALCulate:NDB:STATe............91 :CALCulate:NDB:BANDwidth|BWIDth? ......91 :CALCulate:NORMalize:STATe........... 91 :CALCulate:OCBW:STATe............ 92 :CALCulate:OCBW:BANDwidth|BWIDth?......92 :CALCulate:OCBW:CHPower?..........92 :CALCulate:OCBW:POWer?..........93 :CALCulate:PMETer:POWer?..........93 :CALCulate:PMETer:LIMit:STATe........93 :CALCulate:PMETer:LIMit:FAIL?........
Page 56 GSP-930 User Manual :DISPlay:DEMod[:WINDow]:TRACe:X[:SCALe]:RVALue ....................... 100 :DISPlay:DEMod[:WINDow]:TRACe:Y[:SCALe]:AUTO ....................... 101 :DISPlay:DEMod[:WINDow]:TRACe:Y [:SCALe]:PDIVision ............... 101 :DISPlay:DEMod[:WINDow]:TRACe:Y [:SCALe]:RPOSition.............. 101 :DISPlay:DEMod[:WINDow]:TRACe:Y[:SCALe]:RVALue ....................... 102 :DISPlay[:WINDow]:NORMal..........102 :DISPlay[:WINDow]:SPECtrogram........102 :DISPlay[:WINDow]:SPLit:NORMal ........103 :DISPlay[:WINDow]:SPLit:NORMal:ALTernate.... 103 :DISPlay[:WINDow]:SPLit:NORMal:TYPE...... 103 :DISPlay[:WINDow]:SPLit:SPECtrogram ....... 103 :DISPlay[:WINDow]:SPLit:TOPO ........104 :DISPlay[:WINDow]:SPLit:TOPO ........104 :DISPlay[:WINDow]:TRACe<n>:MODE ......104 :DISPlay[:WINDow]:TRACe:Y:DLINe .......
Page 57 エラー! スタイルが定義されていません。 INPut Commands :INPut:ATTenuation............... 111 :INPut:ATTenuation:AUTO ..........111 :INPut:IMPedance..............112 :INPut:OFFSet ................. 112 MMEMory :MMEMory:CATalog?............. 113 commands :MMEMory:CDIRectory............113 :MMEMory:COPY..............114 :MMEMory:DELete ..............114 :MMEMory:DESTination ............114 :MMEMory:LOAD:CORRection.......... 115 :MMEMory:LOAD:LIMit............115 :MMEMory:LOAD:PMET............115 :MMEMory:LOAD:SEQuence..........115 :MMEMory:LOAD:STATe............. 116 :MMEMory:LOAD:TRACe ............ 116 :MMEMory:MOVE..............
Page 58 GSP-930 User Manual [:SENSe]:ACPR:LLIMit............125 [:SENSe]:ACPR:HELP............125 [:SENSe]:ACPR:SPACe............126 [:SENSe]:ASET:AMPLitude..........126 [:SENSe]:ASET:AMPLitude:AUTO ........126 [:SENSe]:ASET:RUN............. 127 [:SENSe]:ASET:SPAN............127 [:SENSe]:ASET:SPAN:AUTO ..........127 [:SENSe]:AVERage:COUNt ..........128 [:SENSe]:AVERage:STATe..........128 [:SENSe]:AVERage:TYPE ........... 128 [:SENSe]:BANDwidth|BWIDth[:RESolution] ....129 [:SENSe]:BANDwidth|BWIDth[:RESolution]:AUTO... 129 [:SENSe]:BANDwidth|BWIDth:VIDeo......129 [:SENSe]:BANDwidth|BWIDth:VIDeo:AUTO ....130 [:SENSe]:CHANnel:SPACe:DOWN ........130 [:SENSe]:CHANnel:SPACe:UP .........
Page 59 エラー! スタイルが定義されていません。 [:SENSe]:FREQuency:SPAN..........138 [:SENSe]:FREQuency:SPAN:FULL........138 [:SENSe]:FREQuency:SPAN:PREVious......138 [:SENSe]:FREQuency:STARt ..........139 [:SENSe]:FREQuency:STOP..........139 [:SENSe]:LIMit<n>:DELete ..........139 [:SENSe]:JITTer:OFFSet:STARt........140 [:SENSe]:JITTer:OFFSet:STOP ........140 [:SENSe]:NDB:BANDwidth|BWIDth......... 140 [:SENSe]:OCBW:BANDwidth|BWIDth......140 [:SENSe]:OCBW:PERCent..........141 [:SENSe]:OCBW:SPACe............141 [:SENSe]:OCBW:SPAN............141 [:SENSe]:PMETer:FREQuency.......... 142 [:SENSe]:PMETer:HLIMit ............ 142 [:SENSe]:PMETer:HOLD:STATe ........142 [:SENSe]:PMETer:LLIMit............. 143 [:SENSe]:PMETer:PSENsor:MODE .........
Page 60 GSP-930 User Manual FREQuency:STOP?............... 149 [:SENSe]:SEMask:OFFSet<n>:ADDition: STARt:ABSolute? ..............150 [:SENSe]:SEMask:OFFSet<n>:ADDition:STARt: RELative?.................. 150 [:SENSe]:SEMask:OFFSet<n>:ADDition:STATe?..150 [:SENSe]:SEMask:OFFSet<n>:ADDition: STOP:ABSolute?..............151 [:SENSe]:SEMask:OFFSet<n>:ADDition:STOP: RELative?.................. 151 [:SENSe]:SEMask:OFFSet<n>:BANDwidth| BWIDth[:RESolution] ............152 [:SENSe]:SEMask:OFFSet<n>:BANDwidth|BWIDth[:RE Solution]:AUTO............... 152 [:SENSe]:SEMask:OFFSet<n>:FREQuency:STARt... 153 [:SENSe]:SEMask:OFFSet<n>:FREQuency:STOP..153 [:SENSe]:SEMask:OFFSet<n>:STARt:ABSolute ..153 [:SENSe]:SEMask:OFFSet<n>:STARt:RELative ..154 [:SENSe]:SEMask:OFFSet<n>:STATe ......154 [:SENSe]:SEMask:OFFSet<n>:STOP:ABSolute..
Page 61 エラー! スタイルが定義されていません。 [:SENSe]:SEQuence<n>:DELete ........161 [:SENSe]:SWEep:EGATe:DELay ........161 [:SENSe]:SWEep:EGATe:LENGth ........161 [:SENSe]:SWEep:EGATe:STATe ........162 [:SENSe]:SWEep:TIME ............162 [:SENSe]:SWEep:TIME:AUTO..........162 [:SENSe]:TOI:REFerence ............ 163 [:SENSe]:TOI:LIMit ..............163 SEQuence :SEQuence:MODE ..............164 commands :SEQuence:TEST:ACTive............ 164 SOURce SOURce Commands ............. 164 commands :SOURce:POWer[:LEVel][:IMMediate][:AMPLitude]. 165 :SOURce:POWer[:LEVel][:IMMediate][:AMPLitude] :OFFSet..................
Page 62 GSP-930 User Manual :SYSTem:COMMunicate:USB:MODE......172 :SYSTem:DATE............... 173 :SYSTem:ERRor:CLEar............173 :SYSTem:ERRor[:NEXT]? ........... 173 :SYSTem:KLOCk ..............173 :SYSTem:PRESet..............174 :SYSTem:PRESet:TYPE ............174 :SYSTem:PRESet:USER:SAVE......... 174 :SYSTem:REBoot ..............174 :SYSTem:SHUTdown ............174 :SYSTem:TIME ................ 175 :SYSTem:UPDate..............175 :SYSTem:VERSion:HARDware?........175 :SYSTem:VERSion:SOFTware?........175 STATus :STATus:OPERation:CONDition?........177 commands :STATus:OPERation:ENABle..........
Page 63 エラー! スタイルが定義されていません。 TRACe :TRACe[:DATA]? ..............179 commands TRIGger :TRIGger[:SEQuence]:DELay..........180 commands :TRIGger[:SEQuence]:DEMod:DELay ......180 :TRIGger[:SEQuence]:DEMod:LEVel....... 181 :TRIGger[:SEQuence]:DEMod:MODE......181 :TRIGger[:SEQuence]:DEMod:SLOPe ......181 :TRIGger[:SEQuence]:DEMod:SOURce ......182 :TRIGger[:SEQuence]:EXTernal:SLOPe......182 :TRIGger[:SEQuence]:MODE ..........182 :TRIGger[:SEQuence]:PMETer:SOURce ....... 183 :TRIGger[:SEQuence]:SOURce......... 183 :TRIGger[:SEQuence]:VIDeo:FREQuency..... 183 :TRIGger[:SEQuence]:VIDeo:LEVel......... 184 :TRIGger[:SEQuence]:VIDeo:SLOPe ......184 UNIT commands :UNIT:PMETer:POWer............
Page 64 GSP-930 User Manual SCPI Commands *CLS ....................60 *IDN....................60 *ESE....................61 *ESR? ....................61 *OPC .....................61 *RST ....................62 *SRE ....................62 *STB?....................62 *TST ....................62 *WAI ....................63 S et *CLS Description The *CLS command clears the Standard Event Status, Operation Status and Questionable Status registers. The corresponding Enable registers in each of the above registers are not cleared.
Page 65 エラー! スタイルが定義されていません。 Return parameter <string> Returns the instrument identification as a string in the following format: GW-INSTEK,GSP-930, XXXXXXXXXXXX,V.X.X.X.X Manufacturer: GW-INSTEK Model number : GSP-930 Serial number : XXXXXXXXXXXX Firmware version : V.X.X.X.X S et Query *ESE Description Sets or queries the Standard Event Status Enable register.
Page 66 GSP-930 User Manual Syntax *OPC Query Syntax *OPC? Return parameter 1 Returns 1 when all the outstanding commands have completed. S et *RST Description Performs a device reset. Configures the unit to a known configuration (default settings). This known configuration is independent of the usage history.
Page 67 エラー! スタイルが定義されていません。 Description Executes a self test. Query Syntax *TST? Return parameter 0 Returns “0” if there are no errors. Returns an error code <NR1> if there is an error. <NR1> S et *WAI Description Prevents any other commands or queries from being executed until all outstanding commands have completed.
Page 68 GSP-930 User Manual :CALCulate:DEMod: AM:RESult:MAXimum? ....73 :CALCulate:DEMod:AM:STATe..........74 :CALCulate:DEMod:EARPhone:STATe......74 :CALCulate:DEMod:FM:RESult:CURRent? ......75 :CALCulate:DEMod: FM:RESult:MINimum? .....75 :CALCulate:DEMod: FM:RESult:MAXimum?....76 :CALCulate:DEMod:FM:STATe ..........76 :CALCulate:JITTer:STATe ............77 :CALCulate:JITTer:CARRier:POWer? .......77 :CALCulate:JITTer: PHASe? ..........77 :CALCulate:JITTer:TIME?............78 :CALCulate:LIMit<n>:CLEar ..........78 :CALCulate:LIMit<n>:DATA...........78 :CALCulate:LIMit:FAIL? ............78 :CALCulate:LIMit:LOW ............79 :CALCulate:LIMit:HIGH ............79 :CALCulate:LIMit<n>:MARKer..........79 :CALCulate:LIMit:PASS:MODE ..........80 :CALCulate:LIMit:STATe............80 :CALCulate:LIMit<n>:TRACe ..........80 :CALCulate:MARKer:AOFF............81...
Page 69: Calculate:acpr:achannel:Hlimit:fail
エラー! スタイルが定義されていません。 :CALCulate:MARKer<n>:TRACe......... 88 :CALCulate:MARKer<n>:TRACe:AUTO ......88 :CALCulate:MARKer<n>:TYPE..........89 :CALCulate:MARKer<n>:X ............ 89 :CALCulate:MARKer<n>:Y? ..........89 :CALCulate:MATH:PDIF............90 :CALCulate:MATH:LDIF ............90 :CALCulate:MATH:LOFF ............90 :CALCulate:NDB:STATe............91 :CALCulate:NDB:BANDwidth|BWIDth? ......91 :CALCulate:NORMalize:STATe........... 91 :CALCulate:OCBW:STATe............ 92 :CALCulate:OCBW:BANDwidth|BWIDth? ......92 :CALCulate:OCBW:CHPower?..........92 :CALCulate:OCBW:POWer?..........93 :CALCulate:PMETer:POWer?..........93 :CALCulate:PMETer:LIMit:STATe........
Page 70: Calculate:acpr:achannel:Llimit:fail
GSP-930 User Manual Query Example :CALC:ACPR:ACH<n>:HLIM:FAIL? >0 :CALCulate:ACPR:ACHannel<n>:LLIMit: Query FAIL? Description Returns the ACPR lower limit pass/fail judgment for the selected channel. Query Syntax :CALCulate:ACPR:ACHannel<n>:LLIMit:FAIL? Parameter <n> <NR1>adjacent channel 1~3 Return parameter 0 <boolean>Pass <boolean>Fail Query Example :CALC:ACPR:ACH1:LLIM:FAIL? >0 :CALCulate:ACPR:ACHannel<n>:LOWer?
Page 71: Calculate:acpr:achannel:State
エラー! スタイルが定義されていません。 Parameter <n> <NR1>adjacent channel 1~3 Return parameter <NR3> Adjacent bandwidth in dBm Query Example :CALC:ACPR:ACH1:UPP? >1.921e+01 S et :CALCulate:ACPR:ACHannel<n>:STATe Query Description Sets or queries the state of the selected adjacent channel. Syntax :CALCulate:ACPR:ACHannel<n>:STATe {OFF|ON|0|1} Query Syntax :CALCulate:ACPR:ACHannel<n>:STATe? Parameter <n>...
Page 72: Calculate:acpr:chan:llimit:fail
GSP-930 User Manual :CALCulate:ACPR:CHAN:LLIMit:FAIL? Query Description Returns the ACPR lower limit pass/fail judgment for the main channel. Query Syntax :CALCulate:ACPR:CHAN:LLIMit:FAIL? Return parameter 0 <boolean>Pass <boolean>Fail Query Example :CALC:ACPR:CHAN:LLIM:FAIL? >0 Query :CALCulate:ACPR:CHPower? Description Returns the ACPR main channel power in the current chosen unit (default dBm).
Page 73: Calculate:cnr:result
エラー! スタイルが定義されていません。 Query Example :CALC:ACPR:STAT? >1 :CALCulate:CNR:RESult? Query Description Returns the CNR measurement result in dB. Query Syntax :CALCulate:CNR:RESult? Return parameter <NR3> CNR measurement in dB Query Example :CALC:CNR:RES? >-4.959e+01 S et Query :CALCulate:CNR:STATe Description Sets or queries the state of the CNR measurement function.
Page 74: Calculate:cso:state
GSP-930 User Manual Return parameter <NR3> CSO measurement in dB Query Example :CALC:CSO:RES? >4.04e+00 S et Query :CALCulate:CSO:STATe Description Sets or queries the state of the CSO measurement function. Syntax :CALCulate:CSO:STATe {ON|OFF|1|0} Query Syntax :CALCulate:CSO:STATe? Parameter CSO is off. CSO is on.
Page 75: Calculate:ctb:restart
エラー! スタイルが定義されていません。 Query Syntax :CALCulate:CTB:STATe? Parameter CTB is off. CTB is on. CTB is off. CTB is on. Return parameter 0 CTB is off. CTB is on. Query Example :CALC:CTB:STAT? >0 :CALCulate:CTB:RESTart S et Description Restarts the CTB measurement. Syntax :CALCulate:CTB:RESTart S et :CALCulate:DELTamarker<n>:PAIR:SPAN...
Page 76: Calculate:deltamarker:X
GSP-930 User Manual S et :CALCulate:DELTamarker<n>:X Query Description Sets or queries the selected delta marker position. Syntax :CALCulate:DELTamarker<n>:X <freq> Query Syntax :CALCulate:DELTamarker<n>:X? Parameter <n> Marker number. Return parameter <freq> <NR3> frequency in Hz. Example :CALC:DELT1:X? >1e+9 S et Query :CALCulate:DELTamarker<n>:Y Description Returns the selected delta marker Y axis value.
Page 77: Calculate:demod: Am:result:minimum
エラー! スタイルが定義されていません。 power Carrier power in dBm. carr freq. Carrier frequency in Hz. offset Carrier frequency offset in Hz. sinad Signal to noise and distortion ratio in dB Query Example :CALC:DEM:AM:RES:CURR? >9.840e+1,1.02e+2,-1.12e+1,3.21e+1,-1.14e+1, 2.7e+3,1.61e+1 :CALCulate:DEMod: AM:RESult:MINimum? Query Description Returns the minimum recorded measurement results for AM demodulation as a comma separated string.
Page 78: Calculate:demod:am:state
GSP-930 User Manual power Carrier power in dBm. carr freq. Carrier frequency in Hz. offset Carrier frequency offset in Hz. sinad Signal to noise and distortion ratio in dB Query Example :CALC:DEM:AM:RES:MAX? >9.840e+1,1.02e+2,-1.12e+1,3.21e+1,-1.14e+1, 2.7e+3,1.61e+1 S et :CALCulate:DEMod:AM:STATe Query Description Sets or queries the state of the AM Analysis function.
Page 79: Calculate:demod:fm:result:current
エラー! スタイルが定義されていません。 Example :CALC:DEM:EARP:STAT 1 :CALCulate:DEMod:FM:RESult:CURRent? Query Description Returns the measurement results for FM demodulation as a comma separated string. Query Syntax :CALCulate:DEMod:FM:RESult:CURRent? Return parameter <deviation,mode,rate,power,carr freq, offset,sinad> Deviation Frequency deviation in Hz. mode rate Modulation rate in Hz. power Carrier power in dBm.
Page 80: Calculate:demod: Fm:result:maximum
GSP-930 User Manual Query Example :CALC:DEM:FM:RES:MIN? >9.840e+1,1.02e+2,-1.12e+1,3.21e+1,-1.14e+1, 2.7e+3,1.61e+1 :CALCulate:DEMod: FM:RESult:MAXimum? Query Description Returns the maximum recorded measurement results for FM demodulation as a comma separated string. Query Syntax :CALCulate:DEMod:FM:RESult:MAXimum? Return parameter <deviation,mode,rate,power,carr freq, offset,sinad> Deviation Frequency deviation in %. mode rate Modulation rate in Hz.
Page 81: Calculate:jitter:state
エラー! スタイルが定義されていません。 S et :CALCulate:JITTer:STATe Query Description Sets or queries the state of the Jitter Analysis function. Syntax :CALCulate:JITTer:STATe {ON|OFF|1|0} Query Syntax :CALCulate:JITTer:STATe? Parameter Turn Jitter Analysis off. Turn Jitter Analysis on. Turn Jitter Analysis off. Turn Jitter Analysis on. Return parameter 0 Jitter Analysis is off.
Page 82: Calculate:jitter:time
GSP-930 User Manual :CALCulate:JITTer:TIME? Query Description Returns the carrier jitter time in seconds. Query Syntax :CALCulate:JITTer:TIME? Return parameter <NR3> Seconds Query Example :CALC:JITT:TIME? >.5.31e-08 :CALCulate:LIMit<n>:CLEar S et Description Clears the High Limit, Low Limit and the Pass/Fail state for the selected limit line.
Page 83: Calculate:limit:low
エラー! スタイルが定義されていません。 Description Returns the Pass/Fail judgment. Query Syntax :CALCulate:LIMit:FAIL? Return parameter 0 Pass Fail Query Example :CALC:LIM:FAIL? >1 :CALCulate:LIMit:LOW S et Description Selects which limit line is used for the low limit. Syntax :CALCulate:LIMit:LOW <limit num> Parameter <limit num> <NR1> 1~5 Example :CALC:LIM:LOW 2 S et...
Page 84: Calculate:limit:pass:mode
GSP-930 User Manual S et :CALCulate:LIMit:PASS:MODE Query Description Sets or queries the Pass/Fail conditions for the limit line testing. Syntax :CALCulate:LIMit:PASS:MODE {ALL|MAX|MIN} Query Syntax :CALCulate:LIMit:PASS:MODE? Parameter/ All-in. Return Parameter MAX Max-In Min-In Example :CALC:LIM:PASS:MODE ALL S et Query :CALCulate:LIMit:STATe Description Turns the current limit line on/off.
Page 85: Calculate:marker:aoff
エラー! スタイルが定義されていません。 Parameter <n> <NR1> limit line 1~5 <offset> Example :CALC:LIM2:TRAC 10 S et :CALCulate:MARKer:AOFF Description Turns all the markers off. Syntax :CALCulate:MARKer:AOFF Example :CALC:MARK:AOFF S et :CALCulate:MARKer<n>:FCOunt:RESolution Query Description Sets or queries the frequency counter resolution in Hz for the selected marker. Syntax :CALCulate:MARKer<n>:FCOunt:RESolution <freq>...
Page 86: Calculate:marker:Fcount:state
GSP-930 User Manual Parameter <n> Marker number 1~6 Auto is off. Auto is on. Auto is off. Auto is on. Return parameter 0 Auto is off. Auto is on. Example :CALC:MARK1:FCO:RES:AUTO? S et Query :CALCulate:MARKer<n>:FCOunt:STATe Description Sets or queries the state of the frequency counter function.
Page 87: Calculate:marker:Noise:state
エラー! スタイルが定義されていません。 S et :CALCulate:MARKer<n>:NOISe:STATe Query Description Sets or queries the state of the Marker Noise function. Syntax :CALCulate:MARKer<n>:NOISe:STATe {ON|OFF|1|0} Query Syntax :CALCulate:MARKer<n>:NOISe:STATe? Parameter Turn marker noise off. Turn marker noise on. Turn marker noise off. Turn marker noise on. Return parameter 0 Marker noise is off.
Page 88: Calculate:marker:Peak:ctrack:state
GSP-930 User Manual MIMimum Lowest peak value NEXT Next peak RIGHt Next peak right LEFT Next peak left Example :CALC:MARK1:PEAK NEXT :CALCulate:MARKer<n>:PEAK:CTRack: S et STATe Query Description Sets or queries the state of the Peak Track function. Syntax :CALCulate:MARKer<n>:PEAK:CTRack:STATe {ON|OFF|1|0} Query Syntax :CALCulate:MARKer<n>:PEAK:CTRack:STATe?
Page 89: Calculate:marker:peak:sort:type
エラー! スタイルが定義されていません。 Description Sets or queries the peak excursion value. Syntax :CALCulate:MARKer<n>:PEAK:EXCursion <rel ampl> Query Syntax :CALCulate:MARKer<n>:PEAK:EXCursion? Parameter <n> Marker number 1~6 <rel ampl> Peak excursion dB (offset from threshold) Return parameter <NR3> Peak excursion in dB. Example :CALC:MARK1:PEAK:EXC 6 db S et Query :CALCulate:MARKer:PEAK:SORT:TYPE...
Page 90: Calculate:marker:peak:threshold
GSP-930 User Manual Example :CALC:MARK:PEAK:TABL:STAT ON S et Query :CALCulate:MARKer:PEAK:THReshold Description Sets or queries the peak threshold value. Syntax :CALCulate:MARKer:PEAK:THReshold < ampl> Query Syntax :CALCulate:MARKer:PEAK:THReshold? Parameter < ampl> Peak Threshold level in mV/dBm Return parameter <NR3> Peak threshold. Note: the unit returned depends on the currently set vertical units.
Page 91: Calculate:marker:State
エラー! スタイルが定義されていません。 Query Syntax :CALCulate:MARKer<n>:SET {CENTer|STARt|STOP |STEP|RLEVel} Parameter <n> <NR1> Marker number 1~6 CENTer Set to center frequency STARt Set to start frequency STOP Set to stop frequency STEP Set to CF STEP frequency RLEVel Set to the Reference level Example :CALC:MARK1:SET CENT S et...
Page 92: Calculate:marker:Trace
GSP-930 User Manual Turn the table on. Return parameter 0 The table is off. The table is on. Example :CALC:MARK:TABL:STAT ON S et :CALCulate:MARKer<n>:TRACe Query Description Assigns a trace to the selected marker. Queries which trace is assigned to the selected marker.
Page 93: Calculate:marker:Type
エラー! スタイルが定義されていません。 S et :CALCulate:MARKer<n>:TYPE Query Description Sets or queries the marker type. Syntax :CALCulate:MARKer<n>:TYPE {NORMal|DELTa} Query Syntax :CALCulate:MARKer<n>:TYPE? Parameter/ <n> <NR1> Marker number 1~6 Return parameter <NORMal> Normal marker <DELTa> Delta marker Example :CALC:MARK1:TYPE NORM S et Query :CALCulate:MARKer<n>:X Description Sets or returns the marker position in Hz.
Page 94: Calculate:math:pdif
GSP-930 User Manual :CALCulate:MATH:PDIF S et Description Calculates the power difference between two traces (TR1 and TR2). Query Syntax :CALCulate:MATH:PDIF <Destination trace, TR1 trace,TR2 trace> Parameter <des. <NR1> Destination trace. trace> <TR1> Source trace 1 <TR2> Source trace 2 Example...
Page 95: Calculate:ndb:state
エラー! スタイルが定義されていません。 Parameter <des. <NR1>Destination trace. trace> <TR1> <NR1>Source trace 1 <offset> <NR1>Offset in dB Example :CALC:MATH:LOFF 1,2,2.0e+1 S et :CALCulate:NDB:STATe Query Description Sets or queries the state of the NdB BW function. Syntax :CALCulate:NDB:STATe {ON|OFF|1|0} Query Syntax :CALCulate:NDB:STATe? Parameter Turn NdB BW off.
Page 96: Calculate:ocbw:state
GSP-930 User Manual Query Syntax :CALCulate:NORMalize:STATe? Parameter Turn normalization off. Turn normalization on. Turn normalization off. Turn normalization on. Return parameter 0 normalization is off. normalization is on. Example :CALC:NORM:STAT ON S et :CALCulate:OCBW:STATe Query Description Turns the OCBW measurement on/off.
Page 97: Calculate:ocbw:power
エラー! スタイルが定義されていません。 Description Returns the OCBW channel power measurement. Query Syntax :CALCulate:OCBW:CHPower? Return parameter <NR3> OCBW channel power in dBm. Example :CALC:OCBW:CHP? >9.13e+01 :CALCulate:OCBW:POWer? Query Description Returns the OCBW total power measurement. Query Syntax :CALCulate:OCBW:POWer? Return parameter <NR3> OCBW total power in dBm. Example :CALC:OCBW:POW? >1.33e+01...
Page 98: Calculate:pmeter:limit:fail
GSP-930 User Manual Return parameter 0 Turns limits off. Turns limits on. Example :CALC:PMET:LIM:STAT? >1 :CALCulate:PMETer:LIMit:FAIL? Query Description Returns the pass/fail judgment. Query Syntax :CALCulate:PMETer:LIMit:FAIL? Return parameter 0 Pass, or limits are not on. Fail Example :CALC:PMET:LIM:FAIL? >1 S et...
Page 99: Calculate:toi:differential
エラー! スタイルが定義されていません。 Parameter <n> Offset number 1~5. Return parameter <start freq> Start frequency of the selected channel <low dBm> Lower dBm measurement <low p/f> Lower pass/fail limit judgment. 0 = pass, 1 = fail. <stop freq> Stop frequency of the selected channel <upp dBm>...
Page 100: Calculate:toi:result
GSP-930 User Manual Description Turns the TOI pass/fail limit on/off. Syntax :CALCulate:TOI:LIMit:STATe {ON|OFF|1|0} Query Syntax :CALCulate:TOI:LIMit:STATe? Parameter Turns pass/fail limit off. Turns pass/fail limit on. Turns pass/fail limit off. Turns pass/fail limit on. Return parameter 0 Turns pass/fail limit off.
Page 101 エラー! スタイルが定義されていません。 Turns TOI measurement off. Turns TOI measurement on. Return parameter 0 TOI measurement is off. TOI measurement is on. Example :CALC:TOI:STAT ON CONFigure Commands :CONFigure:MODE ..............97 S et :CONFigure:MODE Query Description Sets or queries the operating mode, spectrum or power meter.
Page 102: Display:brightness
GSP-930 User Manual [:SCALe]:RPOSition.............. 101 :DISPlay:DEMod[:WINDow]:TRACe:Y[:SCALe]:RVALue10 :DISPlay[:WINDow]:NORMal..........102 :DISPlay[:WINDow]:SPECtrogram........102 :DISPlay[:WINDow]:SPLit:NORMal ........103 :DISPlay[:WINDow]:SPLit:NORMal:ALTernate.... 103 :DISPlay[:WINDow]:SPLit:NORMal:TYPE...... 103 :DISPlay[:WINDow]:SPLit:SPECtrogram ....... 103 :DISPlay[:WINDow]:SPLit:TOPO ........104 :DISPlay[:WINDow]:SPLit:TOPO ........104 :DISPlay[:WINDow]:TRACe<n>:MODE ......104 :DISPlay[:WINDow]:TRACe:Y:DLINe ....... 104 :DISPlay[:WINDow]:TRACe:Y:DLINe:STATe....105 :DISPlay[:WINDow]:TRACe:Y[:SCALe]:NRLevel ..105 :DISPlay[:WINDow]:TRACe:Y[:SCALe]:NRPosition .. 106 :DISPlay[:WINDow]:TRACe:Y[:SCALe]:PDIVision ..
Page 103: Display:demod[:Window]:Trace:x[:Scale]:Auto
エラー! スタイルが定義されていません。 Description Turns the LCD backlight on/off. Syntax :DISPlay:ENABle {OFF|ON|0|1} Query Syntax :DISPlay:ENABle? Parameter Turn LCD backlight off. Turn LCD backlight on. Turn LCD backlight off. Turn LCD backlight on. Return parameter 0 LCD backlight is off. LCD backlight is on. Example DISP:ENAB? >1...
Page 104: Display:demod[:Window]:Trace:x [:Scale]:Rposition
GSP-930 User Manual Syntax :DISPlay:DEMod[:WINDow]:TRACe:X[:SCALe]: PDIVision <time> Query Syntax :DISPlay:DEMod[:WINDow]:TRACe:X[:SCALe]: PDIVision? Parameter/ <time> <NR3>Time division. Default = seconds Return parameter Example :DISP:DEM:TRAC:X:PDIV 2 ms :DISPlay:DEMod[:WINDow]:TRACe:X S et Query [:SCALe]:RPOSition Description Sets or queries the Reference Position of the trace for AM/FM demodulation (x-axis grid division).
Page 105: Display:demod[:Window]:Trace:y[:Scale]:Auto101
エラー! スタイルが定義されていません。 Parameter/ <time> <NRf> Return parameter Example :DISP:DEM:TRAC:X:RVAL 2 ms :DISPlay:DEMod[:WINDow]:TRACe:Y[: S et SCALe]:AUTO Description Sets the vertical display scale to auto for AM/FM demodulation. Syntax :DISPlay:DEMod[:WINDow]:TRACe:Y[:SCALe]: AUTO <integer> Example :DISP:DEM:TRAC:Y:AUTO :DISPlay:DEMod[:WINDow]:TRACe:Y S et [:SCALe]:PDIVision Query Description Sets or queries the Y-axis scale division. Syntax :DISPlay:DEMod[:WINDow]:TRACe:Y[:SCALe]: PDIVision <integer>...
Page 106: Display:demod[:Window]:Trace:y[:Scale]:Rvalue10
GSP-930 User Manual Syntax :DISPlay:DEMod[:WINDow]:TRACe:Y[:SCALe]: RPOSition <integer> Query Syntax :DISPlay:DEMod[:WINDow]:TRACe:Y[:SCALe]: RPOSition? Parameter/ <integer> <NR1>1~10 Return parameter Example :DISP:DEM:TRAC:Y:RPOS 2 :DISPlay:DEMod[:WINDow]:TRACe:Y S et Query [:SCALe]:RVALue Description Sets or queries the Reference value (AM: %, FM: Hz). Syntax :DISPlay:DEMod[:WINDow]:TRACe:Y[:SCALe]: RVALue <integer> Query Syntax...
Page 107: Display[:Window]:Split:normal
エラー! スタイルが定義されていません。 Syntax :DISPlay[:WINDow]:SPECtrogram Example :DISP:SPEC :DISPlay[:WINDow]:SPLit:NORMal S et Description Creates two split windows, both in spectrum mode. Syntax :DISPlay[:WINDow]:SPLit:NORMal Example :DISP:SPL:NORM :DISPlay[:WINDow]:SPLit:NORMal: S et ALTernate Description Turns on Alternate Sweep function for split window mode. Syntax :DISPlay[:WINDow]:SPLit:NORMal:ALTernate Example :DISP:SPL:NORM:ALT :DISPlay[:WINDow]:SPLit:NORMal:TYPE S et Description...
Page 108: Display[:Window]:Split:topo
GSP-930 User Manual :DISPlay[:WINDow]:SPLit:TOPO S et Description Sets the split screen mode to Topographic + Spectrum. Syntax :DISPlay[:WINDow]:SPLit:TOPO Example :DISP:SPL:TOPO :DISPlay[:WINDow]:TOPO S et Description Sets the display window to topographic. Syntax :DISPlay[:WINDow]:TOPO Example :DISP:TOPO :DISPlay[:WINDow]:TRACe<n>:MODE S et Description Sets or queries the marker type.
Page 109: Display[:Window]:Trace:y:dline:state
エラー! スタイルが定義されていません。 Query Syntax :DISPlay[:WINDow]:TRACe:Y:DLINe? Parameter/ <ampl> <NR3> dBm Return parameter Example :DISP:TRAC:Y:DLIN -5.0e+1 S et :DISPlay[:WINDow]:TRACe:Y:DLINe:STATe Query Description Turns the display line on/off. Syntax :DISPlay[:WINDow]:TRACe:Y:DLINe:STATe {OFF|ON|0|1} Query Syntax :DISPlay[:WINDow]:TRACe:Y:DLINe:STATe? Parameter Turn display line off. Turn display line on. Turn display line off. Turn display line on.
Page 110: Display[:Window]:Trace:y[:Scale]:Nrposition
GSP-930 User Manual :DISPlay[:WINDow]:TRACe:Y[:SCALe]: S et NRPosition Query Description Sets the position of the normalized reference level. The 0~10 Y-axis grid divisions correspond to the bottom~top grid divisions. Syntax :DISPlay[:WINDow]:TRACe:Y[:SCALe]:NRPosition <integer> Query Syntax :DISPlay[:WINDow]:TRACe:Y[:SCALe]:NRPosition? Parameter/ <integer> <NR1> 0~10 Return parameter...
Page 111: Display[:Window]:Trace:y[:Scale]:Rlevel
エラー! スタイルが定義されていません。 Syntax :DISPlay[:WINDow]:TRACe:Y[:SCALe]:POSition {LEFT|CENTer|RIGHt} Query Syntax :DISPlay[:WINDow]:TRACe:Y[:SCALe]:POSition? Parameter/ LEFT Position the scale to left Return parameter CENTer Position the scale to the center RIGHt Position the scale to right Example :DISP:TRAC:Y:POS LEFT :DISPlay[:WINDow]:TRACe:Y[:SCALe]: S et Query RLEVel Description Sets or queries the Y-axis reference level. The units depend on the scale type (logarithmic/linear).
Page 112: Display[:Window]:Trace:y[:Scale]:Spacing
GSP-930 User Manual :DISPlay[:WINDow]:TRACe:Y[:SCALe]: S et SPACing Query Description Sets or queries the type of scale: logarithmic or linear. Syntax :DISPlay[:WINDow]:TRACe:Y[:SCALe]:SPACing {LINear|LOGarithmic} Query Syntax :DISPlay[:WINDow]:TRACe:Y[:SCALe]:SPACing? Parameter/ LINear Linear scale Return parameter LOGarithmic Logarithmic scale Example :DISP:TRAC:Y:SPAC LOG :DISPlay[:WINDow]:TRACe:Y[:SCALe]: S et...
Page 113 エラー! スタイルが定義されていません。 S et :FORMat:TRACe:DATA Query Description Sets or queries data format used to save trace data. Syntax :FORMat:TRACe:DATA {ASC|BINary|HEXadecimal|INTeger|OCTal|REAL} Query Syntax :FORMat:TRACe:DATA? Parameter/ ASCII??? Return parameter BINary Binary HEXadecimal Hexadecimal INTeger Integer OCTal Octal REAL Real number data Example :FORM:TRAC:DATA ASC...
Page 114 GSP-930 User Manual INITiate Commands :INITiate:CONTinuous............110 :INITiate[:IMMediate] ............110 S et Query :INITiate:CONTinuous Description Set the trigger to continuous or single. ON=continuous, OFF=single trigger. When set to OFF the trigger is initiated with the “:INITiate[:IMMediate]” command. Syntax :INITiate:CONTinuous {OFF|ON|0|1}...
Page 115: Input Commands :Input:attenuation
エラー! スタイルが定義されていません。 INPut Commands :INPut:ATTenuation ...............111 :INPut:ATTenuation:AUTO..........111 :INPut:IMPedance..............112 :INPut:OFFSet .................112 S et Query :INPut:ATTenuation Description Sets or queries the input attenuation. Syntax :INPut:ATTenuation <rel_ampl> Query Syntax :INPut:ATTenuation? Parameter/ <rel_ampl> <NR3> dB Return parameter Example :INP:ATT 10 dB S et :INPut:ATTenuation:AUTO Query Description Sets or queries whether the automatic input...
Page 116: Input:impedance
GSP-930 User Manual S et :INPut:IMPedance Query Description Sets or the input impedance in Ω. Syntax :INPut:IMPedance {50|75} Query Syntax :INPut:IMPedance? Parameter/ <NR1> Return parameter 75 <NR1> Example :INP:IMP 75 S et Query :INPut:OFFSet Description Sets or queries the input offset (Input Z Calibration).
Page 117: Mmemory:catalog
エラー! スタイルが定義されていません。 MMEMory Commands :MMEMory:CATalog? .............113 :MMEMory:CDIRectory............113 :MMEMory:COPY ..............114 :MMEMory:DELete ..............114 :MMEMory:DESTination ............114 :MMEMory:LOAD:CORRection..........115 :MMEMory:LOAD:LIMit ............115 :MMEMory:LOAD:PMET............115 :MMEMory:LOAD:SEQuence..........115 :MMEMory:LOAD:STATe .............116 :MMEMory:LOAD:TRACe.............116 :MMEMory:MOVE..............116 :MMEMory:REName ...............117 :MMEMory:STORe:CORRection ........117 :MMEMory:STORe:LIMit............117 :MMEMory:STORe:PMET.............117 :MMEMory:STORe:SCReen ..........118 :MMEMory:STORe:SEQuence ...........118 :MMEMory:STORe:STATe...........118 :MMEMory:STORe:TRACe ..........119 Query :MMEMory:CATalog? Description Returns a list of all the files that have been saved to the local memory.
Page 118: Mmemory:copy
GSP-930 User Manual Syntax :MMEMory:CDIRectory {LOCAL|USB|SD} Parameter LOCAL Example :MMEM:CD LOCAL S et :MMEMory:COPY Description Copies a designated file from the current file directory to the destination directory. The file can be renamed after it is copied. Syntax :MMEMory:COPY <src_file_name>,<dest_file_name>...
Page 119: Mmemory:load:correction
エラー! スタイルが定義されていません。 :MMEMory:LOAD:CORRection S et Description Loads correction data from a file to the internal memory. Syntax :MMEMory:LOAD:CORRection <corr num>, <dest_file_name> Parameter <corr num> <NR1> correction set 1~5 <dest_file_name> XXX.cor Example :MMEM:LOAD:CORR 2,test.corr S et :MMEMory:LOAD:LIMit Description Loads limit line data from a file to the internal memory.
Page 120: Mmemory:load:state
GSP-930 User Manual Syntax :MMEMory:LOAD:SEQuence <seq num>, <dest_file_name> Parameter <seq num> <NR1>sequence number 1~5 <dest_file_name> XXX.seq Example :MMEM:LOAD:SEQ 2,test.seq S et :MMEMory:LOAD:STATe Description Loads the instrument state from a file to the internal memory. Syntax :MMEMory:LOAD:STATe <dest_file_name> Parameter <dest_file_name> XXX.stat Example :MMEM:LOAD:STAT test.stat...
Page 121: Mmemory:rename
エラー! スタイルが定義されていません。 Example :MMEM:MOVE quick1.jpg, quick2.jpg :MMEMory:REName S et Description Renames the designated file from the current file. Syntax :MMEMory:REName <old_file_name>,<new_file_name> Parameter <old_file_name> <new_file_name> Example :MMEM:REN quick1.jpg, quick2.jpg :MMEMory:STORe:CORRection S et Description Store correction data to a file from the internal memory.
Page 122: Mmemory:store:screen
GSP-930 User Manual Description Store power meter data to a file from the internal memory. Syntax :MMEMory:STORe:PMET <dest_file_name> Parameter <dest_file_name> XXX.pmet Example :MMEMory:STOR:PMET test.pmet :MMEMory:STORe:SCReen S et Description Store a screen-shot to the current file directory. Syntax :MMEMory:STORe:SCReen <new_dest_file_name> Parameter <new_dest_file_name>...
Page 123: Mmemory:store:trace
エラー! スタイルが定義されていません。 :MMEMory:STORe:TRACe S et Description Store trace data to a file from the internal memory. Syntax :MMEMory:STORe:TRACe <trace name>, <new_dest_file_name> Parameter <trace name> <NR1> 1~4 <new_dest_file_name> XXX.tra Example :MMEM:STORe:TRAC 2,test.tra OUTPut Commands :OUTPut[:STATe]..............119 S et Query :OUTPut[:STATe] Description Turns the tracking generator output on/off. Syntax :OUTPut[:STATe] {OFF|ON|0|1} Query Syntax...
Page 124: Commands
GSP-930 User Manual SENSe Commands [:SENSe]:ACPR:ACHannel<n>:BANDwidth|BWIDth . 123 [:SENSe]:ACPR:ACHannel<n>:HLIMit......123 [:SENSe]:ACPR:ACHannel<n>:LLIMit ......124 [:SENSe]:ACPR:ACHannel<n>:OFFSet ......124 [:SENSe]:ACPR:BANDwidth|BWIDth......124 [:SENSe]:ACPR:HLIMit ............125 [:SENSe]:ACPR:LLIMit............125 [:SENSe]:ACPR:HELP ............125 [:SENSe]:ACPR:SPACe............126 [:SENSe]:ASET:AMPLitude..........126 [:SENSe]:ASET:AMPLitude:AUTO ........126 [:SENSe]:ASET:RUN ............. 127 [:SENSe]:ASET:SPAN ............127 [:SENSe]:ASET:SPAN:AUTO..........127 [:SENSe]:AVERage:COUNt ..........
Page 125 エラー! スタイルが定義されていません。 [:SENSe]:DETector[:FUNCtion]........135 [:SENSe]:DETector[:FUNCtion]:AUTO......135 [:SENSe]:EMIFilter:STATe..........136 [:SENSe]:EMIFilter:BANDwidth|BWIDth[:RESolution]136 [:SENSe]:FREQuency:CENter ...........137 [:SENSe]:FREQuency:CENter:STEP.......137 [:SENSe]:FREQuency:CENter:STEP:AUTO....137 [:SENSe]:FREQuency:OFFSet ..........138 [:SENSe]:FREQuency:SPAN..........138 [:SENSe]:FREQuency:SPAN:FULL........138 [:SENSe]:FREQuency:SPAN:PREVious......138 [:SENSe]:FREQuency:STARt ..........139 [:SENSe]:FREQuency:STOP..........139 [:SENSe]:LIMit<n>:DELete..........139 [:SENSe]:JITTer:OFFSet:STARt........140 [:SENSe]:JITTer:OFFSet:STOP ........140 [:SENSe]:NDB:BANDwidth|BWIDth .........140 [:SENSe]:OCBW:BANDwidth|BWIDth ......140 [:SENSe]:OCBW:PERCent ..........141 [:SENSe]:OCBW:SPACe ............141 [:SENSe]:OCBW:SPAN............141 [:SENSe]:PMETer:FREQuency..........142 [:SENSe]:PMETer:HLIMit.............142 [:SENSe]:PMETer:HOLD:STATe ........142 [:SENSe]:PMETer:LLIMit.............143 [:SENSe]:PMETer:PSENsor:MODE .........143 [:SENSe]:PMETer:RECording:TIME.........143 [:SENSe]:PMETer:RECording:TIME:STEP ....144 [:SENSe]:POWer[:RF]:GAIN ..........144 [:SENSe]:SEMask:BANDwidth|BWIDth:INTegration..144 [:SENSe]:SEMask:BANDwidth|BWIDth[:RESolution]145...
Page 126 GSP-930 User Manual [:SENSe]:SEMask:HELP:STATe........148 [:SENSe]:SEMask:NWLan:CHANnel: BANDwidth|BWIDth............... 148 [:SENSe]:SEMask:OFFSet<n>:ADDition: BANDwidth|BWIDth[:RESolution]?........148 [:SENSe]:SEMask:OFFSet<n>:ADDition: FREQuency:STARt?.............. 149 [:SENSe]:SEMask:OFFSet<n>:ADDition: FREQuency:STOP?............... 149 [:SENSe]:SEMask:OFFSet<n>:ADDition: STARt:ABSolute? ..............150 [:SENSe]:SEMask:OFFSet<n>:ADDition:STARt: RELative? .................. 150 [:SENSe]:SEMask:OFFSet<n>:ADDition:STATe?..150 [:SENSe]:SEMask:OFFSet<n>:ADDition: STOP:ABSolute?..............151 [:SENSe]:SEMask:OFFSet<n>:ADDition:STOP: RELative? .................. 151 [:SENSe]:SEMask:OFFSet<n>:BANDwidth| BWIDth[:RESolution]............. 152 [:SENSe]:SEMask:OFFSet<n>:BANDwidth|BWIDth[:RE Solution]:AUTO............... 152 [:SENSe]:SEMask:OFFSet<n>:FREQuency:STARt...
Page 127: [:Sense]:Acpr:achannel:Bandwidth|Bwidth
エラー! スタイルが定義されていません。 [:SENSe]:SEMask:W3GPP:FDD:TRANsmit:MODE..159 [:SENSe]:SEMask:W3GPP:TDD:CHIP:RATE....159 [:SENSe]:SEMask:W3GPP:TDD:MOPower....160 [:SENSe]:SEMask:W3GPP:TDD:TRANsmit:MODE..160 [:SENSe]:SEMask:WIMax:CHANnel:BANDwidth|BWIDth1 [:SENSe]:SEQuence<n>:DELete ........161 [:SENSe]:SWEep:EGATe:DELay ........161 [:SENSe]:SWEep:EGATe:LENGth........161 [:SENSe]:SWEep:EGATe:STATe ........162 [:SENSe]:SWEep:TIME............162 [:SENSe]:SWEep:TIME:AUTO ..........162 [:SENSe]:TOI:REFerence ............163 [:SENSe]:TOI:LIMit..............163 [:SENSe]:ACPR:ACHannel<n>:BANDwidth|B S et WIDth Query Description Sets or queries the adjacent channel bandwidth for the selected adjacent channel. Used with ACPR measurement.
Page 128: [:Sense]:Acpr:achannel:Llimit
GSP-930 User Manual Parameter/ <ampl> <NR3> dBm Return parameter Example :ACPR:ACH1:HLIM -3.0e+1 S et Query [:SENSe]:ACPR:ACHannel<n>:LLIMit Description Sets or queries the low limit for the selected adjacent channel. Used with ACPR measurement. Syntax [:SENSe]:ACPR:ACHannel<n>:LLIMit <ampl> Query Syntax [:SENSe]:ACPR:ACHannel<n>:LLIMit? Parameter/ <ampl>...
Page 129: [:Sense]:Acpr:hlimit
エラー! スタイルが定義されていません。 Parameter/ <freq> <NR3> Hz Return parameter Example :ACPR: BAND 2.0e+6 S et Query [:SENSe]:ACPR:HLIMit Description Sets or queries the high limit for the main channel. Used with ACPR measurement. Syntax [:SENSe]:ACPR:HLIMit <ampl> Query Syntax [:SENSe]:ACPR:HLIMit? Parameter/ <ampl> <NR3> Return parameter Example :ACPR: HLIM -3.0e+1...
Page 130: [:Sense]:Acpr:space
GSP-930 User Manual Turn help on. Example :ACPR:HELP ON S et [:SENSe]:ACPR:SPACe Query Description Sets or queries the channel spacing between the main channels. Syntax [:SENSe]:ACPR:SPACe <freq> Query Syntax [:SENSe]:ACPR:SPACe? Parameter/ <freq> <NR3> Hz Return parameter Example :ACPR: SPAC 2.0e+6...
Page 131: [:Sense]:Aset:run
エラー! スタイルが定義されていません。 Return parameter 0 Autoset amplitude floor is in manual. Autoset amplitude floor is in auto. Example :ASET:AMPL:AUTO 1 S et [:SENSe]:ASET:RUN Description Activates the Autoset function. Syntax [:SENSe]:ASET:RUN Example :ASET:RUN S et [:SENSe]:ASET:SPAN Query Description Sets or queries the Autoset span. Syntax [:SENSe]:ASET:SPAN <freq>...
Page 132: [:Sense]:Average:count
GSP-930 User Manual S et [:SENSe]:AVERage:COUNt Query Description Sets the number of traces that are used with the average function. Syntax [:SENSe]:AVERage:COUNt <integer> Query Syntax [:SENSe]:AVERage:COUNt? Parameter/ <integer> <NR1> Return parameter Example :AVER:COUN 20 S et [:SENSe]:AVERage:STATe Query Description Turns the Average function on/off.
Page 133: [:Sense]:Bandwidth|Bwidth[:Resolution]
エラー! スタイルが定義されていません。 Parameter/Retur VOLTage Sets Average to voltage n parameter LOGarithmic Sets Average to logarithmic POWer Sets Average to power Example :AVER:TYPE VOLT S et [:SENSe]:BANDwidth|BWIDth[:RESolution] Query Description Sets the resolution bandwidth (RBW). Syntax [:SENSe]:BANDwidth|BWIDth[:RESolution] <freq> Query Syntax [:SENSe]:BANDwidth|BWIDth[:RESolution]? Parameter/ <freq>...
Page 134: [:Sense]:Bandwidth|Bwidth:video:auto
GSP-930 User Manual Description Sets the video bandwidth (VBW). Syntax [:SENSe]:BANDwidth|BWIDth:VIDeo <freq> Query Syntax [:SENSe]:BANDwidth|BWIDth:VIDeo? Parameter/ <freq> <NR3> Hz Return parameter Example BAND:VID 1.0e+6 S et Query [:SENSe]:BANDwidth|BWIDth:VIDeo:AUTO Description Turns the VBW to auto (on) or manual (off). Syntax [:SENSe]:BANDwidth|BWIDth:VIDeo:AUTO...
Page 135: [:Sense]:Cnr:channel:space
エラー! スタイルが定義されていません。 Description Moves to the next main channel when using measurements that have a channel space setting. Syntax [:SENSe]:CHANnel:SPACe:UP Example :CHAN:SPAC:UP S et [:SENSe]:CNR:CHANnel:SPACe Query Description Sets the channel space bandwidth for CNR measurements. Syntax [:SENSe]:CNR:CHANnel:SPACe <freq> Query Syntax [:SENSe]:CNR:CHANnel:SPACe? Parameter/ <freq>...
Page 136: [:Sense]:Correction:cset:State
GSP-930 User Manual Parameter <freq> <NR3> Hz <offset> <NR3> dB <n> <NR1>correction set number Example CORR:CSET1:DATA 2e+6,30 S et Query [:SENSe]:CORRection:CSET<n>:STATe Description Turns the selected correction set on/off. Syntax [:SENSe]:CORRection:CSET<n>:STATe {OFF|ON|0|1} Query Syntax [:SENSe]:CORRection:CSET<n>:STATe? Parameter Turn turn the selected correction set off.
Page 137: [:Sense]:Ctb:channel:space
エラー! スタイルが定義されていません。 Query Syntax [:SENSe]:CSO:CHANnel:SPACe? Parameter/ <freq> <NR3> Hz Return parameter Example :CSO:CHAN:SPAC 6.0e+6 S et [:SENSe]:CTB:CHANnel:SPACe Query Description Sets the channel space bandwidth for CTB measurements. Syntax [:SENSe]:CTB:CHANnel:SPACe <freq> Query Syntax [:SENSe]:CTB:CHANnel:SPACe? Parameter/ <freq> <NR3> Hz Return parameter Example :CTB:CHAN:SPAC 6.0e+6 [:SENSe]:DEMod:EARPone:TYPE S et...
Page 138: [:Sense]:Demod:earpone:gain
Sets the low pass filter to bypass. Return parameter <n> <NR1>1~5 The filters 1 to 5 are shown in the table below. The GSP-930 will automatically detect the signal frequency. AM/FM Signal Frequency (Hz) Selectable bandwidth of LPF (Hz) <n>=1 <n>=2...
Page 139: [:Sense]:Demod:ifbw
エラー! スタイルが定義されていません。 ≥195 ≥78 ≥39 ≥20 ≥8 Example :DEM:FILT:LPAS B S et [:SENSe]:DEMod:IFBW Query Description Sets or queries the IF bandwidth for the AM/FM Analysis function. Syntax [:SENSe]:DEMod:IFBW <freq> Query Syntax [:SENSe]:DEMod:IFBW? Parameter/ <freq> <NR3>Hz. Return parameter Example DEM:IFBW 3.0e+5 S et [:SENSe]:DETector[:FUNCtion] Query...
Page 140: [:Sense]:Emifilter:state
GSP-930 User Manual Description Turns the trace detection mode to auto (on) or manual (off). Syntax [:SENSe]:DETector[:FUNCtion]:AUTO {OFF|ON|0|1} Query Syntax [:SENSe]:DETector[:FUNCtion]:AUTO? Parameter Turn the detection mode to manual (off). Turn the detection mode to auto (on). Turn the detection mode to manual (off).
Page 141: [:Sense]:Frequency:center
エラー! スタイルが定義されていません。 Parameter <freq> <NR3>Hz {200Hz, 9kHz, 120kHz} Example :EMIF:BAND 2.0e+2 S et [:SENSe]:FREQuency:CENTer Query Description Sets the center frequency. Syntax [:SENSe]:FREQuency:CENTer <freq> Query Syntax [:SENSe]:FREQuency:CENTer? Parameter/ <freq> <NR3>Hz Return parameter Example :FREQ:CENT 1.0e+9 S et Query [:SENSe]:FREQuency:CENTer:STEP Description Sets the CF Step frequency. Syntax [:SENSe]:FREQuency:CENTer:STEP <freq>...
Page 142: [:Sense]:Frequency:offset
GSP-930 User Manual Turn CF Step to auto (on). Return parameter CF Step is set to manual. CF Step is set to automatic. Example :FREQ:CENT:STEP:AUTO OFF S et [:SENSe]:FREQuency:OFFSet Query Description Sets the frequency offset settings. Syntax [:SENSe]:FREQuency:OFFSet <freq> Query Syntax...
Page 143: [:Sense]:Frequency:start
エラー! スタイルが定義されていません。 Description Set the span to the previous span setting. Syntax [:SENSe]:FREQuency:SPAN:PREVious Example :FREQ:SPAN:PREV S et [:SENSe]:FREQuency:STARt Query Description Sets the start frequency. Syntax [:SENSe]:FREQuency:STARt <freq> Query Syntax [:SENSe]:FREQuency:STARt? Parameter/ <freq> <NR3>Hz Return parameter Example FREQ:STAR 0 S et Query [:SENSe]:FREQuency:STOP Description...
Page 144: [:Sense]:Jitter:offset:start
GSP-930 User Manual S et [:SENSe]:JITTer:OFFSet:STARt Query Description Sets the start offset for phase jitter measurements. Syntax [:SENSe]:JITTer:OFFSet:STARt <freq> Query Syntax [:SENSe]:JITTer:OFFSet:STARt? Parameter/ <freq> <NR3>Hz Return parameter Example JITT:OFFS:STAR 1.0e+7 S et Query [:SENSe]:JITTer:OFFSet:STOP Description Sets the stop offset for phase jitter measurements.
Page 145: [:Sense]:Ocbw:percent
エラー! スタイルが定義されていません。 Description Sets the OCBW bandwidth for OCBW measurements. Syntax [:SENSe]:OCBW:BANDwidth|BWIDth <freq> Query Syntax [:SENSe]:OCBW:BANDwidth|BWIDth? Parameter/ <freq> <NR3>Hz Return parameter Example :OCBW:BAND 4.5+6 S et Query [:SENSe]:OCBW:PERCent Description Sets or queries the OCBW percentage (OCBW %) parameter. Syntax [:SENSe]:OCBW:PERCent <integer> Query Syntax [:SENSe]:OCBW:PERCent? Parameter/...
Page 146: [:Sense]:Pmeter:frequency
GSP-930 User Manual Query Syntax [:SENSe]:OCBW:SPAN? Parameter/ <freq> <NR3>Hz Return parameter Example :OCBW:SPAN 1e+7 S et [:SENSe]:PMETer:FREQuency Query Description Sets the power meter measurement frequency. Syntax [:SENSe]:PMETer:FREQuency <freq> Query Syntax [:SENSe]:PMETer:FREQuency? Parameter/ <freq> <NR3>Hz Return parameter Example :PMET:FREQ 2e+7 S et...
Page 147: [:Sense]:Pmeter:llimit
エラー! スタイルが定義されていません。 Turn the Max/Min Hold function on. Return parameter The Max/Min Hold function is off. The Max/Min Hold function is on. Example :PEMT:HOLD:STAT 0 S et [:SENSe]:PMETer:LLIMit Query Description Sets the power meter low limit for pass/fail tests. Syntax [:SENSe]:PMETer:LLIMit <ampl>...
Page 148: [:Sense]:Pmeter:recording:time:step
GSP-930 User Manual Parameter/ <hour> <NR1>Recording time: hours. Return parameter <minute> <NR1>Recording time: minutes. <second> <NR1>Recording time: seconds. Example :PMET:REC:TIME 1,10,30 S et [:SENSe]:PMETer:RECording:TIME:STEP Query Description Sets or queries the power meter recording interval in seconds. Syntax [:SENSe]:PMETer:RECording:TIME:STEP <time> Query Syntax...
Page 149: [:Sense]:Semask:bandwidth|Bwidth[:Resolution]145
エラー! スタイルが定義されていません。 Query Syntax [:SENSe]:SEMask:BANDwidth|BWIDth:INTegration? Parameter/ <freq> <NR3>Hz Return parameter Example :SEM:BAND:INT 3.84e+6 [:SENSe]:SEMask:BANDwidth|BWIDth S et [:RESolution] Query Description Sets the RBW for SEM measurements. Syntax [:SENSe]:SEMask:BANDwidth|BWIDth[:RESolution] <freq> Query Syntax [:SENSe]:SEMask:BANDwidth|BWIDth[:RESolution]? Parameter/ <freq> <NR3>Hz Return parameter Example :SEM:BAND 2.2e+4 [:SENSe]:SEMask:BANDwidth|BWIDth[:RES S et olution]:AUTO Query...
Page 150: [:Sense]:Semask:carrier:auto
GSP-930 User Manual Example :SEM:BAND: AUTO OFF S et Query [:SENSe]:SEMask:CARRier:AUTO Description Turns the PSDRef or TotalPwrRef modes to auto (on) or manual (off) for SEM measurements. Syntax [:SENSe]:SEMask:CARRier:AUTO {OFF|ON|0|1} Query Syntax [:SENSe]:SEMask:CARRier:AUTO? Parameter Turn PSDRef/TotalPwrRef to manual (off). Turn PSDRef/TotalPwrRef to auto (on).
Page 151: [:Sense]:Semask:carrier: Power
エラー! スタイルが定義されていません。 S et [:SENSe]:SEMask:CARRier: POWer Query Description Sets the TotalPwrRef amplitude for SEM measurements. Syntax [:SENSe]:SEMask:CARRier: POWer <ampl> Query Syntax [:SENSe]:SEMask:CARRier: POWer? Parameter/ <ampl> <NR3> Return parameter Example :SEM:CARR:POW 2 dbm S et [:SENSe]:SEMask:FREQuency:SPAN Query Description Sets the channel span for SEM measurements (user- defined only).
Page 152: [:Sense]:Semask:help:state
GSP-930 User Manual S et [:SENSe]:SEMask:HELP:STATe Query Description Turns the on-screen help window on/off. Syntax [:SENSe]:SEMask:HELP:STATe {OFF|ON|0|1} Query Syntax [:SENSe]:SEMask:HELP:STATe? Parameter Turns the help window off. Turns the help window on. Turns the help window off. Turns the help window on.
Page 153: [:Sense]:Semask:offset:Addition: Frequency:start
エラー! スタイルが定義されていません。 Query syntax [:SENSe]:SEMask:OFFSet<n>:ADDition: BANDwidth|BWIDth[:RESolution]? Parameter/ <n> Offset 1 to 5 Return parameter <NR3> RBW in Hz Example :SEM:OFFS1:ADD:BAND? >XXXXXXXXXXXx [:SENSe]:SEMask:OFFSet<n>:ADDition: Query FREQuency:STARt? Description Returns the start frequency of the selected offset for the additional requirements of the selected 3GPP SEM test.
Page 154: [:Sense]:Semask:offset:Addition: Start:absolute
GSP-930 User Manual [:SENSe]:SEMask:OFFSet<n>:ADDition: STARt:ABSolute? Query Description Returns the “start” amplitude (dBm) of the Absolute Mask for the selected offset for the additional requirements of the selected 3GPP SEM test. Query syntax [:SENSe]:SEMask:OFFSet<n>:ADDition:STARt: ABSolute? Parameter/ <n> Offset 1 to 5 Return parameter <NR3>...
Page 155: [:Sense]:Semask:offset:Addition: Stop:absolute
エラー! スタイルが定義されていません。 Syntax [:SENSe]:SEMask:OFFSet<n>:ADDition:STATe? Return parameter Mask is off. Mask is on. Example :SEM:OFF1:ADD:STAT? >0 [:SENSe]:SEMask:OFFSet<n>:ADDition: Query STOP:ABSolute? Description Returns the “Stop” amplitude (dBm) of the Absolute Mask for the selected offset for the additional requirements of the selected 3GPP SEM test. Query syntax [:SENSe]:SEMask:OFFSet<n>:ADDition:STOP: ABSolute?
Page 156: [:Sense]:Semask:offset:Bandwidth| Bwidth[:Resolution]
GSP-930 User Manual [:SENSe]:SEMask:OFFSet<n>:BANDwidth| S et BWIDth[:RESolution] Query Description Sets or queries the resolution bandwidth of the selected offset. Syntax [:SENSe]:SEMask:OFFSet<n>:BANDwidth|BWIDth [:RESolution] <freq> Query Syntax [:SENSe]:SEMask:OFFSet<n>:BANDwidth|BWIDth [:RESolution]? Parameter/ <freq> <NR3> Hz Return parameter <n> <NR1>offset 1~5 Example SEM:OFFS1:BAND 3.0e+3 [:SENSe]:SEMask:OFFSet<n>:BANDwidth|B...
Page 157: [:Sense]:Semask:offset:Frequency:start
エラー! スタイルが定義されていません。 [:SENSe]:SEMask:OFFSet<n>:FREQuency: S et STARt Query Description Sets or queries the start frequency of the selected offset. Syntax [:SENSe]:SEMask:OFFSet<n>:FREQuency:STARt <freq> Query Syntax [:SENSe]:SEMask:OFFSet<n>:FREQuency:STARt? Parameter/ <freq> <NR3> Hz Return parameter <n> <NR1>offset 1~5 Example SEM:OFFS1:FREQ:STAR 2.5e+3 [:SENSe]:SEMask:OFFSet<n>:FREQuency: S et Query STOP Description Sets or queries the stop frequency of the selected...
Page 158: [:Sense]:Semask:offset:Start:relative
GSP-930 User Manual Parameter/ <ampl> <NR3> dBm Return parameter <n> <NR1>offset 1~5 Example SEM:OFFS1:STAR:ABS 1.5e+1 [:SENSe]:SEMask:OFFSet<n>:STARt: S et Query RELative Description Sets or queries the amplitude of the start frequency of the Relative Mask for the selected offset. Syntax [:SENSe]:SEMask:OFFSet<n>:STARt:RELative <ampl>...
Page 159: [:Sense]:Semask:offset:Stop:absolute:couple1
エラー! スタイルが定義されていません。 Description Sets or queries the amplitude of the stop frequency of the Absolute Mask for the selected offset. Syntax [:SENSe]:SEMask:OFFSet<n>:STOP:ABSolute <ampl> Query Syntax [:SENSe]:SEMask:OFFSet<n>:STOP:ABSolute? Parameter/ <ampl> <NR3> dBm Return parameter <n> <NR1>offset 1~5 Example SEM:OFFS1:STOP:ABS 1.5e+1 [:SENSe]:SEMask:OFFSet<n>:STOP: S et ABSolute:COUPle Query Description...
Page 160: [:Sense]:Semask:offset:Stop:relative:couple1
GSP-930 User Manual Query Syntax [:SENSe]:SEMask:OFFSet<n>:STOP:RELative? Parameter/ <ampl> <NR3> dBc Return parameter <n> <NR1>offset 1~5 Example SEM:OFFS1:STOP:REL 1.5e+1 [:SENSe]:SEMask:OFFSet<n>:STOP: S et RELative:COUPle Query Description Couples the Relative Stop amplitude to the Relative Start amplitude for the selected offset. Syntax [:SENSe]:SEMask:OFFSet<n>:STOP:RELative:COUPle...
Page 161: [:Sense]:Semask:select
エラー! スタイルが定義されていません。 S et [:SENSe]:SEMask:SELect Query Description Selects or queries the type of spectrum emission mask. Syntax [:SENSe]:SEMask:SELect {MANual|W3GPP|BWLan|GWLan|NWLan|WIMax} Query Syntax [:SENSe]:SEMask:SELect? Parameter/ MANual User-defined SEM Return parameter W3GPP 3GPP SEM BWLan 802.11b SEM GWLan 802.11g SEM NWLan 802.11n SEM WIMax 802.16 SEM Example...
Page 162: [:Sense]:Semask:w3Gpp:fdd:addition:limit
GSP-930 User Manual Query Syntax [:SENSe]:SEMask:W3GPP:DUPLex:TYPE? Parameter/ Frequency-division duplexing Return parameter TDD Time-division duplexing Example :SEM:W3GPP:DUPL:TYPE FDD [:SENSe]:SEMask:W3GPP:FDD:ADDition: S et Limit Query Description Selects or queries the operating band used for the 3GPP FDD additional requirements. See the user manual for a list of the 3GPP operation bands.
Page 163: [:Sense]:Semask:w3Gpp:fdd:mopower
エラー! スタイルが定義されていません。 S et [:SENSe]:SEMask:W3GPP:FDD:MOPower Query Description Selects or queries Max Out Power for the selected offset. Please see the user manual for a list of the selectable maximum power output levels. Syntax [:SENSe]:SEMask:W3GPP:FDD:MOPower {NONE | LEVel<n>} Query Syntax [:SENSe]:SEMask:W3GPP:FDD:MOPower? Parameter/ NONE Return parameter LEVEL<n>...
Page 164: [:Sense]:Semask:w3Gpp:tdd:mopower
GSP-930 User Manual Parameter/ 3.84e+6 <freq> Return parameter 1.28e+6 <freq> 7.68e+6 <freq> Example :SEM:W3GPP:TDD:CHIP:RATE 3.84e+6 S et [:SENSe]:SEMask:W3GPP:TDD:MOPower Query Description Selects or queries Max Out Power for TDD 3GPP tests. See the user manual for the a list of the power levels.
Page 165: [:Sense]:Sequence:Delete
エラー! スタイルが定義されていません。 Description Selects or queries the 802.16 channel bandwidth (10M or 20M channelization). Syntax [:SENSe]:SEMask:WIMax:CHANnel:BANDwidth|BWIDth {1e+7|2e+7} Query Syntax [:SENSe]:SEMask:WIMax:CHANnel:BANDwidth| BWIDth? Parameter/ 1e+7 <freq> Return parameter 2e+7 <freq> Example :SEM:WIM:CHAN:BAND 1e+7 [:SENSe]:SEQuence<n>:DELete S et Description Deletes the chosen sequence. Syntax [:SENSe]:SEQuence<n>:DELete Parameter <n>...
Page 166: [:Sense]:Sweep:egate:state
GSP-930 User Manual Query Syntax [:SENSe]:SWEep:EGATe:LENgth? Parameter/ <time> Gate length time in seconds Return parameter Example SWE:EGAT:LENG 10 ms S et [:SENSe]:SWEep:EGATe:STATe Query Description Turns the gated sweep mode on/off. Syntax [:SENSe]:SWEep:EGATe:STATe {OFF|ON|0|1} Query Syntax [:SENSe]:SWEep:EGATe:STATe? Parameter Turns gated sweep mode off.
Page 167: [:Sense]:Toi:reference
エラー! スタイルが定義されていません。 Syntax [:SENSe]:SWEep:TIME:AUTO {OFF|ON|0|1} Query Syntax [:SENSe]:SWEep:TIME:AUTO? Parameter Turn sweep time to manual (off). Turn sweep time to auto (on). Turn sweep time to manual (off). Turn sweep time to auto (on). Return parameter Sweep time is set to manual. Sweep time is set to automatic.
Page 168: Sequence:test:active
GSP-930 User Manual :SEQuence:TEST:ACTive............ 164 S et Query :SEQuence:MODE Description Sets the sequence run mode to single or continuous. Syntax :SEQuence:MODE {SINGle|CONTinuous} Query Syntax :SEQuence:MODE? Parameter/ SINGle Single run mode Return parameter CONTinuous Continuous run mode Example :SEQ:MODE SING :SEQuence:TEST:ACTive...
Page 169: Source:power[:Level][:Immediate][:Amplitude]
エラー! スタイルが定義されていません。 :SOURce:POWer[:LEVel][:IMMediate] S et [:AMPLitude] Query Description Sets the tracking generator power level. Syntax :SOURce:POWer[:LEVel][:IMMediate][:AMPLitude] <ampl> Query Syntax :SOURce:POWer[:LEVel][:IMMediate][:AMPLitude]? Parameter/ <ampl> Return parameter Example :SOUR:POW 30 dbm :SOURce:POWer[:LEVel][:IMMediate] S et [:AMPLitude]:OFFSet Query Description Sets the tracking generator offset level. Syntax :SOURce:POWer[:LEVel][:IMMediate][:AMPLitude] :OFFSet <rel_ampl>...
Page 170: Source:power[:Level][:Immediate][:Amplitude]: Step:auto
GSP-930 User Manual Parameter/ <rel_ampl> Return parameter Example :SOUR:POW:STEP .5 db :SOURce:POWer[:LEVel][:IMMediate] S et Query [:AMPLitude]:STEP:AUTO Description Turns the tracking generator step level setting to auto (on) or manual (off). Syntax :SOURce:POWer[:LEVel][:IMMediate][:AMPLitude]: STEP:AUTO {OFF|ON|0|1} Query Syntax :SOURce:POWer[:LEVel][:IMMediate][:AMPLitude]: STEP:AUTO? Parameter Turn TG step level to manual (off).
Page 171 エラー! スタイルが定義されていません。 Description Sets the Power Sweep offset level. Syntax :SOURce:POWer:SWEep <rel_ampl> Query Syntax :SOURce:POWer:SWEep? Parameter/ <rel_ampl> Return parameter Example :SOUR:POW:SWE 10 db...
Page 172: System:alarm:state
GSP-930 User Manual SYSTem Commands :SYSTem:ALARm:STATe ............ 168 :SYSTem:CLOCk<n>:DATE..........169 :SYSTem:CLOCk<n>:MODE..........169 :SYSTem:CLOCk<n>:STATe ..........170 :SYSTem:CLOCk<n>:TIME ..........170 :SYSTem:COMMunicate:GPIB[:SELF]:ADDRess..171 :SYSTem:COMMunicate:LAN:ADDRess......171 :SYSTem:COMMunicate:LAN:MASK....... 171 :SYSTem:COMMunicate:LAN:GATEway ....... 171 :SYSTem:COMMunicate:LAN:CONFigure..... 172 :SYSTem:COMMunicate:LCI..........172 :SYSTem:COMMunicate:SERial[:RECeive]:BAUD..172 :SYSTem:COMMunicate:USB:MODE......172 :SYSTem:DATE............... 173 :SYSTem:ERRor:CLEar ............173 :SYSTem:ERRor[:NEXT]?............
Page 173: System:clock:Date
エラー! スタイルが定義されていません。 Parameter Turn the alarm off. Turn the alarm on. Turn the alarm off. Turn the alarm off. Return parameter The alarm is off. The alarm is on. Example :SYST:ALAR:STAT 1 S et :SYSTem:CLOCk<n>:DATE Query Description Sets the day for the selected wake-up clock. Syntax :SYSTem:CLOCk<n>:DATE [MONday|TUESday|WEDnesday|THURsday|FRIday|...
Page 174: System:clock:State
GSP-930 User Manual Parameter/ <n> Wake-up clock number 1 to 7 Return parameter REPeat Set the wake-up clock to repeat. SINGle Set the wake-up clock to single. Example :SYST:CLOC1:MODE REP S et :SYSTem:CLOCk<n>:STATe Query Description Turns the selected wake-up clock on/off.
Page 175: System:communicate:gpib[:Self]:Address
エラー! スタイルが定義されていません。 :SYSTem:COMMunicate:GPIB[:SELF] :ADDRess S et Description Sets the GPIB address. Syntax :SYSTem:COMMunicate:GPIB[:SELF]:ADDRess <integer> Parameter <integer> 0 to 30 Example :SYST:COMM:GPIB:ADDR 10 S et :SYSTem:COMMunicate:LAN:ADDRess Description Sets the IP address. Syntax :SYSTem:COMMunicate:LAN:ADDRess <ip address> Parameter <ip address> XXX.XXX.XXX.XXX Example :SYST:COMM:LAN:ADDR 172.16.20.20 :SYSTem:COMMunicate:LAN:MASK S et Description...
Page 176: System:communicate:lan:configure
GSP-930 User Manual :SYSTem:COMMunicate:LAN:CONFigure S et Description Configures the LAN to manual or DHCP mode. Syntax :SYSTem:COMMunicate:LAN:CONFigure {DHCP|MANual} Parameter/ DHCP Configure the LAN to DHCP Return parameter MANual Configure the LAN manually Example :SYST:COMM:LAN:CONF DHCP :SYSTem:COMMunicate:LCI S et Description Configures the LAN to manual or DHCP mode.
Page 177: System:date
エラー! スタイルが定義されていません。 Syntax :SYSTem:COMMunicate:USB:MODE {HOST|DEVice} Parameter/ HOST USB host mode Return parameter DEVice USB device mode Example :SYST:COMM:USB:MODE DEV S et :SYSTem:DATE Query Description Sets the system date. Syntax :SYSTem:DATE <year>,<month>,<day> Query Syntax :SYSTem:DATE? Parameter/ <year> <NR1> Return parameter <month> <NR1>...
Page 178: System:preset
Parameter Lock the front panel keys Unlock the front panel keys Example :SYST:KLOCK OFF S et :SYSTem:PRESet Description Returns the GSP-930 to preset settings. Syntax :SYST:PRES S et :SYSTem:PRESet:TYPE Query Description Sets the preset type between user-defined and factory default.
Page 179: System:time
エラー! スタイルが定義されていません。 Description Shut down the GSP-930. Syntax :SYST:SHUT S et Query :SYSTem:TIME Description Sets the system time. Syntax :SYSTem:TIME <hour>,<minute>,<second> Query Syntax :SYSTem:TIME? Parameter/ <hour> <NR1> Return parameter <minute> <NR1> <second> <NR1> Example :SYST:TIME 19,26,30 S et :SYSTem:UPDate Description Updates the system with new firmware from files located on an external USB drive.
Page 180 GSP-930 User Manual Query Syntax :SYSTem:VERSion:SOFTware? Return parameter <string> T1.00_2011.11.21_13 Example :SYST:VERS:SOFT? > T1.00_2011.11.21_13...
Page 181 エラー! スタイルが定義されていません。 STATus Commands :STATus:OPERation:CONDition? ........177 :STATus:OPERation:ENABle ..........170 :STATus:OPERation[:EVENt]?..........170 :STATus:OPERation:NTRansition ........170 :STATus:OPERation:PTRansition ........171 :STATus:QUEStionable:CONDition? .......171 :STATus:QUEStionable:ENABle ........172 :STATus:QUEStionable[:EVENt]? ........172 :STATus:QUEStionable:NTRansition ......173 :STATus:QUEStionable:PTRansition ......173 :STATus:QUEStionable:FREQuency:CONDition?..174 :STATus:QUEStionable:FREQuency:ENABle ....174 :STATus:QUEStionable:FREQuency[:EVENt]?...174 :STATus:QUEStionable:FREQuency:NTRansition ..175 :STATus:QUEStionable:FREQuency:PTRansition ..175 :STATus:QUEStionable:ACPLimit:CONDition?...176 :STATus:QUEStionable:ACPLimit:ENABle ....176 :STATus:QUEStionable:ACPLimit[:EVENt]?....177 :STATus:QUEStionable:ACPLimit:NTRansition..177 :STATus:QUEStionable:ACPLimit:PTRansition..178 :STATus:PRESet ..............178 :STATus:OPERation:CONDition? Query Description Returns the bit weight of the Operation Status...
Page 182: Status:operation:enable
GSP-930 User Manual Return parameter Bit Weight Description Not used Sweeping Measuring Wait for Trigger 6~15 Not used Example :STAT:OPER:COND? >8 S et Query :STATus:OPERation:ENABle Description Sets or queries the Operation Status Event Enable register. Syntax :STATus:OPERation:ENABle <integer> Query Syntax...
Page 183: Status:operation:ntransition
エラー! スタイルが定義されていません。 Return parameter Bit Weight Description Not used Sweeping Measuring Wait for Trigger 6~15 Not used Example :STAT:OPER? >8 S et Query :STATus:OPERation:NTRansition Description Sets or queries the bit weight of the NTR filter for the Operation Status register. Syntax :STATus:OPERation:NTRansition <integer>...
Page 184: Status:questionable:condition
GSP-930 User Manual Return parameter Bit Weight Description Not used Sweeping Measuring Wait for Trigger 6~15 Not used Example :STAT:OPER:PTR 32 :STATus:QUEStionable:CONDition? Query Description Returns the bit weight of the Questionable Status Condition register. Query Syntax :STATus:QUEStionable:CONDition? Return parameter Bit Weight...
Page 185: Status:questionable[:Event]
エラー! スタイルが定義されていません。 Return parameter Bit Weight Description Frequency Uncal Limit Fail 1024 ACPLimit 2048 SEM Limit 4096 TOI Limit 8192 Pmet Limit Fail Example :STAT:QUES:ENAB 4096 :STATus:QUEStionable[:EVENt]? Query Description Returns the bit weight of the Questionable Status Event register. Reading this register will clear the event register.
Page 186: Status:questionable:ptransition
GSP-930 User Manual Return parameter Bit Weight Description Frequency Uncal Limit Fail 1024 ACPLimit 2048 SEM Limit 4096 TOI Limit 8192 Pmet Limit Fail Example :STAT:QUES:NTR 32 S et :STATus:QUEStionable:PTRansition Query Description Sets or queries the bit weight of the PTR filter for the Questionable Status register.
Page 187: Status:questionable:frequency:enable
エラー! スタイルが定義されていません。 Return parameter Bit Weight Description Invalid Span/BW Example :STAT:QUES:FREQ:COND? >16 S et :STATus:QUEStionable:FREQuency:ENABle Query Description Sets or queries the Questionable Status Frequency Event Enable register. Syntax :STATus:QUEStionable:FREQuency:ENABle <integer> Query Syntax :STATus:QUEStionable:FREQuency:ENABle? Return parameter Bit Weight Description Invalid Span/BW Example :STAT:QUES:FREQ:ENAB 16 :STATus:QUEStionable:FREQuency...
Page 188: Status:questionable:frequency:ptransition
GSP-930 User Manual Syntax :STATus:QUEStionable:FREQuency:NTRansition <integer> Query Syntax :STATus:QUEStionable:FREQuency:NTRansition? Return parameter Bit Weight Description Invalid Span/BW Example :STAT:QUES:FREQ:NTR 16 :STATus:QUEStionable:FREQuency: S et PTRansition Query Description Sets or queries the bit weight of the PTR filter for the Questionable Status Frequency register.
Page 189: Status:questionable:acplimit:enable
エラー! スタイルが定義されていません。 Return parameter Bit Weight Description Main channel high fail Main channel low fail Adj1 high fail Adj1 low fail Adj2 high fail Adj2 low fail Adj3 high fail Adj3 low fail Example :STAT:QUES:ACPL:COND? >1 S et Query :STATus:QUEStionable:ACPLimit:ENABle Description Sets or queries the Questionable Status ACP Limit Event Enable register.
Page 190: Status:questionable:acplimit:ntransition
GSP-930 User Manual Query Syntax :STATus:QUEStionable:ACPLimit[:EVENt]? Return parameter Bit Weight Description Main channel high fail Main channel low fail Adj1 high fail Adj1 low fail Adj2 high fail Adj2 low fail Adj3 high fail Adj3 low fail Example :STAT:ACPL:QUES? >3...
Page 191: Status:questionable:acplimit:ptransition
エラー! スタイルが定義されていません。 :STATus:QUEStionable:ACPLimit: S et PTRansition Query Description Sets or queries the bit weight of the PTR filter for the Questionable Status ACP Limit register. Syntax :STATus:QUEStionable:ACPLimit:PTRansition <integer> Query Syntax :STATus:QUEStionable:ACPLimit:PTRansition? Return parameter Bit Weight Description Main channel high fail Main channel low fail Adj1 high fail Adj1 low fail...
Page 192 GSP-930 User Manual Query Syntax :TRACe[:DATA]? <trace name> Parameter <trace name> [trace1|trace2|trace3|trace4|trace5] Return Parameter <data> Trace data in CSV format Example :TRACe[:DATA]? trace1 >-5.234e+01,-4.593e+01,-5.533e+01,-4.604e+01,- >5.353e+01,-4.557e+01,-5.280e+0 >1,-4.785e+01,-5.459e+01,-4.578e+01,………………...
Page 193 エラー! スタイルが定義されていません。 TRIGger Commands :TRIGger[:SEQuence]:DELay..........180 :TRIGger[:SEQuence]:DEMod:DELay......180 :TRIGger[:SEQuence]:DEMod:LEVel.......181 :TRIGger[:SEQuence]:DEMod:MODE......181 :TRIGger[:SEQuence]:DEMod:SLOPe ......181 :TRIGger[:SEQuence]:DEMod:SOURce ......182 :TRIGger[:SEQuence]:EXTernal:SLOPe ......182 :TRIGger[:SEQuence]:MODE ..........182 :TRIGger[:SEQuence]:PMETer:SOURce .......183 :TRIGger[:SEQuence]:SOURce.........183 :TRIGger[:SEQuence]:VIDeo:FREQuency.....183 :TRIGger[:SEQuence]:VIDeo:LEVel.........184 :TRIGger[:SEQuence]:VIDeo:SLOPe ......184 S et :TRIGger[:SEQuence]:DELay Query Description Sets the trigger delay time in seconds. Syntax :TRIGger[:SEQuence]:DELay <time> Query Syntax :TRIGger[:SEQuence]:DELay? Parameter/ <time>...
Page 194: Trigger[:Sequence]:Demod:level
GSP-930 User Manual Parameter/ <time> Delay time in seconds Return parameter Example :TRIG:DEM:DEL 1.0 ms S et Query :TRIGger[:SEQuence]:DEMod:LEVel Description Sets the trigger level for AM/FM demodulation. Syntax :TRIGger[:SEQuence]:DEMod:LEVel <integer> Query Syntax :TRIGger[:SEQuence]:DEMod:LEVel? Parameter/ <integer> Trigger level in % Return parameter...
Page 195: Trigger[:Sequence]:Demod:source
エラー! スタイルが定義されていません。 Parameter/ POSitive Positive slope Return parameter NEGative Negative slope Example :TRIG:DEM:SLOP POS S et :TRIGger[:SEQuence]:DEMod:SOURce Description Sets the triggering source for AM/FM demodulation Syntax :TRIGger[:SEQuence]:DEMod:SOURce {IMMediate|VIDeo} Parameter IMMediate Free run trigger VIDeo Trigger on the video signal level Example :TRIG:DEM:SOUR IMM S et...
Page 196: Trigger[:Sequence]:Pmeter:source
GSP-930 User Manual Parameter/ NORMal Normal trigger mode Return parameter SINGle Single trigger CONTinuous Continuous trigger Example :TRIG: MODE CONT S et :TRIGger[:SEQuence]:PMETer:SOURce Query Description Sets the triggering source to immediate or external Syntax :TRIGger[:SEQuence]:PMETer:SOURce {IMMediate|EXTernal} Query Syntax :TRIGger[:SEQuence]:PMETer:SOURce? Parameter/...
Page 197: Trigger[:Sequence]:Video:level
エラー! スタイルが定義されていません。 Query Syntax :TRIGger[:SEQuence]:VIDeo:FREQuency? Parameter/ <freq> <NR3> frequency in Hz. Return parameter Example :TRIG:VID:FREQ? >2.5e+6 S et Query :TRIGger[:SEQuence]:VIDeo:LEVel Description Sets the video trigger level. Syntax :TRIGger[:SEQuence]:VIDeo:LEVel <ampl> Query Syntax :TRIGger[:SEQuence]:VIDeo:LEVel? Parameter/ <ampl> <NR3> amplitude in dBm. Return parameter Example :TRIG:VID:LEV 10 S et...
Page 198: Unit Commands :Unit:pmeter:power
GSP-930 User Manual UNIT Commands :UNIT:PMETer:POWer............185 :UNIT:POWer................185 S et Query :UNIT:PMETer:POWer Description Sets the amplitude unit used for the Power Meter mode. Syntax :UNIT:PMETer:POWer {DBM|MW} Query Syntax :UNIT:PMETer:POWer? Parameter/ Decibels Return parameter MW Milliwatts Example :UNIT:PMET:POW DBM S et...
