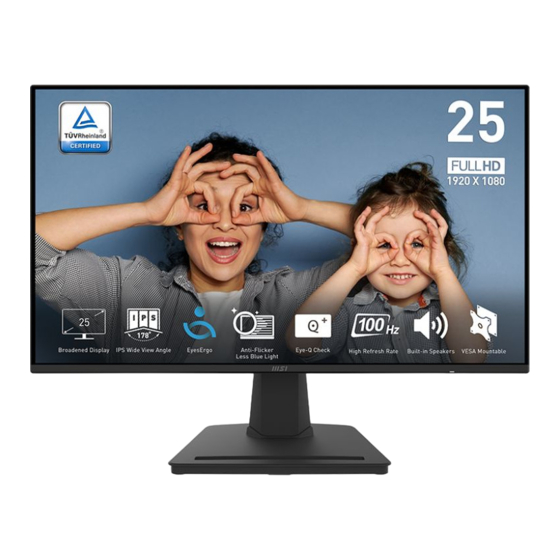

- Page 1 PRO Series LCD Monitor PRO MP252 (3PC4) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................7 OSD Setup ........................8 Navi Key ........................8 Hot Key ........................8 OSD Menus........................ -
Page 3: Getting Started
This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor PRO MP252 Documentation Quick Start Guide Accessories Stand... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective packaging. Align and gently push the stand bracket towards the monitor groove until it locks in place. 2. Align and gently push the cable organizer towards the stand until it locks in place. 3. -
Page 5: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. -
Page 6: Monitor Overview
Monitor Overview Navi Key Power Button Kensington Lock Cable Organizer Power Jack DisplayPort Supports 1920x1080@100Hz as specified in DisplayPort 1.4a. HDMI™ Connector Supports HDMI™ CEC, 1920x1080@100Hz as specified in HDMI™ 2.0b. Headphone Jack... -
Page 7: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Connect the power cord to the monitor power jack. (Figure A) 4. Plug the power cord into the electrical outlet. (Figure B) 5. -
Page 8: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/ Down/ Left/ Right: ∙... -
Page 9: Osd Menus
OSD Menus Professional 1st Level Menu 2nd/3rd Level Menu Description Mode ∙ Use Up or Down Button to select and preview mode effects. User ∙ Press the Middle Button to confirm and apply your mode type. Anti-Blue Movie Office Black-White Response Time Normal ∙... - Page 10 1st Level Menu 2nd/3rd Level Menu Description Refresh Rate Location Left Top ∙ Location is adjustable in OSD Menu. Press the Middle Button to confirm and apply your Right Top Refresh Rate Location. ∙ This monitor follows and works at the Left Bottom Operating System’s preset Screen Refresh Right Bottom...
-
Page 11: Image
1st Level Menu 2nd/3rd Level Menu Description Screen Assistance None ∙ Users can adjust Screen Assistance in any mode. Screen Size Auto ∙ Users can adjust Screen Size in any mode, any resolution and any screen refresh rate. 16:9 Adaptive-Sync ∙... -
Page 12: Input Source
1st Level Menu 2nd/3rd Level Menu Description HDCR ∙ HDCR enhances image quality by increasing the contrast of images. ∙ Activating HDCR will affect: Affected Function Function Status » Brightness Unable to select » MPRT Set to OFF Color Temperature Cool ∙... -
Page 13: Setting
Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 ∙ Users have to press the Middle Button to confirm and apply the Language setting. English ∙ Language is an independent setting. Users’ own language setting will override the factory default. When Français users set Reset to Yes, Language will not be changed. - Page 14 1st Level Menu 2nd Level Menu Description HDMI™ CEC ∙ HDMI™ CEC (Consumer Electronics Control) supports Sony PlayStation®, Nintendo® Switch™, Xbox Series X|S consoles and various audio-visual devices that are CEC-capable. ∙ If HDMI™ CEC is set to ON: • The monitor will automatically power on when the CEC device is turned on.
-
Page 15: Specifications
Specifications Monitor PRO MP252 Size 24.5 inch Curvature Flat Panel Type 1920 x 1080 Resolution Aspect Ratio 16:9 Brightness (nits) Contrast Ratio 1300 : 1 Refresh Rate 100Hz Response Time ∙ 4ms (GTG) ∙ 1ms (MPRT) ∙ HDMI™ Connector x1 ∙... - Page 16 Monitor PRO MP252 Dimension (W x H x D) 557 x 417 x 207 mm Weight 3.3 Kg Gross 4.9 Kg Environment Operating ∙ Temperature: 0℃ ~ 40℃ ∙ Humidity: 20% ~ 90%, non-condensing ∙ Altitude: 0 ~ 5000m Storage ∙...
-
Page 17: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. Standard Resolution HDMI™ 640x480 @60Hz @67Hz @72Hz @75Hz Dos-Mode 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900... -
Page 18: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 19: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 20 ∙ If any of the following situations arises, get the device checked by service personnel: • The power cord or plug is damaged. • Liquid has penetrated into the device. • The device has been exposed to moisture. • The device does not work well or you can not get it working according to the User Guide.
-
Page 21: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 22: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 23 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 24 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
